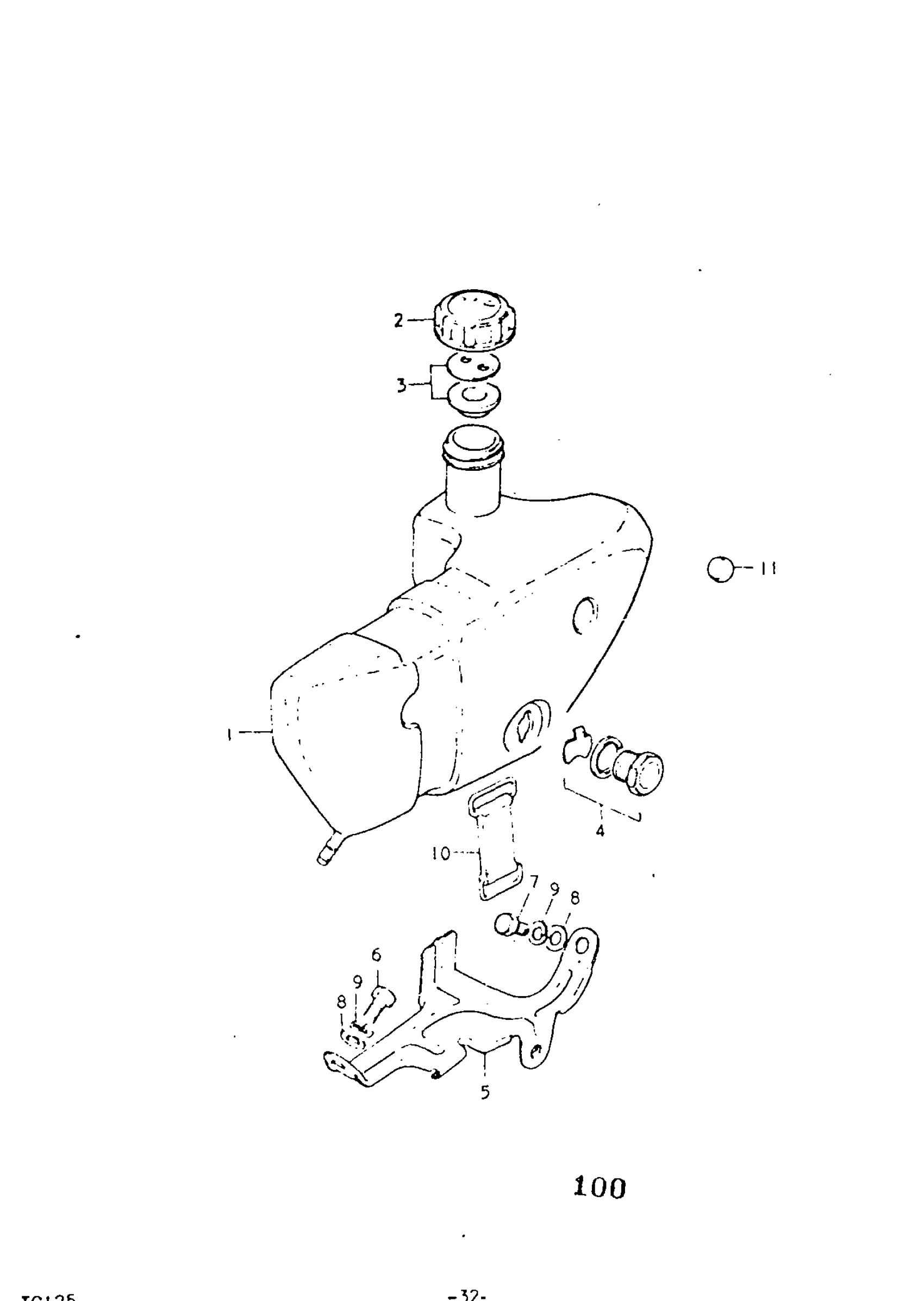

Suzuki TC125 (1977) OIL TANK Diagram

#

Description
Price

1

TANK, OIL | K,L,M

44611-28002

Unavailable

1

TANK, OIL | A,B

44611-28610

Unavailable

2

CAP, OIL TANK | K,L,M,A; TO 44651-05001 This part replaces 44651-05000.

44651-05003

$5.05

2

CAP, OIL TANK | B This part replaces 44651-05001.

44651-05003

$5.05

3

GASKET SET | K,L,M,A; FROM 44660-33808 This part replaces 44600-35820.

44600-30833

$5.42

3

GASKET SET | B; FROM 44600-35820 This part replaces 44600-35821.

44600-30833

$5.42

4

OIL LEVEL INSPE | K; TO 44600-31830 This part replaces 44640-31807.

44600-31832

$11.07

4

OIL LEVEL INSPE | L,M,A,B This part replaces 44600-31830.

44600-31832

$11.07

5

HOLDER, OIL TANK | K,L,M; TO 44820-28001 This part replaces 44820-28000.

44820-28001

Unavailable

5

HOLDER, OIL TANK | A,B

44820-28001

Unavailable

6

BOLT, CANISTER | K,L,M,A This part replaces 01112-06168.

01500-06167

$1.97

6

BOLT | B This part replaces 01112-06128.

01500-06127

$1.97

7

BOLT This part replaces 01112-06108.

01500-06107

$2.06

8

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

BAND, OIL TANK

09462-00043

$4.11

11

CUSHION | K,L,M,A This part replaces 09321-06013.

09321-06036

$1.52
