1977 Suzuki TC125 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1977 Suzuki TC125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

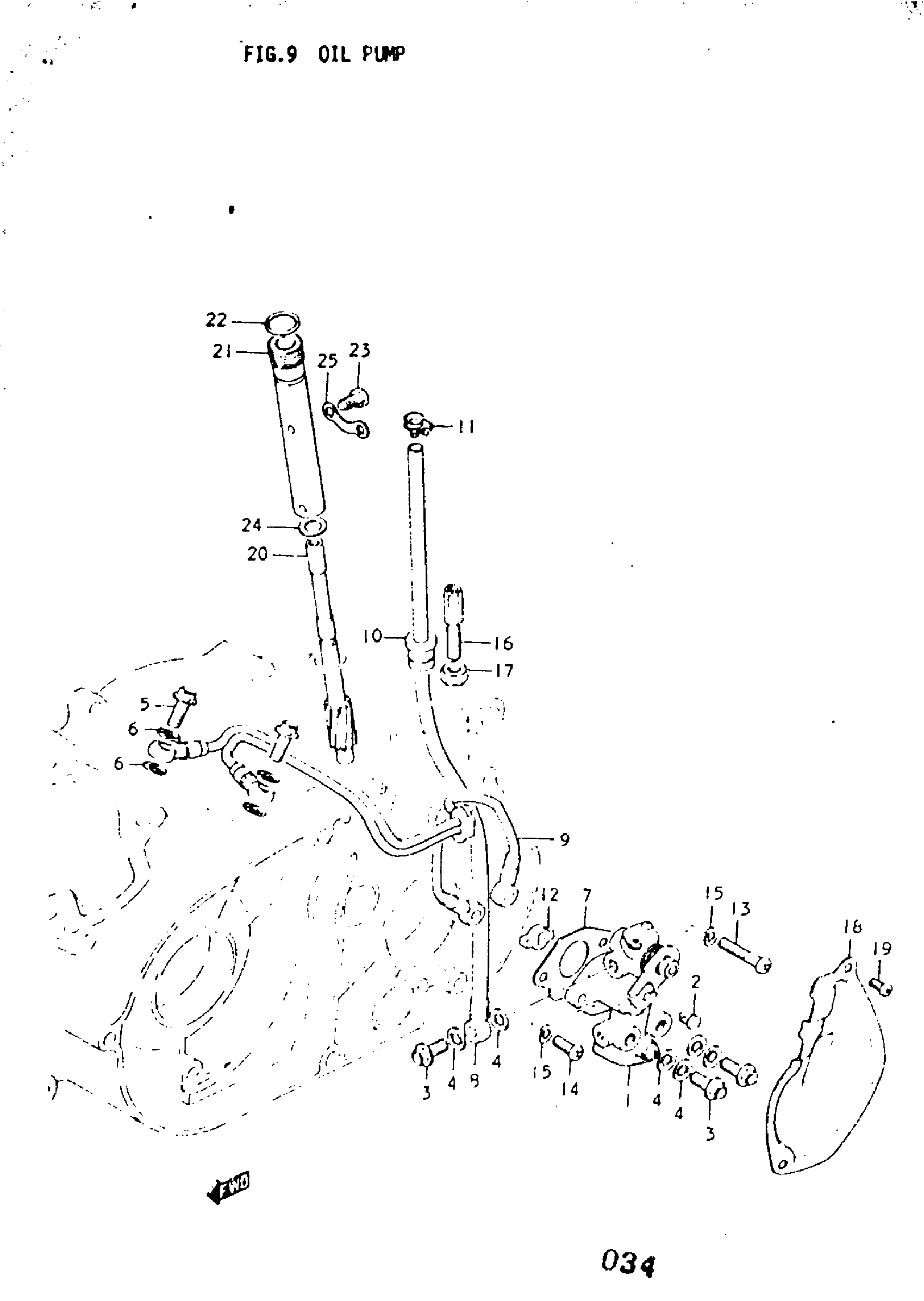

1977 Suzuki TC125 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP SET, OIL | K; FROM 16000-28804

16100-28830

—
Out of stock

1

PUMP ASSY, OIL | L,M,A,B; FROM 16100-28830

16100-28010

1
Out of stock

2

TERMINAL, CABLE | K,L,M,A This part replaces 16292-03110.

16292-03112

1
Out of stock

2

TERMINAL, CABLE | B This part replaces 16292-03111.

16292-03112

1
Out of stock

3

UNION BOLT

09360-06003

3
Out of stock

4

GASKET | K,L,M; 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

6
Out of stock

4

GASKET, UNION BOLT | A,B

09168-06004

6
Out of stock

5

UNION BOLT | FROM 16760-19001

09360-06003

2
Out of stock

6

GASKET, UNION BOLT | K,L,M

09168-06003

—
Out of stock

6

GASKET, UNION BOLT | A,B

09168-06004

4
Out of stock

7

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

1
Out of stock

8

HOSE, OIL (L:512!97) This part replaces 16810-35030.

16810-07520

1
Out of stock

9

HOSE, OIL OUTLET

16820-28030

1
Out of stock

10

GROMMET, INLET HOSE

09305-09002

1
Out of stock

11

OIL HOSE CLAMP This part replaces 09400-10301.

09400-10302

1
Out of stock

12

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

1
Out of stock

13

1

$2.23

In stock

14

SCREW This part replaces 02112-05168.

02112-05167

1
Out of stock

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

16

BOLT, CABLE ADJUSTER

09119-08014

1
Out of stock

17

1

$1.93

In stock

18

COVER, OIL PUMP | K; TO 11380-27300

11385-25001

—
Out of stock

18

COVER, OIL PUMP | L,M,A,B

11380-27300

1
Out of stock

19

SCREW This part replaces 02112-06108.

02112-06107

2
Out of stock

20

GEAR, TACHOMETER DRIVEN | NT:10

26431-28001

1
Out of stock

21

SLEEVE,TACHOMET This part replaces 26441-28001.

26441-28002

1
Out of stock

22

O RING

09280-10001

1
Out of stock

23

BOLT, SLEEVE

09135-06009

1
Out of stock

24

WASHER, GEAR | 8x13.7x1

09160-08003

1
Out of stock

25

CLAMP, BATTERY EXHAUST PIPE | KL,M,A,B

09404-07704

2
Out of stock
