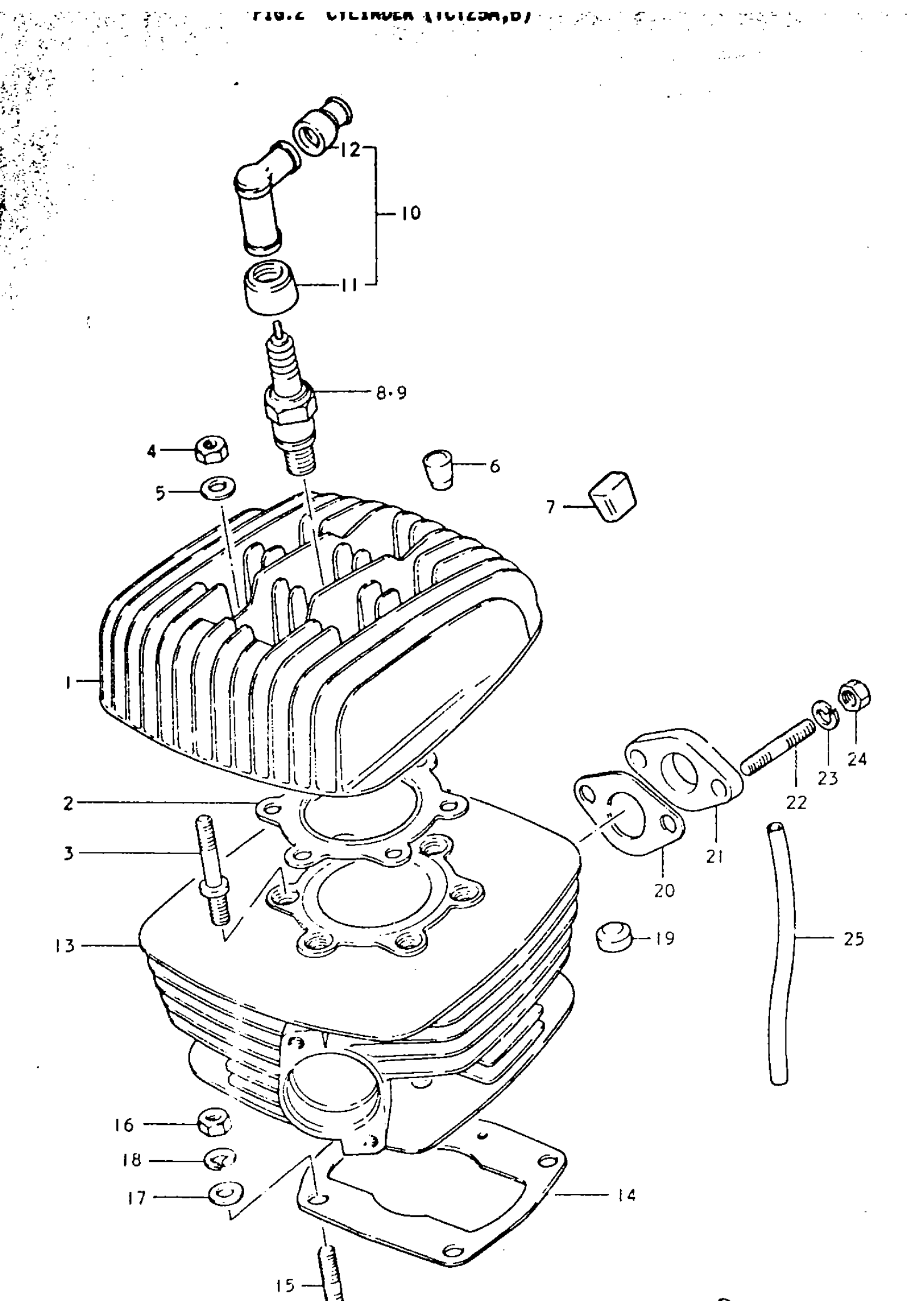

Suzuki TC125 (1977) CYLINDER (TC125A Diagram

#

Description
Price

1

CYLINDER HEAD

11111-28402

Unavailable

2

GASKET CYLINDER This part replaces 11141-28382.

11141-28390

Unavailable

3

STUD BOLT

09108-08018

$2.92

4

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.12

5

WASHER This part replaces 08322-21088.

08322-01087

$1.86

6

PAD, CYLINDER HEAD | A; TO 11252-25000 This part replaces 11151-25000.

11252-25000

$4.26

7

RUBBER PAD, CYLINDER HEAD | B

11252-25000

$4.26

8

SPARK PLUG | A; NGK. B7HS TO 09482-00082 This part replaces 09482-00050.

09482-00082

$2.80

8

SPARK PLUG B8HS | B; NGK, B8HS This part replaces 09482-00057.

09482-00198

$2.80

9

SPARK PLUG | A; ND, W22FS TO 09482-00083 This part replaces 09482-00052.

09482-00082

$2.80

9

SPARK PLUG | B; ND. W24FS

09482-00058

Unavailable

10

CAP SET,SPARK P | Includes Item(s) 11 - 12 This part replaces 33500-69810.

33500-69811

Unavailable

11

SEAL, SPARK PLUG

33541-69010

$4.11

12

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97

13

CYLINDER

11210-28002

Unavailable

14

GASKET,CYLINDER This part replaces 11241-28600.

11241-28601

Unavailable

15

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.01

16

NUT This part replaces 08312-11088.

08310-00087

$1.83

17

WASHER This part replaces 08322-11088.

08322-01087

$1.86

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

19

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.67

20

GASKET, CARBURETOR | A,B

13125-28001

$4.47

21

INSULATOR, CARBURETOR

13129-28001

Unavailable

22

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$2.87

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

24

NUT This part replaces 08312-11088.

08310-00087

$1.83

25

HOSE | 3x5x140 This part replaces 09344-03014.

09351-30001-600

$3.22
