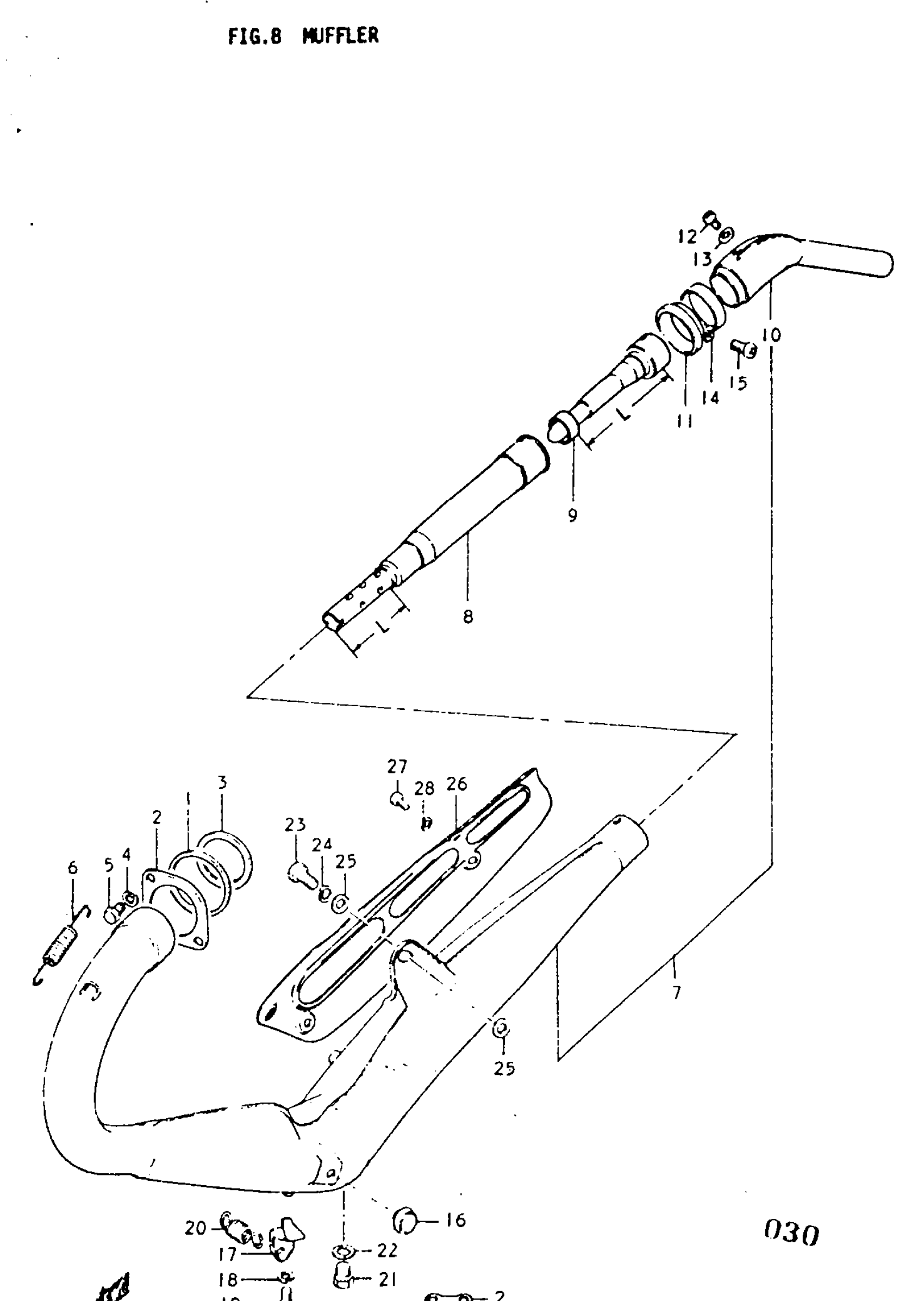

Suzuki TC125 (1977) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-28080

$10.11

2

CLAMP, EXHAUST PIPE

14182-28000

$16.49

3

CUSHION,EXH PIP This part replaces 14184-28010.

14184-28011

$4.62

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT This part replaces 01112-06258.

01500-06257

$1.97

6

SPRING, EXHAUST PIPE

09443-11002

$3.10

7

MUFFLER ASSY | K; TO 14301-28602

14301-28601

Unavailable

7

NO DESCRIPTION AVAILABLE | L,M,A,B; Includes Item(s) 8 - 15 This part replaces 14301-28602.

14301-28602-H01

Unavailable

8

ARRESTOR, SPARK | K; L:121

14810-28601

Unavailable

8

ARRESTOR, SPARK | L:80

14810-28602

Unavailable

9

TUBE, CLEAN OUT | K; L:115

14850-28601

Unavailable

9

TUBE, CLEAN OUT | L,M,A,B; L:156

14850-28640

Unavailable

10

PIPE, MUFFLER TAIL

14630-28001

Unavailable

11

GASKET, TAIL PIPE

14634-28000

Unavailable

12

SCREW This part replaces 02111-05127.

02112-05127

$1.97

13

GASKET, BAFFLE PIPE

09168-06006

Unavailable

14

CLAMP, TAIL PIPE

09402-52306

$4.91

15

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

16

CUSHION, MUFFLER STOPPER

09321-10002

$2.22

17

BRACKET, STOPPER

14476-28000

Unavailable

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

BOLT This part replaces 01112-06108.

01500-06107

$2.06

20

SPRING, STOPPER

09443-14002

$2.12

21

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

22

GASKET, DRAIN PLUG | 10x14.2x2

09168-10002

$2.13

23

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

WASHER This part replaces 08322-21088.

08322-01087

$2.13

26

COVER, MUFFLER | K,L,M; TO 14781-28610 This part replaces 14781-28600.

14781-28610

Unavailable

26

COVER, MUFFLER | A,B

14781-28610

Unavailable

27

SCREW This part replaces 02111-06087.

02112-06087

$1.49

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

CLAMP | L,M,A,B

09404-07704

Unavailable
