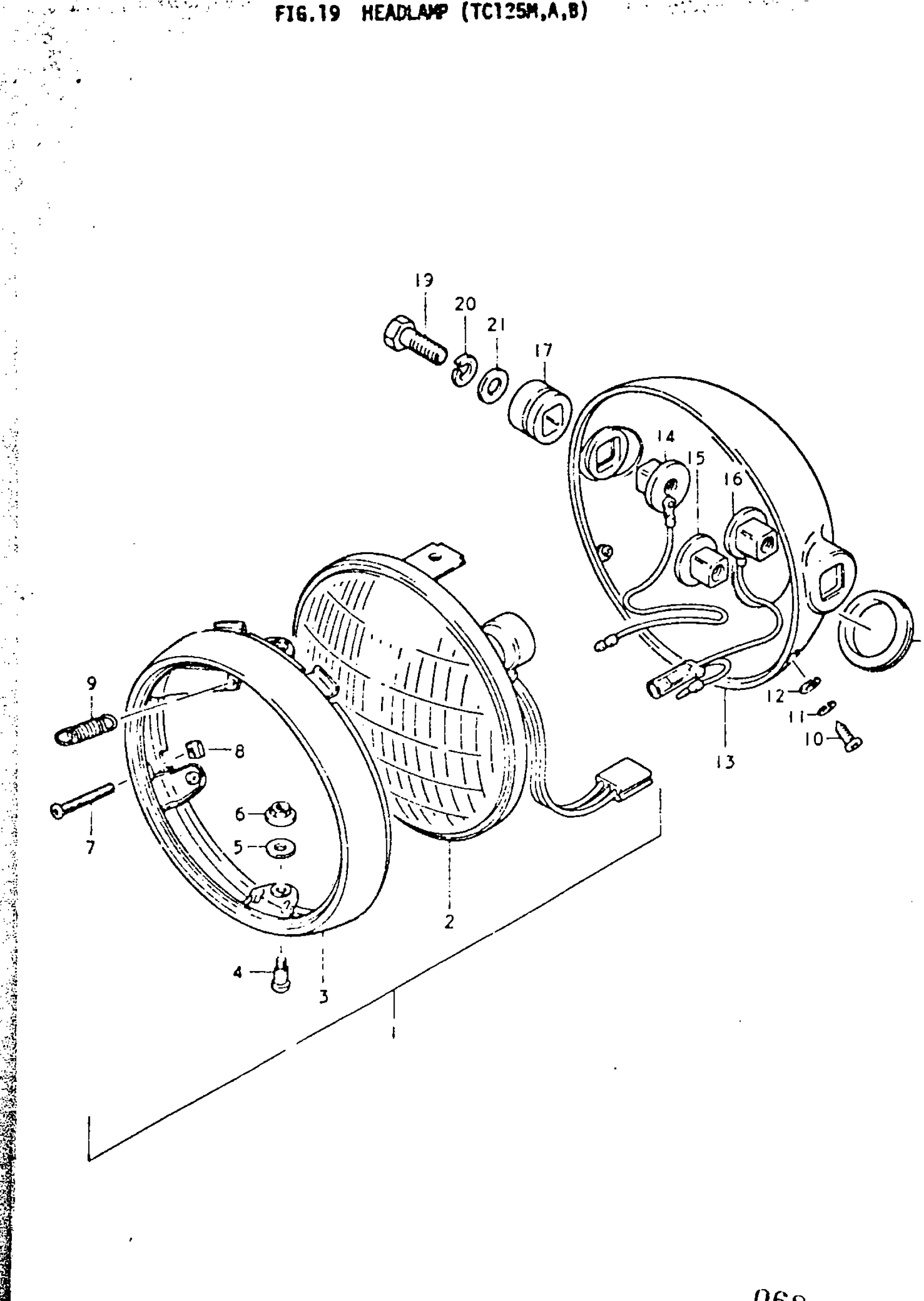

Suzuki TC125 (1977) HEADLAMP (TC125M Diagram

#

Description
Price

1

HEADLAMP ASSY | M

35100-25611

Unavailable

1

HEADLAMP ASSY | A,B; 6V, 30/30W; Includes Item(s) 2 - 9

35100-25612

Unavailable

2

UNIT | M

35121-25611

Unavailable

2

UNIT,HEADLAMP | A,B This part replaces 35121-25612.

35121-256V0

Unavailable

3

RIM

35111-25611

Unavailable

4

SCREW,HEAD LAMP This part replaces 35136-25611.

35136-35400

$4.58

5

SPACER

35133-25611

Unavailable

6

NUT This part replaces 35135-25611.

08316-1005A

$2.19

7

SCREW This part replaces 35151-27620.

35151-06020

Unavailable

8

NUT

35155-01321

Unavailable

9

SPRING

35154-05610

Unavailable

10

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

WASHER This part replaces 08322-21048.

08322-01047

$1.86

13

NO DESCRIPTION AVAILABLE | M This part replaces 51810-26000-126.

51810-26000-13L

Unavailable

13

NO DESCRIPTION AVAILABLE | A,B This part replaces 51810-26000-291.

51810-26000-13L

Unavailable

14

SPACER LH | M This part replaces 51821-29001.

51822-29001

Unavailable

15

SPACER RH | AB

51821-29002

Unavailable

16

SPACER LH | B

51822-29001

Unavailable

17

CUSHION

51827-29001

Unavailable

18

GROMMET | M,A

51845-31030

Unavailable

18

GROMMET | B; FROM 51845-31030

51845-31031

$4.52

19

BOLT This part replaces 01221-08257.

01204-08257

$1.96

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER This part replaces 08322-11086.

08322-0108A

$1.92
