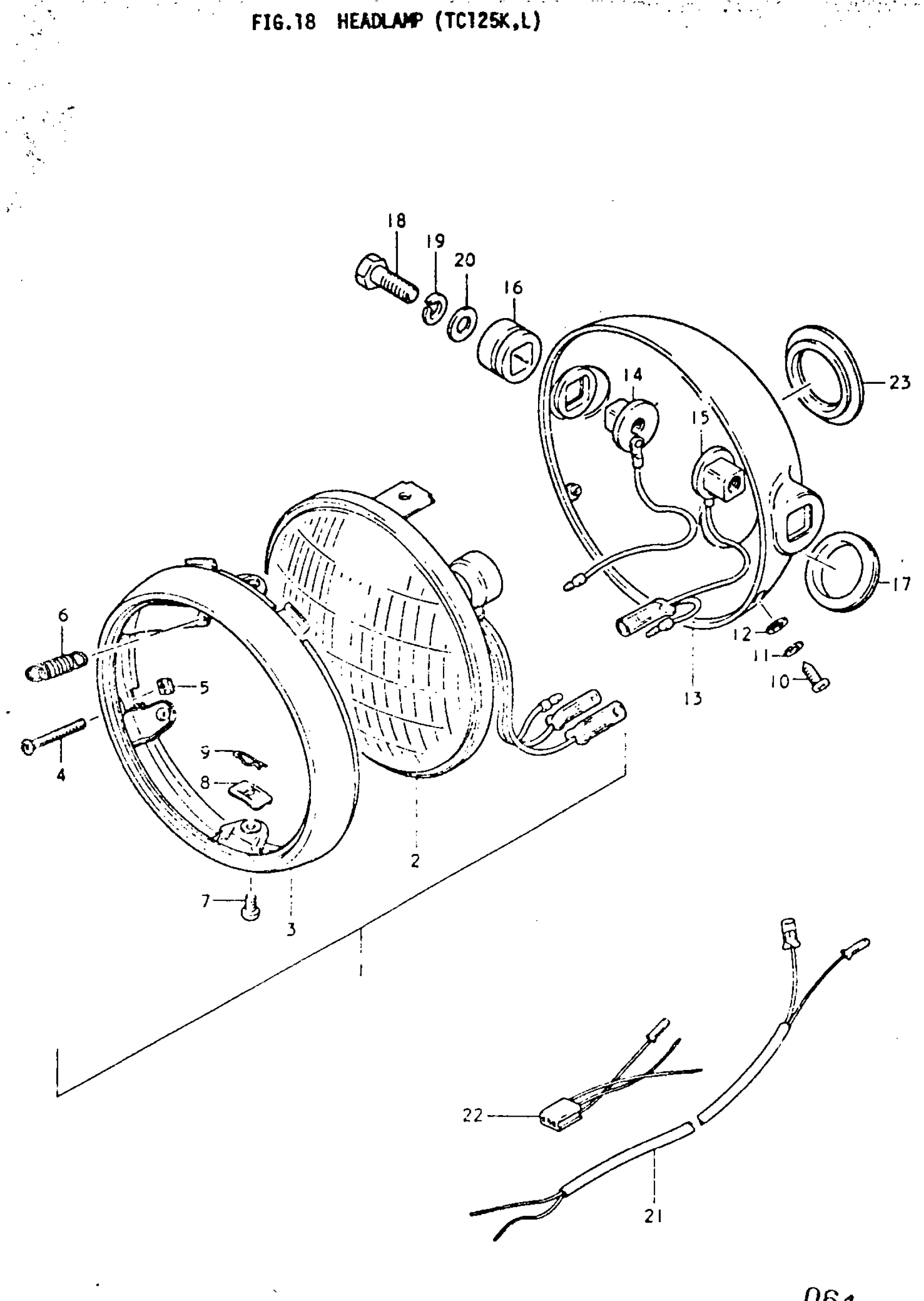

Suzuki TC125 (1977) HEADLAMP (TC125K Diagram

#

Description
Price

1

HEADLAMP ASSY | TO 35100-25611; Includes Item(s) 2 - 9

35100-28610

Unavailable

2

UNIT, HEADLAMP | 6V, 25/25W

35121-28610

Unavailable

3

RIM, HEADLAMP | K

35111-27620

Unavailable

3

RIM, HEADLAMP | L; FROM 35111-27620

35111-28610

Unavailable

4

SCREW This part replaces 35151-27620.

35151-06020

Unavailable

5

NUT, HEADLAMP ADJUSTING

35155-01321

Unavailable

6

SPRING, HEADLAMP ADJUSTER

35154-05610

Unavailable

7

SCREW, UNIT HOLDER

35136-19610

Unavailable

8

NUT This part replaces 35135-12610.

35155-48510

$2.28

9

SPRING, UNIT CLAMP

35137-27620

Unavailable

10

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

12

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

WASHER | K,L This part replaces 08322-21048.

08322-01047

$1.86

13

HOUSING, HEADLAMP

51810-26600

Unavailable

14

SPACER, HEADLAMP HOUSING RH | K; TO 51821-29001 WITH 51827-29001

51821-29000

Unavailable

14

SPACER LH | L This part replaces 51821-29001.

51822-29001

Unavailable

15

SPACER, HEADLAMP HOUSING LH | K; TO 51822-29001 WITH 51827-29001

51822-29000

Unavailable

15

SPACER, HEADLAMP HOUSING LH | L

51822-29001

Unavailable

16

CUSHION, HEADLAMP HOUSING | K; WITH 51821-29001 AND 51822-29001

51827-29000

Unavailable

16

CUSHION, HEADLAMP HOUSING | L

51827-29001

Unavailable

17

GROMMET | K; FROM 51845-31030L; FROM 51845-31030

51845-31031

$4.52

18

BOLT This part replaces 01122-08258.

01500-08257

$2.50

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

LEAD WIRE, HEADLAMP | K

36852-26000

Unavailable

22

LEAD WIRE, HEADLAMP | L

36852-27650

Unavailable

23

CAP | K

09250-40001

Unavailable
