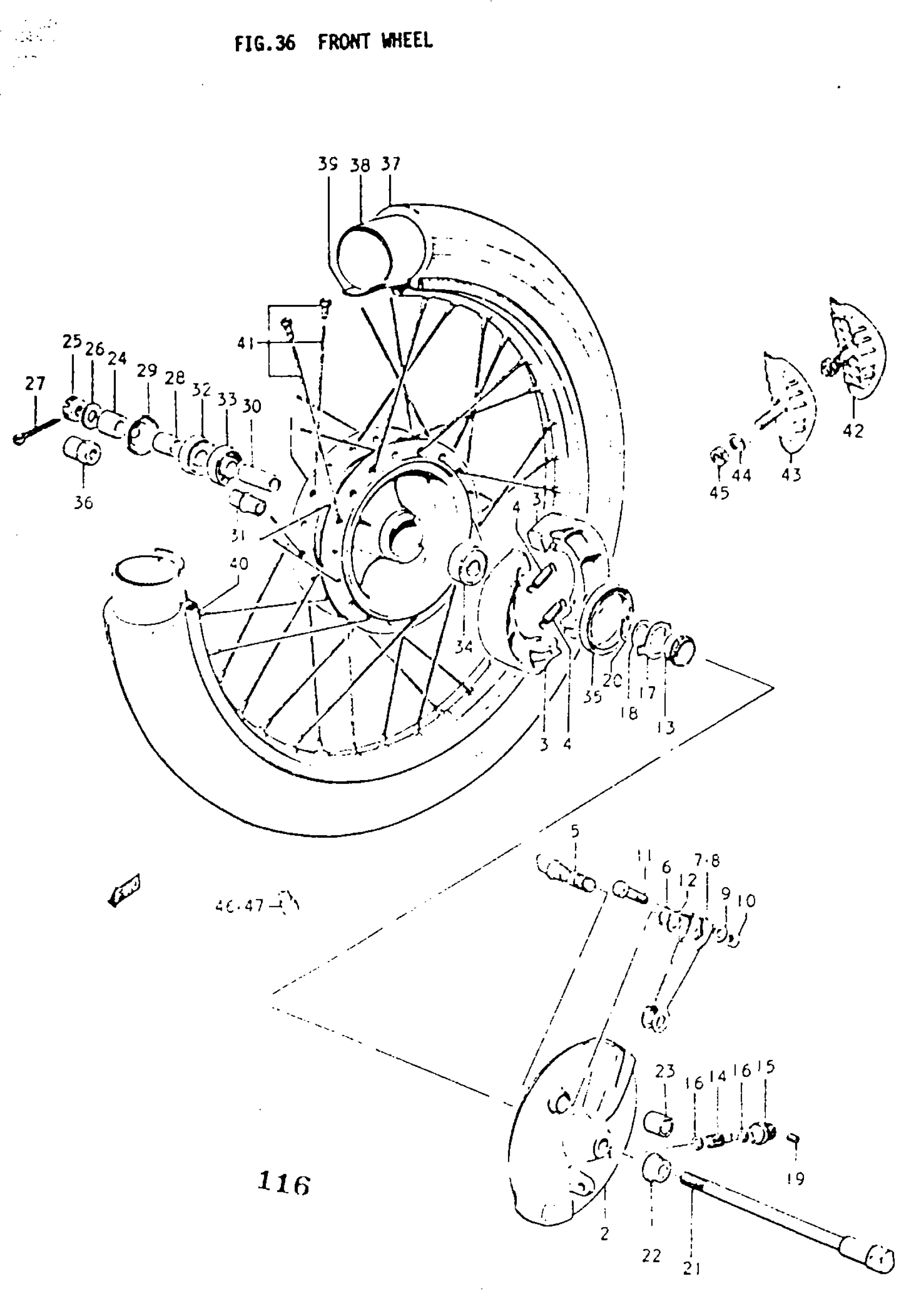

Suzuki TC125 (1977) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K This part replaces 54110-28001.

54110-28003

Unavailable

1

HUB, FRONT WHEE | L,M,A This part replaces 54110-07001.

54110-07003

Unavailable

1

NO DESCRIPTION AVAILABLE | B; BLACK This part replaces 54110-16501.

54110-16502

Unavailable

2

PANEL, HUB | K

54210-28002

Unavailable

2

PANEL, HUB | L,M,A

54210-28400

Unavailable

2

PANEL, HUB | B; BLACK

54210-28620

Unavailable

3

SHOE/SPRING SET | K; TO 54410-01005 This part replaces 54410-01004.

54400-35860

$36.32

3

SHOE SET, BRAKE | L; TO 54410-07002 This part replaces 54410-07001.

54401-07810

Unavailable

3

SHOE SET, BRAKE | M,A,B This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | K This part replaces 54441-01001.

54441-01002

$18.80

5

CAM, BRAKE | L,M

54441-07001

Unavailable

5

CAM, BRAKE | A,B; FROM 54441-01001

54441-01002

$18.80

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM | K; FROM 54451-03602

54451-03002

$16.87

8

LEVER, BRAKE CAM | L,M,A,B

54451-28400

Unavailable

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

12

WASHER, DUST SEAL

09160-12011

$1.54

13

NO DESCRIPTION AVAILABLE | K,L,M,A; NT:29 TO 54611-28001 This part replaces 54611-28000.

54611-28002

Unavailable

13

NO DESCRIPTION AVAILABLE | B; NT:28 This part replaces 54611-28001.

54611-28002

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 54621-28000.

54621-28001

Unavailable

15

BUSHING, PINION OUTER

54632-01001

$12.80

16

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

17

DRIVER, GEAR

54661-07000

$4.52

18

WASHER, GEAR THRUST

09160-18002

$2.38

19

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

20

CIRCLIP

08331-11189

Unavailable

21

AXLE, FRONT | K

54711-28000

Unavailable

21

AXLE, FRONT | L

54711-28401

Unavailable

21

AXLE, FRONT | L; TO 54711-28303 This part replaces 54711-28402.

54711-28303

Unavailable

21

AXLE, FRONT | M,A,B

54711-28303

Unavailable

22

SPACER, FRONT AXLE LH | L; WITH 54711-28402

54751-25500

Unavailable

23

SPACER | M,A,B; WITH 54711-28303

09180-12062

Unavailable

24

SPACER | L,M,A,B

09180-12061

Unavailable

25

NUT | L,M,A,B This part replaces 08314-31128.

08314-3112A

$2.41

26

WASHER | LM,A,B This part replaces 08322-21128.

08322-01127

$1.84

27

PIN | L,M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

28

SPACER, FRONT AXLE RH

09180-12040

$8.35

29

COVER, DUST SEAL | K; TO 54892-28001

54892-28000

Unavailable

29

COVER, DUST SEAL | L,M,A,B

54892-28400

Unavailable

30

SPACER (12.5X19X52) | K This part replaces 09180-12041.

09180-12144

$10.30

31

SPACER, BEARING | L,M,A,B

54730-07000

Unavailable

32

SEAL,OIL (18X32X7) | K This part replaces 09284-18002.

09285-18002

$5.39

32

SEAL,OIL(17X38X | L,M,A,B This part replaces 09284-18001.

09284-18006

$5.10

33

BEARING | K This part replaces 08113-62010.

08113-6201B

$10.15

33

BEARING | L,M,A,B

08113-63010

$19.57

34

BEARING | K This part replaces 08143-62010.

08143-6201B

$10.80

34

B1 12X37X12 BEA | L,M,A,B This part replaces 08143-63010.

08143-6301B

$19.20

35

OIL SEAL | K This part replaces 09285-43001.

09283-43004

$14.03

35

SEAL | L,M,A,B This part replaces 09285-48001.

09285-48002

$6.10

36

NUT, FRONT AXLE | M

54721-36000

Unavailable

37

NO DESCRIPTION AVAILABLE | K; 2.75-19 KNOBBY This part replaces 55100-28211.

55100-29520

Unavailable

37

TIRE, FRONT | L,M,A,B; 2.75-19 SEML-KNOBBY

55100-25600

Unavailable

38

TUBE, INNER | K; 2.75-19

55200-29010

Unavailable

38

TUBE, INNER | L,M,A This part replaces 55200-28030.

55200-29010

Unavailable

39

PROTECTOR, WHEEL INNER TUBE FRONT | K,B This part replaces 55261-29010.

55261-15020

$3.15

39

PROTECTOR, INNER TUBE | L,M,A

55261-28030

Unavailable

40

RIM, FRONT WHEEL | K

55311-29600

Unavailable

40

RIM, FRONT WHEEL | L

55311-29601

Unavailable

40

RIM, FRONT WHEEL | M,A,B

55311-17022

Unavailable

41

NO DESCRIPTION AVAILABLE | K This part replaces 55300-28806.

55320-28020

Unavailable

41

SPOKE SET, FRONT | L,M,A,B

55300-28840

Unavailable

42

STOPPER, BEAD | K,L

65270-28600

$54.75

43

STOPPER, BEAD | L

65270-28610

Unavailable

44

WASHER | K,L This part replaces 08322-11088.

08322-01087

$2.13

45

NUT | K,L This part replaces 08312-11088.

08310-00087

$2.13

46

BALANCER WHEEL (30G) | K,L; 30G This part replaces 55412-11000.

55413-41F00

$7.50

47

BALANCER, WHEEL | K,L; 50G

55411-30000

Unavailable
