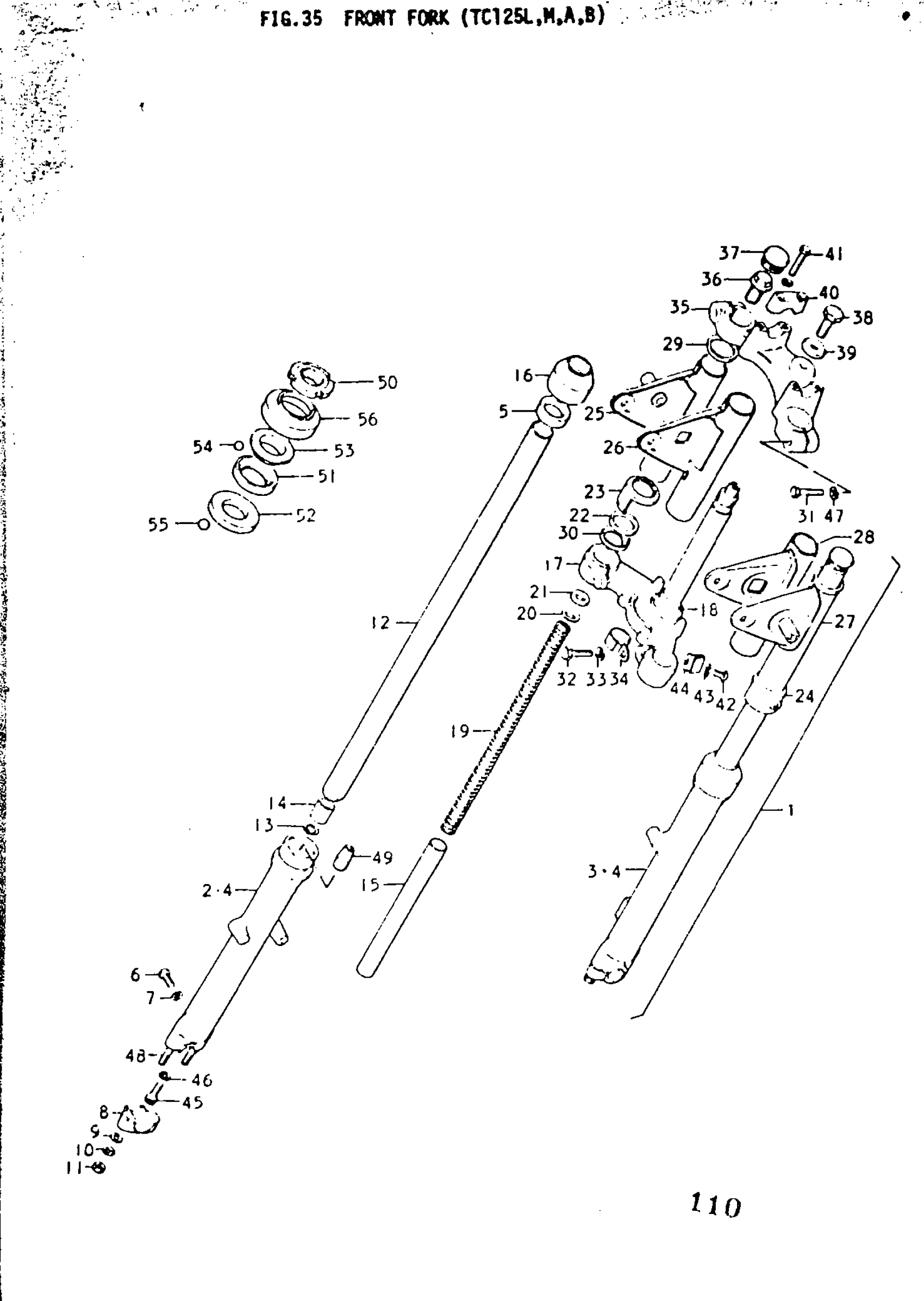

Suzuki TC125 (1977) FRONT FORK (TC125L Diagram

FORK ASSY, FRONT | L,M; FROM 51100-264@@@

51100-28410-126

Unavailable

NO DESCRIPTION AVAILABLE | A; FROM 51100-28410-126 This part replaces 51100-28411-291.

51106-28411

Unavailable

FORK ASSY, FRONT | B; Includes Item(s) 2 - 49

51100-28620-291

Unavailable

TUBE, OUTER RH | L; TO 51140-36011

51130-36010

Unavailable

TUBE, OUTER LH | L; TO 51140-36011

51140-36010

Unavailable

TUBE, OUTER | M,A,B

51140-36011

Unavailable

OIL SEAL

51153-08011

Unavailable

SCREW This part replaces 02111-04087.

02112-04087

$1.49

GASKET

51183-03010

$2.07

HOLDER, AXLE | L

51132-16510

Unavailable

HOLDER, AXLE | M,A,B; WITH 51140-36011

51132-16511

Unavailable

WASHER This part replaces 08322-21088.

08322-01087

$2.13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

TUBE, INNER

51111-28410

Unavailable

SNAP RING | A; TO 51118-28312

51118-28311

Unavailable

SNAP RING | L,M,B; FROM 51118-28310

51118-28312

Unavailable

PISTON | L,M

51112-28310

Unavailable

PISTON | A,B

51112-28311

Unavailable

CYLINDER | L,M

51146-28310

Unavailable

CYLINDER | A,B

51146-28311

Unavailable

DUST SEAL

51173-25010

$7.19

STEERING STEM | L; TO 51410-28013

51410-28012

Unavailable

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 51410-28013.

51410-36260

Unavailable

RACE, OUTER | L,M,A

51621-33001

$16.25

SPRING

51171-28410

Unavailable

GUIDE, SPRING | L,M

51172-28010

Unavailable

WASHER

51186-29620

Unavailable

CUSHION | L

51553-07110

Unavailable

CUSHION, FORK COVER LOWER | M,A,B This part replaces 51553-25010.

51553-25210

$4.68

COVER, STEERING STEM RH

51554-28010

Unavailable

COVER, STEERING STEM LH

51557-28010

Unavailable

COVER, FORK RH | L; CHROME-PLATED

51530-29621

Unavailable

NO DESCRIPTION AVAILABLE | M This part replaces 51530-29630-126.

51500-29820-126

Unavailable

NO DESCRIPTION AVAILABLE | A This part replaces 51530-29630-291.

51500-29820-126

Unavailable

COVER, FORK RH | B

51530-28620-291

Unavailable

COVER, FORK LH | L; CHROME-PLATED

51540-29621

Unavailable

NO DESCRIPTION AVAILABLE | M This part replaces 51540-29630-126.

51500-29820-126

Unavailable

NO DESCRIPTION AVAILABLE | A This part replaces 51540-29630-291.

51500-29820-126

Unavailable

COVER, FORK LH | B

51540-28620-291

Unavailable

GUIDE, COVER

51551-20210

Unavailable

GUIDE, COVER

51558-28010

Unavailable

BOLT | L

51451-15111

Unavailable

BOLT | M,A,B This part replaces 51451-15113.

01104-10388

$2.72

BOLT | L; TO 51451-28012

51451-28011

Unavailable

BOLT | M,A,B; FROM 41451-28011

51451-28012

Unavailable

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

CLIP

51455-36010

Unavailable

HEAD, STEERING STEM | L

51311-28011-019

Unavailable

HEAD, STEERING STEM | M,A,B This part replaces 51311-28210-019.

51311-29320-291

Unavailable

CAP

51180-29010

Unavailable

CAP

51189-29010

Unavailable

BOLT This part replaces 51351-20010.

51351-29400

$31.22

WASHER | L,M

51356-22011

Unavailable

WASHER | A,B

51356-22012

$6.80

CLAMP, HANDLEBAR UPPER This part replaces 56211-27210-019.

56211-29320-291

$15.51

BOLT This part replaces 01221-08357.

01204-08357

$2.09

SCREW This part replaces 02112-06108.

02112-06107

$1.49

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

CLIP

51453-30011

Unavailable

BOLT

51147-36010

Unavailable

GASKET | L

51148-36010

Unavailable

O RING | M,A,B; FROM 51148-36010 This part replaces 51148-34010.

51148-36011

$3.56

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

STUD BOLT (L:30) This part replaces 51137-31010.

09108-08142

$3.18

PIECE, OIL LOCK | A,B

51195-28311

Unavailable

NUT, STEERING STEM

51631-28000

$17.37

RACE,STEERING INNER UPPER

51611-20002

$11.95

RACE, STEERING INNER LOWER

51611-33002

$13.81

RACE,STEERING OUTER UPPER

51621-28000

$11.95

STEEL BALL

06111-06003

$1.49

STEEL BALL

06111-08003

$1.49

DUST SEAL,STEERING UPPER

51643-25001

$4.43
