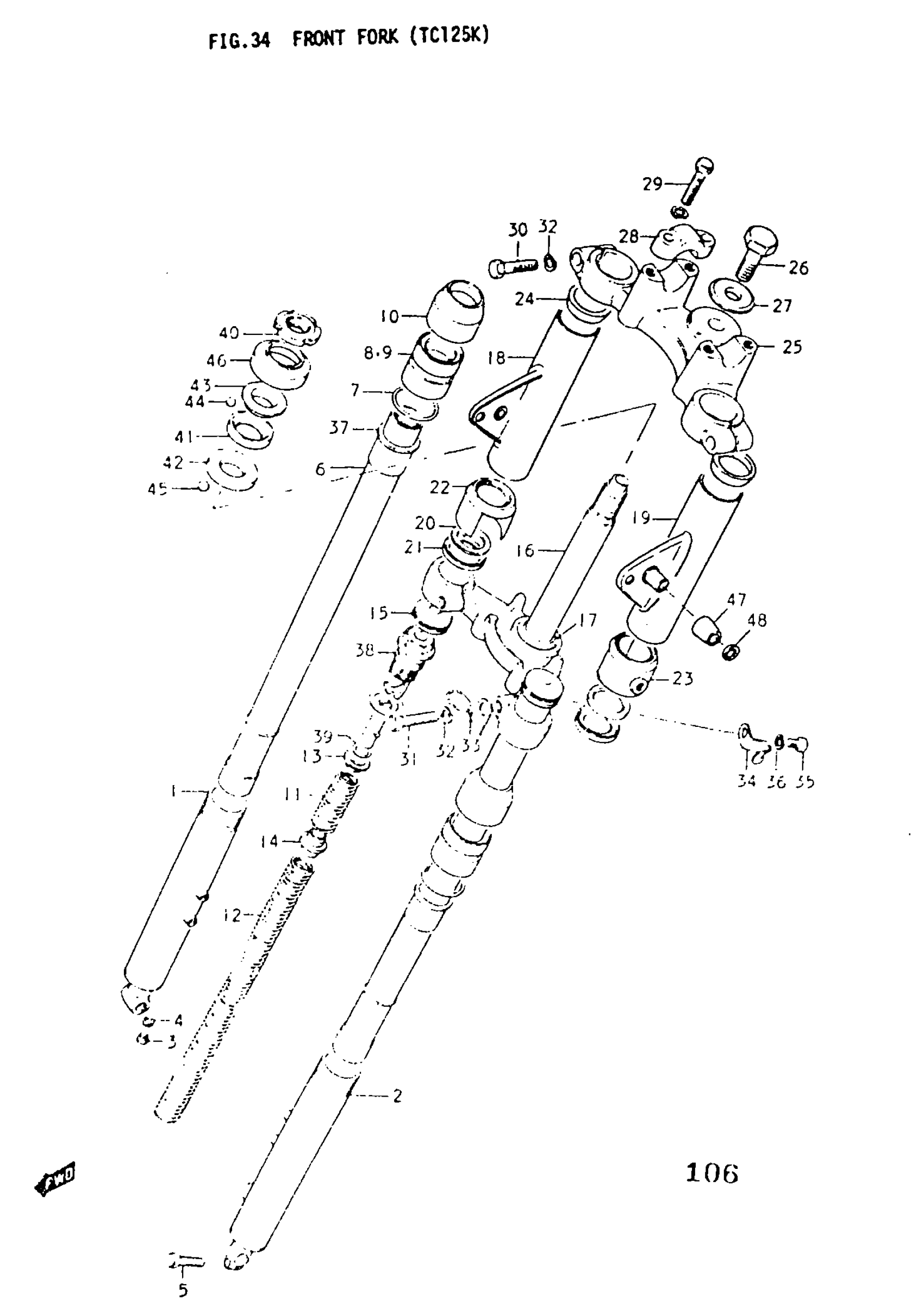

Suzuki TC125 (1977) FRONT FORK (TC125K) Diagram

#

Description
Price

0

FORK ASSY, FRONT | Includes Item(s) 1 - 39

51100-29620-019

Unavailable

1

TUBE, OUTER RH

51130-28600

Unavailable

2

TUBE, OUTER LH

51140-28600

Unavailable

3

SCREW This part replaces 02111-04087.

02112-04087

$1.49

4

GASKET

51183-03010

$2.07

5

BOLT This part replaces 01122-08258.

01500-08257

$2.50

6

TUBE, INNER

51110-28010

Unavailable

7

O RING, OUTER TUBE NUT

51154-07010

Unavailable

8

NUT, OUTER TUBE

51150-25011

Unavailable

9

OIL SEAL

51153-08011

Unavailable

10

DUST SEAL

51173-25010

$7.19

11

SPRING, FORK A

51171-29010

Unavailable

12

SPRING, FORK B

51184-29011

Unavailable

13

GUIDE, SPRING

51172-28010

Unavailable

14

SPACER, SPRING GUIDE

51192-29011

Unavailable

15

CAP, INNER TUBE

51189-29010

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 51410-28011.

51410-36260

Unavailable

17

RACE, STEERING STEM

51621-33001

$16.25

18

COVER, FORK RH | TO 51530-29621 This part replaces 51530-29620.

51530-29621

Unavailable

19

COVER, FORK LH | TO 51540-29621 This part replaces 51540-29620.

51540-29621

Unavailable

20

CUSHION, COVER GUIDE

51553-07110

Unavailable

21

GUIDE, CUSHION

51558-28010

Unavailable

22

COVER, STEERING STEM RH

51554-28010

Unavailable

23

COVER, STEERING STEM LH

51557-28010

Unavailable

24

GUIDE, COVER

51551-25010

Unavailable

25

HEAD, STEERING STEM

51311-28011-019

Unavailable

26

BOLT This part replaces 51351-20010.

51351-29400

$31.22

27

WASHER, STEERING STEM

51356-22011

Unavailable

28

HOLDER, HANDLE | FROM 56211-22011-019

56211-12111-019

Unavailable

29

BOLT This part replaces 01221-08307.

01204-08307

$1.99

30

BOLT, INNER TUBE UPPER

51451-15111

Unavailable

31

BOLT, INNER TUBE LOWER | FROM 51451-28011

51451-28012

Unavailable

32

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

33

CLIP, HARNESS

51455-36010

Unavailable

34

CLIP, CABLE

51453-30011

Unavailable

35

SCREW This part replaces 02112-06108.

02112-06107

$1.49

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

NO DESCRIPTION AVAILABLE This part replaces 51152-25010.

51152-25011

Unavailable

38

CAP, INNER TUBE

51180-29010

Unavailable

39

WASHER

51186-29620

Unavailable

40

NUT, STEERING STEM

51631-28000

$17.37

41

RACE, STEERING INNER UPPER | TO 51611-20002

51611-20001

Unavailable

42

RACE, STEERING INNER LOWER

51611-33002

$13.81

43

RACE,STEERING OUTER UPPER

51621-28000

$11.95

44

STEEL BALL

06111-08003

$1.49

45

STEEL BALL

06111-08003

$1.49

46

DUST SEAL,STEERING UPPER

51643-25001

$4.43

47

COVER, FRONT TURN SIGNAL BOSS

35698-28000

Unavailable

48

WASHER This part replaces 08322-21108.

08322-01107

$2.15
