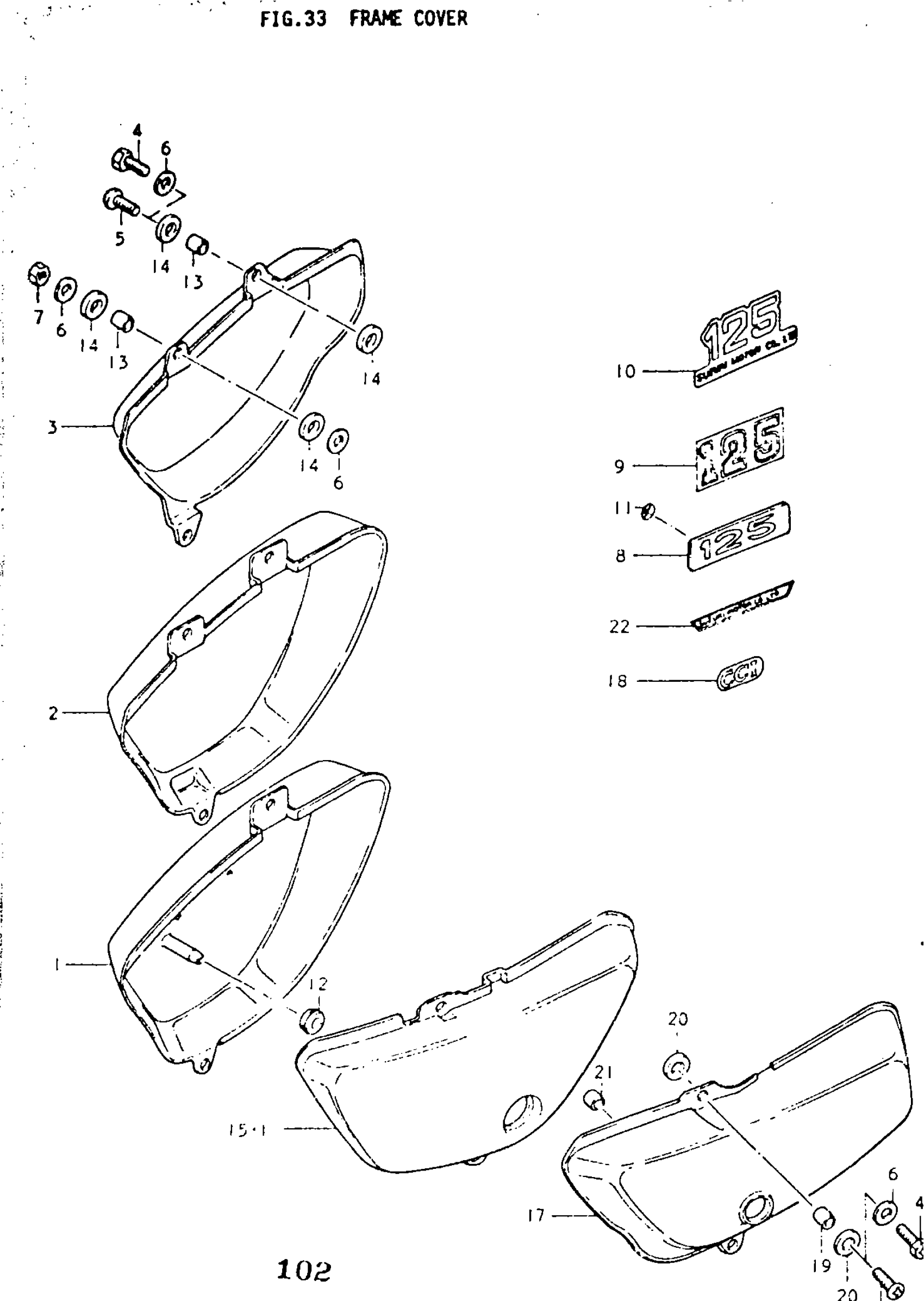

Suzuki TC125 (1977) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH | K; TO 47111-28601-709

47111-28600-709

Unavailable

1

COVER, FRAME RH | K; TO 47111-28602-709

47111-28601-709

Unavailable

1

COVER, FRAME RH | L; TO 47111-28602-714

47111-28000-714

Unavailable

2

NO DESCRIPTION AVAILABLE | M This part replaces 47111-28602-797.

47111-28602-019

Unavailable

3

NO DESCRIPTION AVAILABLE | A This part replaces 47111-28610-293.

47111-28610-019

Unavailable

3

NO DESCRIPTION AVAILABLE | B This part replaces 47111-28610-163.

47111-28610-019

Unavailable

4

SCREW | K,LM This part replaces 09128-06005.

02162-0616B

$2.03

5

SCREW | MA,B This part replaces 02141-06167.

02142-06167

$1.49

6

WASHER | K,LMA,B This part replaces 08322-21068.

08322-01067

$2.13

7

.NUT | M,A,B This part replaces 08311-11068.

08310-00067

$2.13

8

EMBLEM, COVER | K

68141-28600

Unavailable

9

EMBLEM, COVER | L

68131-28400-002

Unavailable

9

EMBLEM, COVER | M

68131-28400-991

Unavailable

9

EMBLEM, COVER | A

68131-28620-538

Unavailable

10

EMBLEM, COVER | B

68131-28630-538

Unavailable

11

NUT | K,L This part replaces 09148-03004.

09148-03011

$1.96

12

CUSHION, RH COVER | K,L

09308-10001

Unavailable

13

SPACER (6.1X8X9.5) | K,L; 6.1x8x9.5M,A,B; 6.1x8x9.5 This part replaces 09180-06044.

09180-06248

$2.12

14

CUSHION, FRAME COVER RH NO.1 | K,L; 7.5x14x3M,A,B; 7.5x14x3

09320-07005

$1.93

15

COVER, FRAME LH | K; TO 47211-28601-709

47211-28600-709

Unavailable

15

NO DESCRIPTION AVAILABLE | K This part replaces 47211-28601-709.

47211-28601-019

Unavailable

15

COVER, FRAME LH | L; TO 47211-28601-714

47211-28000-714

Unavailable

16

NO DESCRIPTION AVAILABLE | M This part replaces 47211-28601-797.

47211-28601-019

Unavailable

17

NO DESCRIPTION AVAILABLE | A This part replaces 47211-28610-293.

47211-28610-019

Unavailable

17

NO DESCRIPTION AVAILABLE | B This part replaces 47211-28610-163.

47211-28610-019

Unavailable

18

EMBLEM | OCI

68171-26000

$3.59

19

SPACER (6.1X8X9.5) | 6.1x8x9.5 This part replaces 09180-06044.

09180-06248

$2.12

20

CUSHION, FRAME COVER LH NO. 1 | 7.5x14x3

09320-07005

$1.93

21

CUSHION, FRAME COVER NO. 2 | 3x6x11

09320-03002

Unavailable

22

LABEL, COMPANY NAME | L,M

68363-26200

Unavailable

22

LABEL, COMPANY NAME | A

68363-26300

Unavailable
