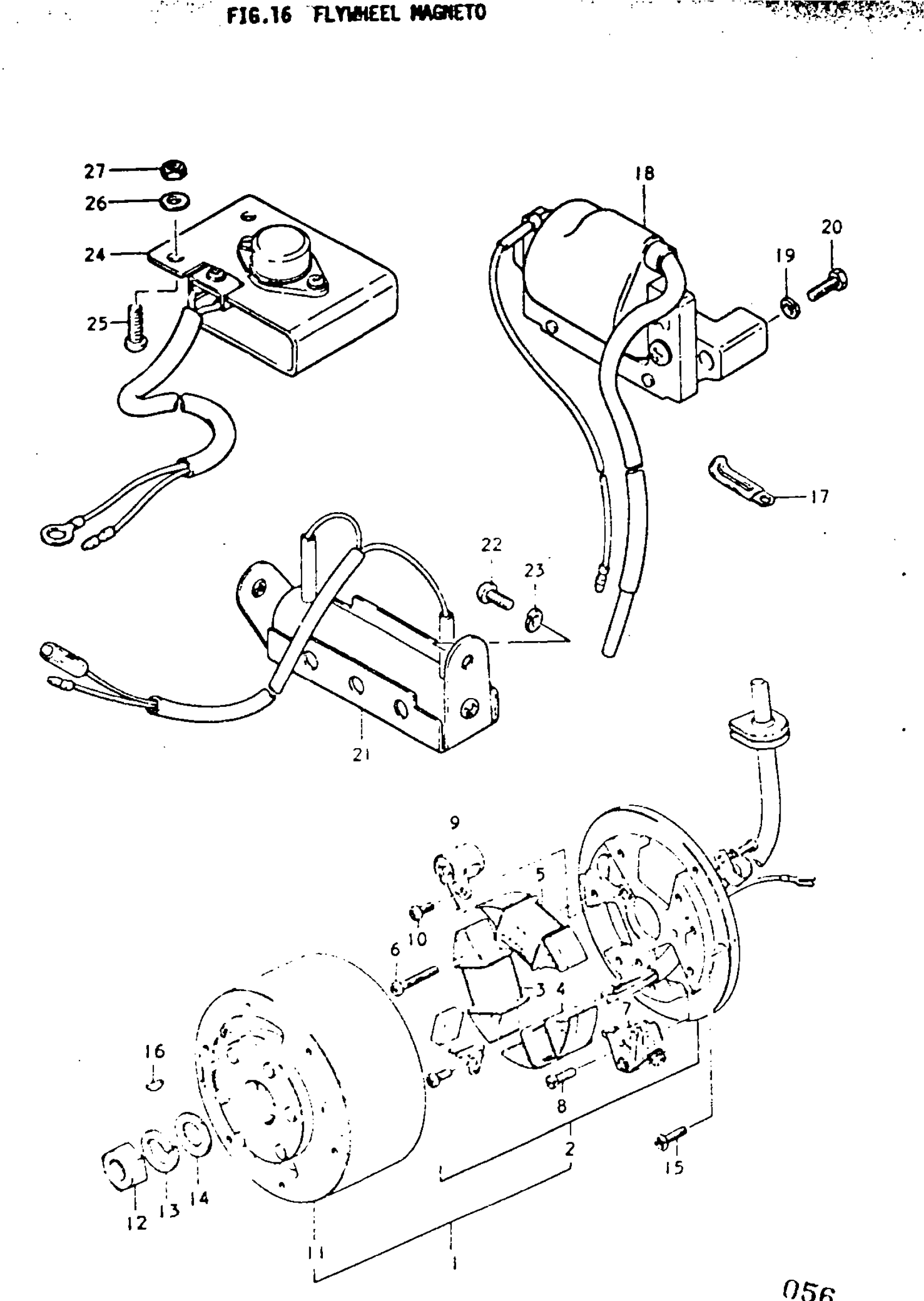

Suzuki TC125 (1977) FLYWHEEL MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | K; TO 32100-28612 This part replaces 32100-28611.

32101-28611

Unavailable

1

STATOR ASSY | L,M This part replaces 32100-28612.

32101-28611

Unavailable

1

STATOR ASSY | A; TO 32100-28614 This part replaces 32100-28613.

32101-28613

Unavailable

1

STATOR ASSY | B; Includes Item(s) 2 - 11 This part replaces 32100-28614.

32101-28613

Unavailable

2

STATOR ASSY | K,L,M

32101-28611

Unavailable

2

STATOR ASSY | A,B

32101-28613

Unavailable

3

COIL, LIGHTING A | K,L,M

32120-28611

Unavailable

3

COIL, LIGHTING A | A,B

32120-28612

Unavailable

4

COIL, LIGHTING B | K,L,M

32130-28611

Unavailable

4

COIL, LIGHTING B | A,B

32130-28612

Unavailable

5

COIL, PRIMARY | K,L,M

32140-28011

Unavailable

5

COIL, PRIMARY | A,B

32140-28012

Unavailable

6

SCREW (4X30) This part replaces 02111-04308.

09125-04023

$2.30

7

CONTACT POINT This part replaces 32240-28010.

32240-43012

$38.45

8

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

9

CONDENSER | K,L,M,A; TO 32341-12011 This part replaces 32341-12010.

32341-12011

Unavailable

9

CONDENSER | B

32341-12011

Unavailable

10

SCREW This part replaces 02111-04107.

02112-04107

$1.55

11

ROTOR, FLYWHEEL | K,L,M

32102-28612

Unavailable

11

ROTOR, FLYWHEEL | A,B

32102-28613

Unavailable

12

NUT This part replaces 09140-10003.

09140-10041

$2.38

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

14

WASHER This part replaces 08322-21108.

08322-01107

$2.15

15

SCREW This part replaces 02122-06168.

02122-06167

$1.49

16

KEY

08341-31039

$1.89

17

CLAMP | K,L This part replaces 09403-00075.

09404-06039

$1.74

17

CLAMP | M,A This part replaces 09404-06401.

09404-06039

$1.74

18

IGNITION COIL A This part replaces 33410-22220.

33410-22221

Unavailable

19

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

20

BOLT, RUBBER STOP This part replaces 01111-05128.

01500-05127

$2.10

21

RESISTER ASSY, MAGNETO | K,L,MA,B; OPT

36500-28610

Unavailable

22

SCREW | K,L,MA,B; OPT This part replaces 02112-05068.

09125-05122

$2.06

23

LOCK WASHER | K,L,MA,B; OPT This part replaces 08321-21058.

08321-0105A

$1.84

24

REGULATOR, VOLTAGE | A,B This part replaces 32500-27600.

32500-25600

Unavailable

25

SCREW | A,B This part replaces 02112-06128.

02112-06127

$1.84

26

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

27

.NUT | A,B This part replaces 08311-11068.

08310-00067

$2.13
