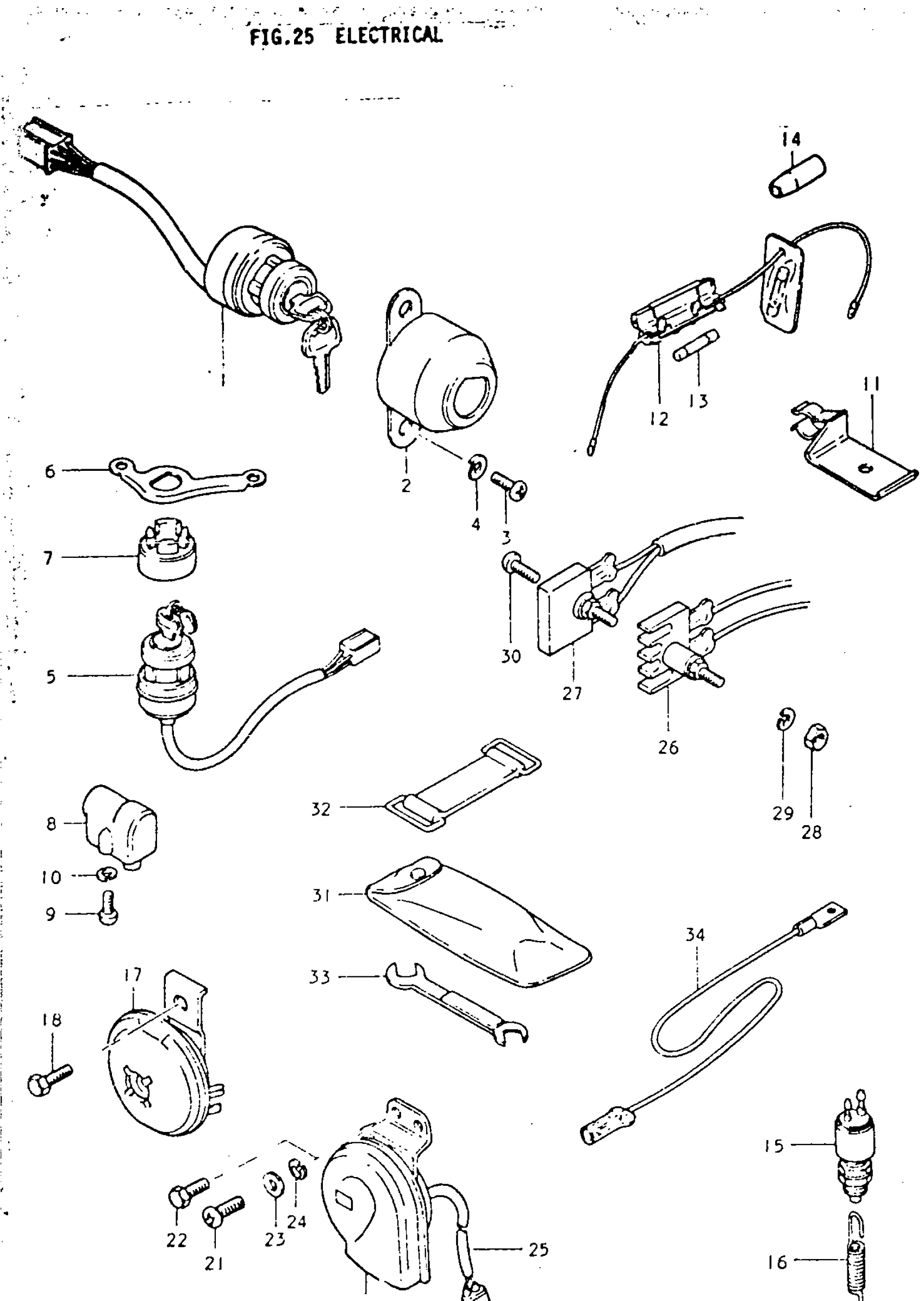

Suzuki TC125 (1977) ELECTRICAL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K This part replaces 37110-28611.

37110-28613

Unavailable

2

BRACKET, IGNITION SWITCH | K This part replaces 37115-30000.

37115-16401

Unavailable

3

SCREW | K This part replaces 02112-06128.

02112-06127

$1.84

4

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$2.13

5

SWITCH ASSY, IGNITION | L; TO 37110-25313

37110-25312

Unavailable

5

SWITCH ASSY, IGNITION | M; FROM 37110-25313 This part replaces 37110-25314.

37110-25319

$97.62

5

SWITCH ASSY, IGNITION | A; FROM 37110-25314

37110-25315

Unavailable

5

SWITCH ASSY, IGNITION | B; INCLUDES REF. NO. 9-2 FROM 37110-25317 This part replaces 37110-25318.

37110-25319

$97.62

6

BRACKET, IGNITION SWITCH | L,M,A,B This part replaces 37115-36000.

37115-36001

Unavailable

7

COVER, IGNITION SWITCH | L,M; TO 37128-36001

37128-36000

Unavailable

7

COVER, IGNITION SWITCH | A

37128-36001

Unavailable

8

LOCK ASSY, STEERING This part replaces 50000-25837.

51910-25311

$40.33

9

SCREW This part replaces 02111-05127.

02112-05127

$1.97

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

HOLDER, FUSE CASE | L,M,A,B

36791-28400

Unavailable

12

FUSE CASE ASSY | Includes Item(s) 13 This part replaces 36740-15010.

36740-15011

$9.38

13

FUSE | 15A

09481-15001

$2.06

14

BOOT | M,A,B

09287-10001

Unavailable

15

SWITCH ASSY, STOP LAMP

37610-53011

$30.75

16

SPRING, SWITCH | K; TO 09443-06012 This part replaces 09443-06020.

09443-06012

$3.16

16

SPRING, SWITCH | L,M,A,B

09443-06012

$3.16

17

NO DESCRIPTION AVAILABLE | K This part replaces 38500-28031.

38500-28032

Unavailable

18

BOLT | K This part replaces 01122-08128.

01500-08127

$2.62

19

HORN | L; TO 38500-25331 WITH 36870-25030

38500-25330

Unavailable

20

HORN | M; TO 38500-25332

38500-25331

Unavailable

20

HORN | A,B

38500-25332

Unavailable

21

SCREW | L,M This part replaces 02112-06128.

02112-06127

$1.84

22

BOLT | A,B This part replaces 01112-06108.

01500-06107

$2.06

23

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13

24

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

25

LEAD WIRE, HORN | M

36870-25030

Unavailable

26

RECTIFIER | K This part replaces 32800-16420.

32800-16421

Unavailable

26

RECTIFIER | L,M; FROM 32800-16420

32800-16421

Unavailable

27

DIODE | A; WITH 36620-28404 This part replaces 32800-19061.

32800-16A00

$23.07

27

DIODE | B This part replaces 32800-19062.

32800-16A00

$23.07

28

NUT This part replaces 08311-11058.

08310-00057

$1.84

29

LOCK WASHER | K This part replaces 08321-21058.

08321-0105A

$1.84

30

SCREW | A,B This part replaces 02112-05208.

02112-05207

$1.97

31

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02

32

BAND, TOOL

09462-00017

$3.23

33

WRENCH, CONTACT POINT | K

09930-20111

Unavailable

34

LEAD WIRE | A,B; WITH 36610-25624

36811-27610

Unavailable
