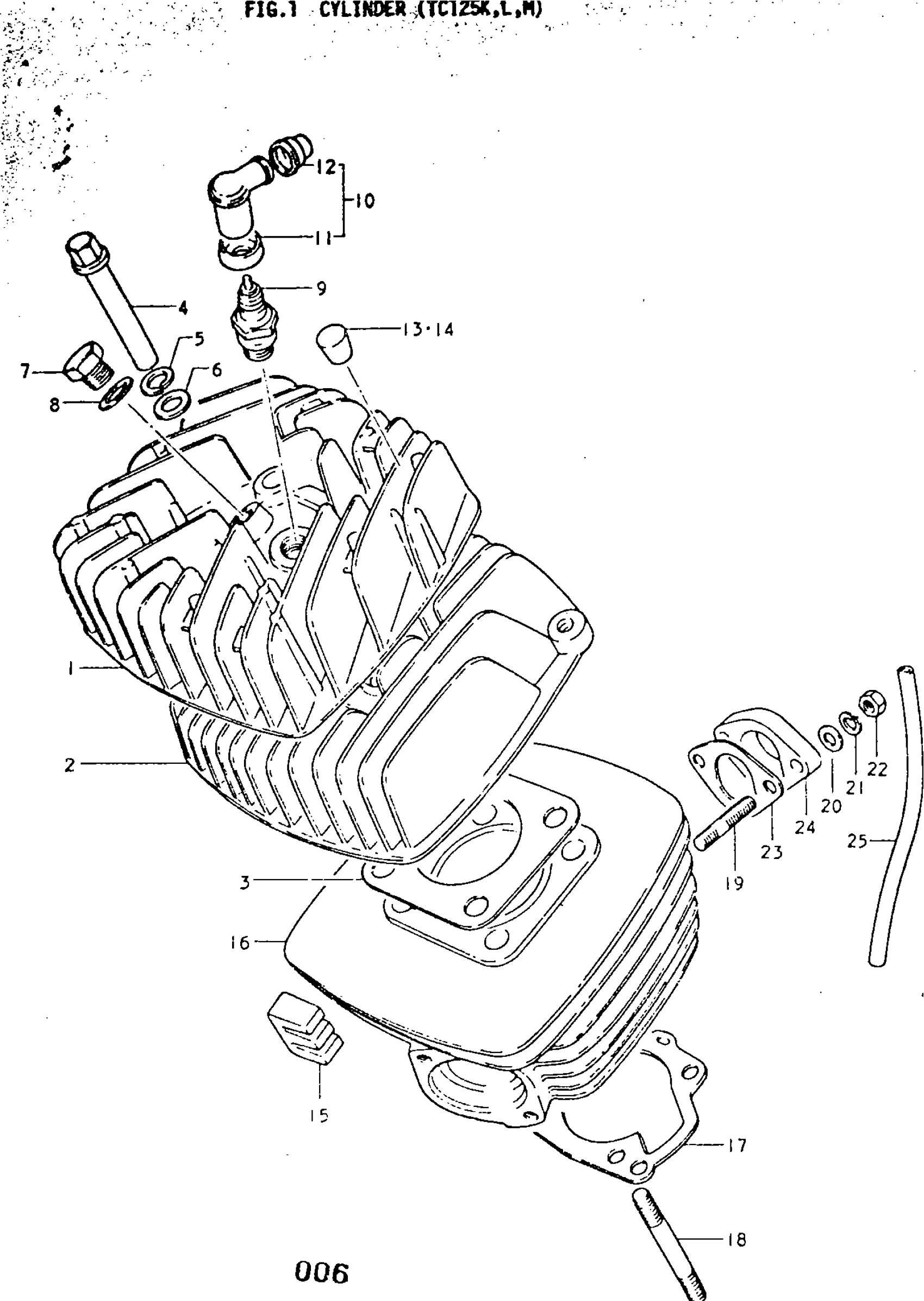

Suzuki TC125 (1977) CYLINDER (TC125K Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K This part replaces 11111-27301.

11111-27302

Unavailable

2

CYLINDER HEAD | L,M

11111-28400

Unavailable

3

GASKET, CYLINDER HEAD

11141-28000

Unavailable

4

NUT, CYLINDER HEAD

09159-08006

$5.83

5

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

6

WASHER This part replaces 08322-11128.

08322-01127

$1.84

7

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

8

GASKET, CYLINDER HEAD PLUG

09168-14004

$1.83

9

SPARK PLUG B8HS | B-BHS This part replaces 09482-00057.

09482-00198

$2.93

9

SPARK PLUG ASSY | W24FS

09482-00058

Unavailable

10

CAP SET, SPARK PLUG | K,L; TO 33500-69810

33503-10801

Unavailable

10

CAP SET,SPARK P | M; Includes Item(s) 11 - 12 This part replaces 33500-69810.

33500-69811

$22.48

11

SEAL, PLUG CAP | K,L; TO 33541-69010

33541-22000

Unavailable

11

SEAL, PLUG CAP | M

33541-69010

$4.37

12

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

13

PAD, CYLINDER HEAD | K; TO 11252-25000L; TO 11252-25000M; TO 11252-25000 This part replaces 11151-25000.

11252-25000

$4.52

14

PAD, CYLINDER HEAD | K

11151-16400

Unavailable

15

RUBBER PAD CYLI This part replaces 11251-28000.

11251-28001

$5.24

16

CYLINDER

11210-28000

Unavailable

17

GASKET,CYLINDER This part replaces 11241-28000.

11241-28001

Unavailable

18

BOLT,STUD This part replaces 01421-08658.

01421-0865A

$3.85

19

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

25

HOSE | 3x5x140 This part replaces 09344-03014.

09351-30001-600

$3.57

20

WASHER | K,L This part replaces 08322-11088.

08322-01087

$2.13

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

NUT This part replaces 08312-11088.

08310-00087

$2.13

23

GASKET, CARBURETOR

13125-28000

Unavailable

24

INSULATOR, CARBURETOR

13129-28000

Unavailable
