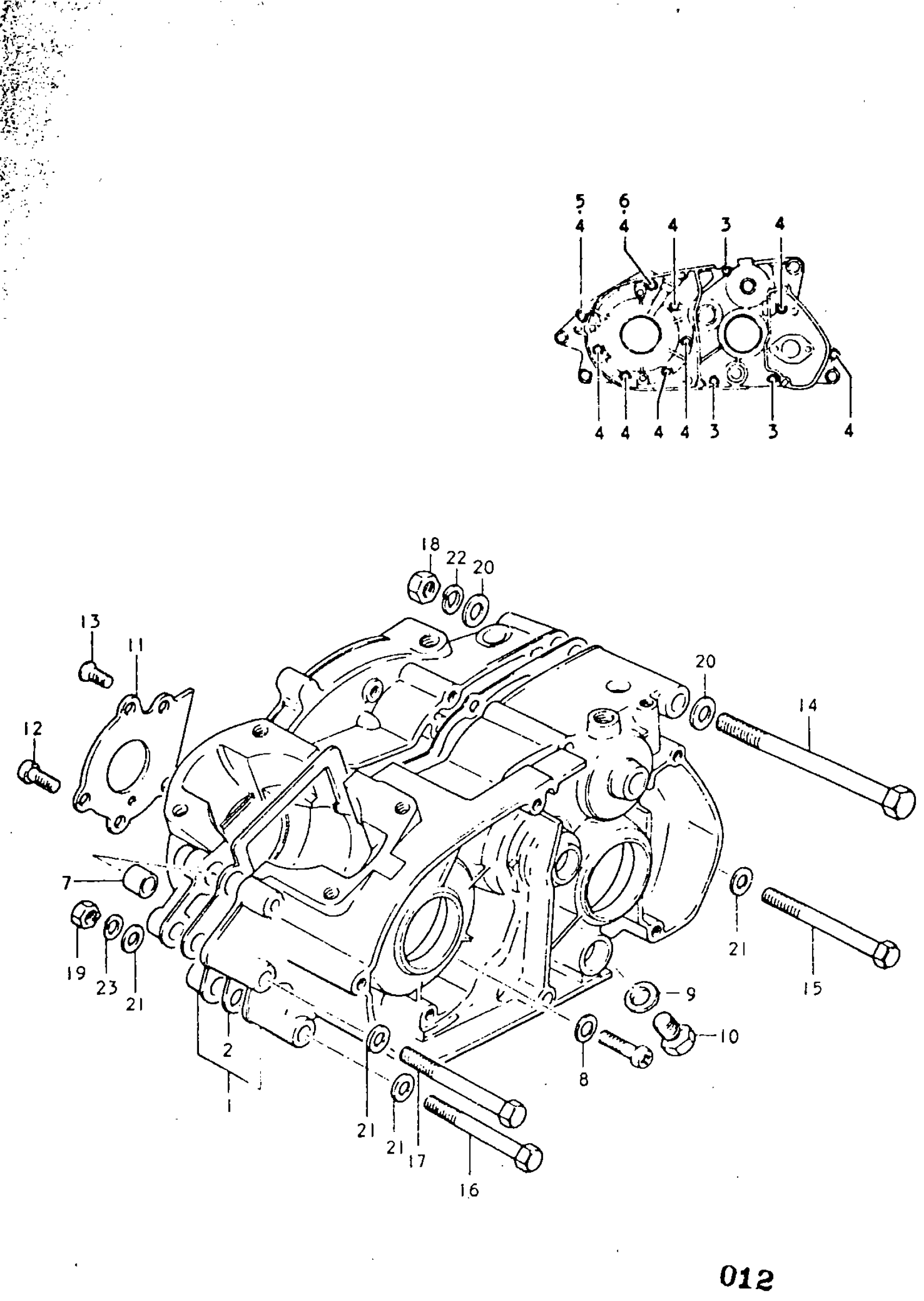

Suzuki TC125 (1977) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | K,L; TO 11300-28831

11300-28830

Unavailable

1

CRANKCASE SET | M; TO 11300-28841

11300-28831

Unavailable

1

CRANKCASE SET | A; TO 11300-28871 This part replaces 11300-28870.

11300-28872

Unavailable

1

CRANKCASE SET | B; FROM 11300-28871; Includes Item(s) 2 - 10

11300-28872

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-28000.

11481-28001

Unavailable

3

SCREW

02112-06657

$2.62

4

SCREW (6X45) | K,L,MA,B This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW | A,B This part replaces 02112-06808.

02112-06807

$2.57

6

SCREW | A,B This part replaces 02112-06608.

02112-06607

$2.57

7

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

9

GASKET | K,L; 14SCREW

09168-14004

$1.83

9

GASKET | M,A,B; 10SCREW

09168-10002

$2.13

10

PLUG (MAGNETO) | K,L; 14SCREW This part replaces 09247-14001.

09247-14002

$5.24

10

PLUG, DRAIN | M,A,B; 10 SCREW

09247-10001

$2.20

11

PLATE, OIL RESERVOIR | FROM 12561-28002

12521-28002

Unavailable

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

SCREW This part replaces 02112-06168.

02112-06167

$1.49

14

BOLT | 10x115 This part replaces 09100-10060.

09116-10032

$5.77

15

BOLT This part replaces 01122-08808.

01500-0880B

$3.49

16

BOLT This part replaces 01122-08758.

01500-0875B

$4.10

17

BOLT This part replaces 01122-08708.

01500-0870B

$3.49

18

NUT This part replaces 08312-12108.

08310-00107

$2.19

19

NUT This part replaces 08312-11088.

08310-00087

$2.13

20

WASHER | K,L,M,A This part replaces 08322-11108.

08322-01107

$2.15

21

WASHER | K,L,M,A This part replaces 08322-11088.

08322-01087

$2.13

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
