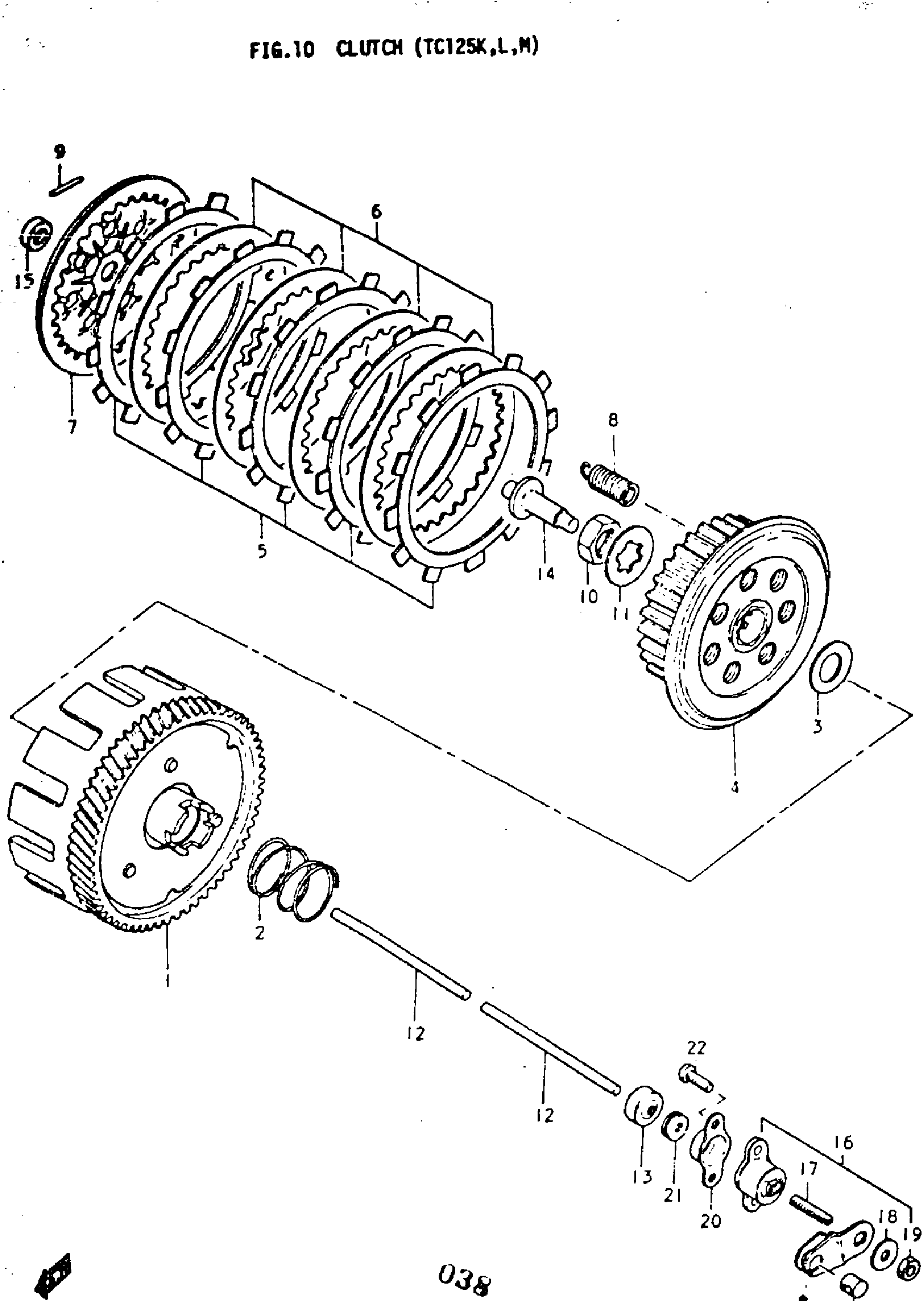

Suzuki TC125 (1977) CLUTCH (TC125K Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | NT:57 TO 21200-28830 This part replaces 21200-28000.

21200-28002

Unavailable

2

SPRING, REAR

09440-32001

Unavailable

3

THRUST WASHER | 17x29x1.5

08211-17282

$2.70

4

HUB, SLEEVE

21410-28000

Unavailable

5

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

6

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

7

PLATE, PRESSURE

21460-28000

$25.25

8

SPRING, CLUTCH

09443-12015

Unavailable

9

PIN, SPRING

09261-02001

$1.56

10

NUT This part replaces 09140-16001.

09140-16005

$3.75

11

WASHER, SLEEVE HUB | 14x33x0.8

09167-17002

$1.91

12

ROD, CLUTCH PUSH LH This part replaces 23111-28000.

23111-34C00

$13.74

13

OIL SEAL This part replaces 09285-06006.

09285-06021

$12.08

14

PIECE, CLUTCH PUSH

23121-14000

Unavailable

15

OIL SEAL, PUSH PIECE

09284-10002

$2.90

16

SCREW ASSY, RELEASE | Includes Item(s) 17 - 19

23200-28001

Unavailable

17

SCREW This part replaces 09134-06001.

09134-06010

$3.12

18

WASHER, RELEASE SCREW | 6.5x16x1.2

09160-06019

$1.49

19

.NUT This part replaces 08311-31068.

08310-00067

$2.13

20

COVER, RELEASE SCREW

23241-23000

$11.95

21

DUST SEAL, RELEASE SCREW

09281-05001

$1.78

22

SCREW This part replaces 02112-05168.

02112-05167

$1.97

23

PIECE, END

23222-07000

$4.52

24

SPRING, RELEASE SCREW RETURN

09443-08001

$2.92
