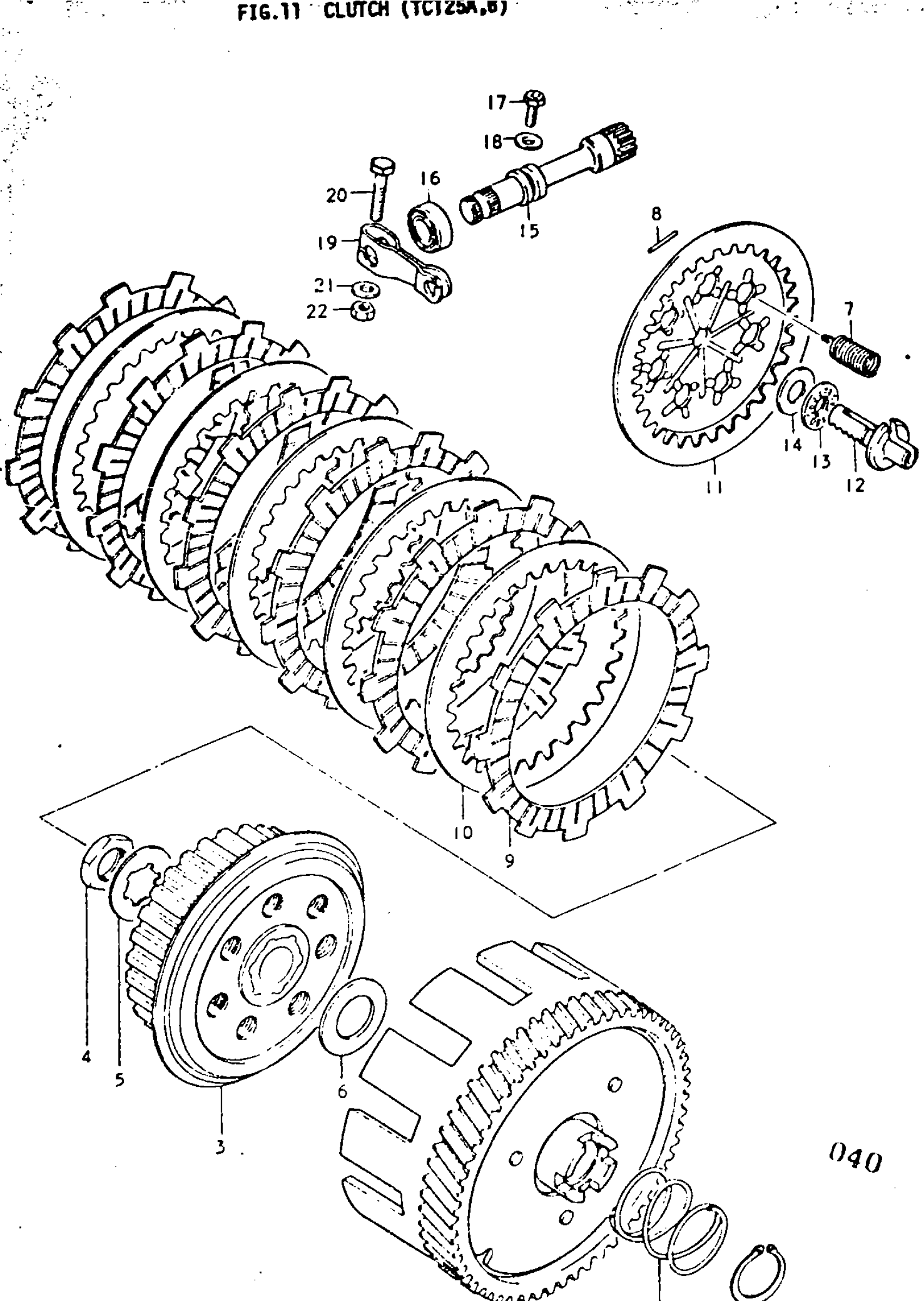

Suzuki TC125 (1977) CLUTCH (TC125A Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | NT:57 This part replaces 21200-28001.

21200-28002

Unavailable

2

CLIP | FROM 09401-25401

09380-30001

Unavailable

3

HUB,CLUTCH SLEE This part replaces 21410-28700.

21410-39131

$89.43

4

NUT This part replaces 09140-16001.

09140-16005

$3.75

5

WASHER

09167-17002

$1.91

6

THURST WASHER

08211-17282

$2.70

7

SPRING

09443-12010

$2.45

8

PIN

09261-02001

$1.56

9

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

10

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

11

PLATE, CLUTCH PRESSURE

21460-28200

Unavailable

12

RACK RELEASE This part replaces 23165-28000.

23165-28001

Unavailable

13

BEARING

09263-10002

$10.19

14

WASHER This part replaces 09160-10021.

09160-10121

$2.03

15

PINION, CLUTCH RELEASE

23261-28300

$45.38

16

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

17

BOLT

09135-06009

$2.23

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

ARM, CLUTCH RELEASE

23271-28300

Unavailable

20

BOLT This part replaces 01112-06258.

01500-06257

$1.97

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

.NUT This part replaces 08311-11068.

08310-00067

$2.13
