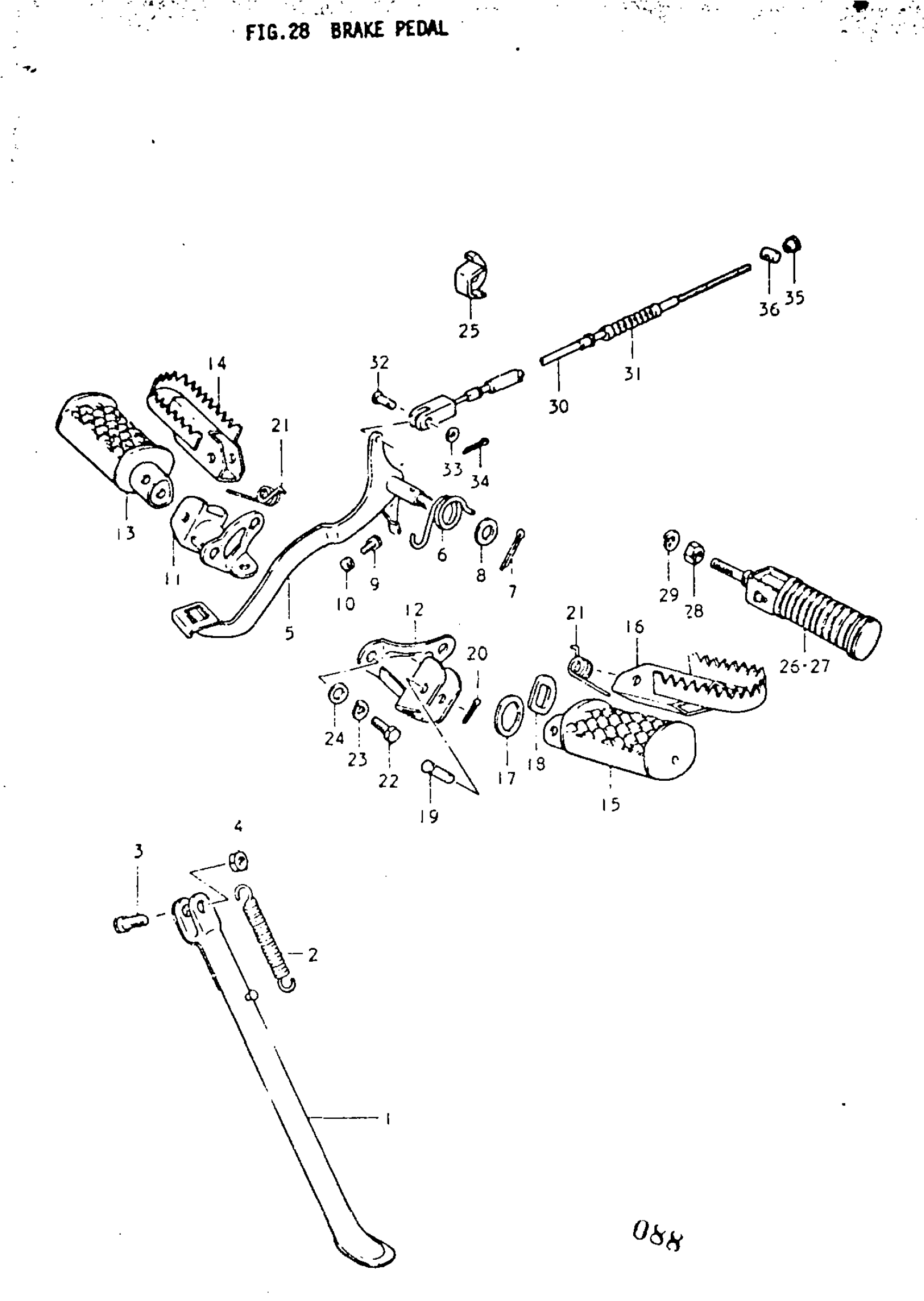

Suzuki TC125 (1977) BRAKE PEDAL Diagram

#

Description
Price

1

STAND, PROP

42310-28000

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT, PROP STAND

09100-10067

$2.61

4

NUT This part replaces 08312-32108.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-28000

Unavailable

6

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

7

PIN This part replaces 04111-30308.

04111-3030A

$1.49

8

WASHER, BRAKE PEDAL

09160-15002

$1.91

9

BOLT This part replaces 01112-06208.

01500-06207

$2.28

10

.NUT This part replaces 08311-31068.

08310-00067

$2.13

11

FOOTRESTBAR, FRONT RH | K,L,M

43510-28000

Unavailable

11

FOOTRESTBAR, FRONT RH | A,B

43510-28001

Unavailable

12

FOOTRESTBAR, FRONT LH | K,L,M

43520-28000

Unavailable

12

FOOTRESTBAR, FRONT LH | A,B

43520-28001

Unavailable

13

RUBBER, RH | K; TO 43550-25300 CIRCLE SHAPED This part replaces 43550-25000.

43550-25301

Unavailable

13

FOOTREST RH | L,M; FROM 43550-25300 SQUARE SHAPED

43550-25301

Unavailable

14

FOOTREST RH | A,B

43550-25302

Unavailable

15

RUBBER, LH | K; TO 43560-25300 CIRCLE SHAPED This part replaces 43560-25000.

43560-25301

Unavailable

15

FOOTREST LH | L,M; FROM 43560-25300 SQUARE SHAPED

43560-25301

Unavailable

16

FOOTREST LH | A,B

43560-25302

Unavailable

17

WASHER | K; CIRCLE SHAPED This part replaces 09160-22002.

09160-22033

$3.89

18

WASHER, RUBBER | L,M; SQUARE SHAPED

43581-25300

Unavailable

19

PIN, RUBBER

09200-08002

$2.05

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

21

SPRING

09448-14012

$3.04

22

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

PLATE, KICK LEVER STOPPER | K,L,M; TO 43543-28000

43540-28000

Unavailable

25

PLATE, KICK LEVER STOPPER | A,B; FROM 43543-28000

43543-29000

Unavailable

26

FOOTREST ASSY, RH

43600-28000

Unavailable

27

FOOTREST ASSY,P | K,L This part replaces 43600-03001.

43600-09D00

$27.30

27

FOOTREST ASSY, LH | M,A,B

43600-36200

Unavailable

28

NUT, FIXED DRIVE FACE | MA,B This part replaces 08312-31128.

09140-12039

$3.05

29

LOCK WASHER | M This part replaces 08321-21128.

08321-01127

$2.06

30

CABLE ASSY, REAR BRAKE | FROM 58510-28300; Includes Item(s) 31

58510-28000

Unavailable

31

DUST SEAL

09287-05001

Unavailable

32

PIN, REAR BRAKE CABLE

09200-05004

Unavailable

33

WASHER This part replaces 08322-21068.

08322-01067

$2.13

34

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

35

.NUT This part replaces 09150-06001.

09150-06010

$3.10

36

PIN, CABLE LEVER

09209-11002

$2.19
