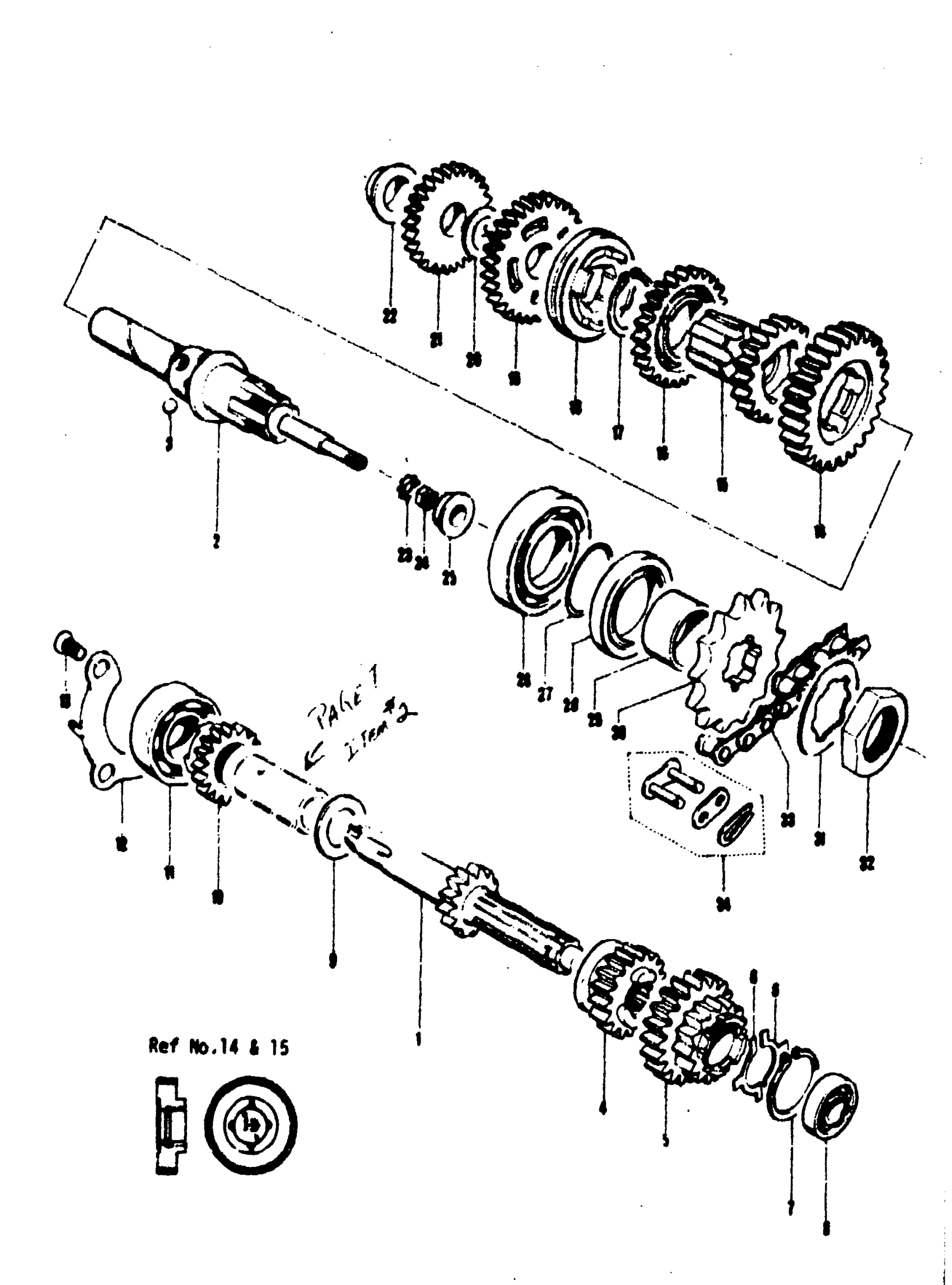

Suzuki TC120 (1971) TRANSMISSION Diagram

#

Description
Price

1

COUNTER SHAFT | NT :13

24121-07400

Unavailable

2

DRIVE SHAFT | TC120; STEEL BALL 9/32

24000-07840

Unavailable

2

DRIVE SHAFT | TC120II,TC120R; STEEL BALL 5/16

24130-07401

Unavailable

3

STEEL BALL | TC120; 9/32

06111-09004

$1.55

3

STEEL BALL | TC120II,TC120R; 5/16

06111-10004

Unavailable

4

2ND DRIVE GEAR | NT:18

24221-07400

Unavailable

5

3RD DRIVE GEAR | NT:12/18

24230-20200

Unavailable

6

KNOCK RING

09399-14001

Unavailable

7

CIRCLIP

09380-26001

Unavailable

8

BEARING (12X28X8) This part replaces 08113-60010.

09262-12001

$18.47

9

WASHER, 2ND DRIVE GEAR | 17x29x1 This part replaces 09160-17001.

09181-17223

$2.96

10

KICK STARTER DRIVEN GEAR | NT: 17

26280-07000

Unavailable

11

BEARING | 30x62x10 This part replaces 09262-30002.

09262-30003

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 24741-03000.

24741-03001

Unavailable

13

SCREW

02121-06128

Unavailable

14

REDUCTION GEAR | TC120; NT:25, ID:25

24611-20200

Unavailable

14

REDUCTION GEAR | TC120II,TC120R; NT:22, ID:26

24611-20201

Unavailable

15

3RD DRIVEN GEAR | TC120; NT:22, ID:25

24330-20200

Unavailable

15

3RD DRIVEN GEAR | TC120II,TC120R; NT:22, ID:26

24330-20201

Unavailable

16

2ND DRIVEN GEAR | NT:25

24321-07400

Unavailable

17

SNAP RING

09380-25003

$3.04

18

1ST DRIVEN GEAR WHEEL

24411-07402

Unavailable

19

1ST DRIVEN GEAR | NT:29

24310-07400

Unavailable

20

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

21

KICK STARTER IDLE GEAR | NT:26

26260-07401

Unavailable

22

DRIVE SHAFT BUSHING | ID:15, L:19.5

09319-15002

Unavailable

23

LOCK WASHER This part replaces 08323-21068.

08323-31068

Unavailable

24

.NUT This part replaces 08311-11068.

08310-00067

$2.13

25

REDUCTION SHIFTING ROD OIL SEA

09289-09001

Unavailable

26

BEARING, LH This part replaces 08113-62050.

09262-25003

$24.83

27

DRIVE SHAFT BEARING O RING

09280-25001

$1.56

28

DRIVE SHAFT OIL SEAL | 30x44x6.3

09283-30005

Unavailable

29

ENGINE SPROCKET SPACER | 25x30x14.5

09180-25013

Unavailable

30

ENGINE SPROCKET | NT:14

27511-20200

Unavailable

30

ENGINE SPROCKET | NT:13,OPT

27511-07400

Unavailable

31

ENGINE SPROCKET WASHER

09167-25003

Unavailable

32

NUT, PIVOT RH | 24SCREW This part replaces 09140-24004.

09140-24007

$3.89

33

DRIVE CHAIN ASS'Y | #428Dx110R; Includes Item(s) 34

27600-20211

Unavailable

34

JOINT (RK) | #428D This part replaces 27620-20210.

27620-40220

$11.07
