1971 Suzuki TC120 Stand - Footrest Diagram

← All diagrams

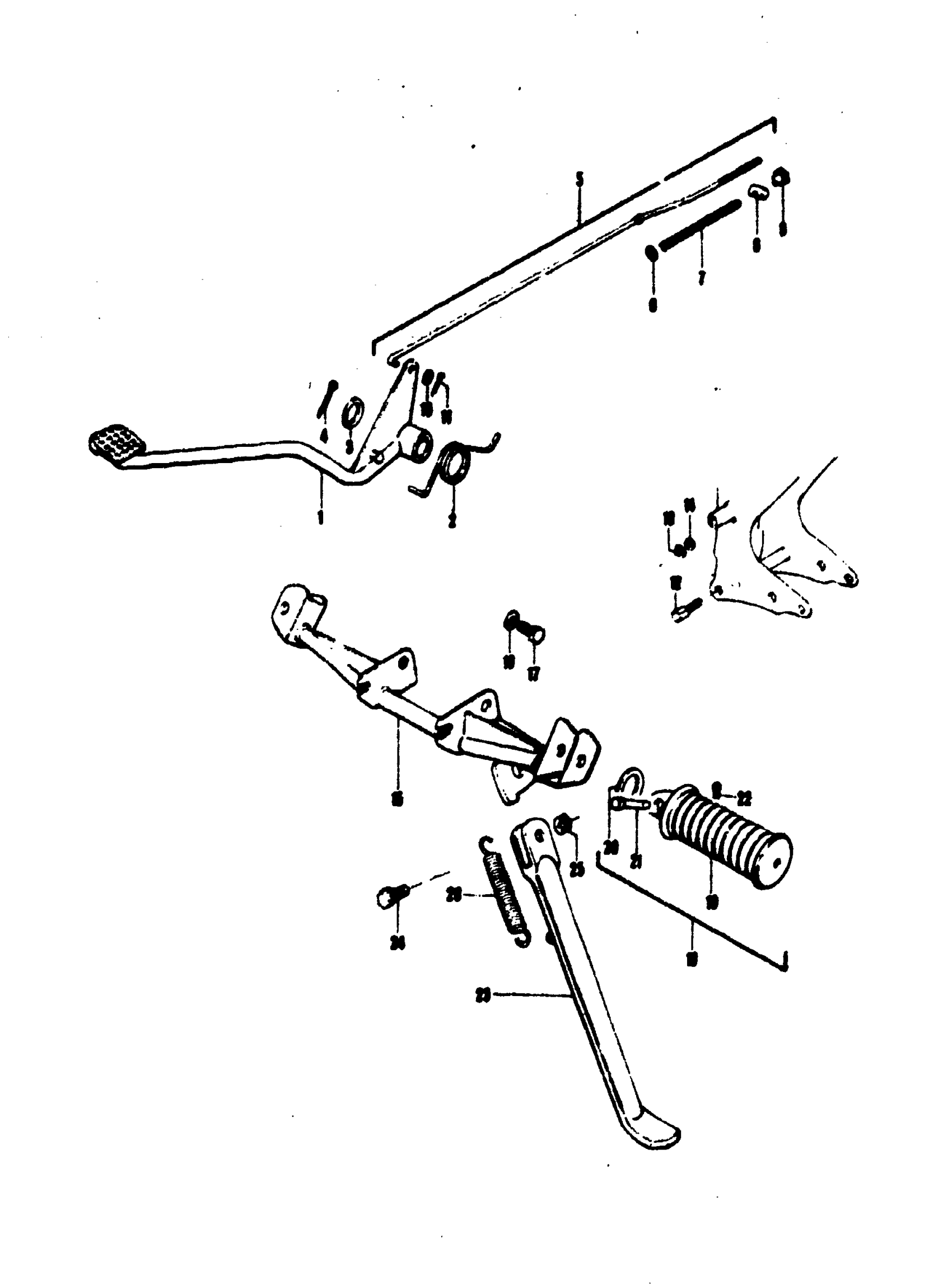

Find the part on the Stand - Footrest diagram for your 1971 Suzuki TC120, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki TC120 Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRAKE PEDAL

43110-20200

1
Out of stock

2

BRAKE PEDAL RETURN SPRING

09448-31001

1
Out of stock

3

BRAKE PEDAL WASHER | 15.5x26x2.3

09160-15002

1
Out of stock

4

COTTER PIN

04111-20188

—
Out of stock

5

REAR BRAKE ROD ASS'Y | Includes Item(s) 6 - 9

43300-20200

1
Out of stock

6

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

7

BRAKE ROD SPRING

09440-09004

1
Out of stock

8

BRAKE CAM LEVER PIN

09209-11002

1
Out of stock

9

.NUT | 6SCREW This part replaces 09150-06001.

09150-06010

1
Out of stock

10

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

11

PIN This part replaces 04111-30258.

04111-3030A

1
Out of stock

12

BRAKE PEDAL RETURN SPRING STOP | 10SCREW

09100-10032

—
Out of stock

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

14

NUT This part replaces 08312-11108.

08310-00107

1
Out of stock

15

FRONT FOOTREST BAR

43510-20200

1
Out of stock

16

2

$2.28

In stock

17

2

$2.68

In stock

18

FOLDING FOOTREST RUBBER ASS'Y | Includes Item(s) 19 - 22

43500-03841

2
Out of stock

19

FOOTREST RUBBER

43550-16400

2
Out of stock

20

WASHER | 22.5x36x2.3 This part replaces 09160-22002.

09160-22033

2
Out of stock

21

PIN

09200-08002

2
Out of stock

22

COTTER PIN

04111-20188

—
Out of stock

23

SIDE STAND

42310-20200

1
Out of stock

24

SIDE STAND BOLT | 10SCREW, L:30

09100-10067

1
Out of stock

24

BOLT | 10SCREW, L:27 This part replaces 09100-10007.

09100-10287

1
Out of stock

25

NUT This part replaces 08312-31108.

08310-00107

1
Out of stock

26

SPRING This part replaces 09443-14005.

09443-14017

1
Out of stock
