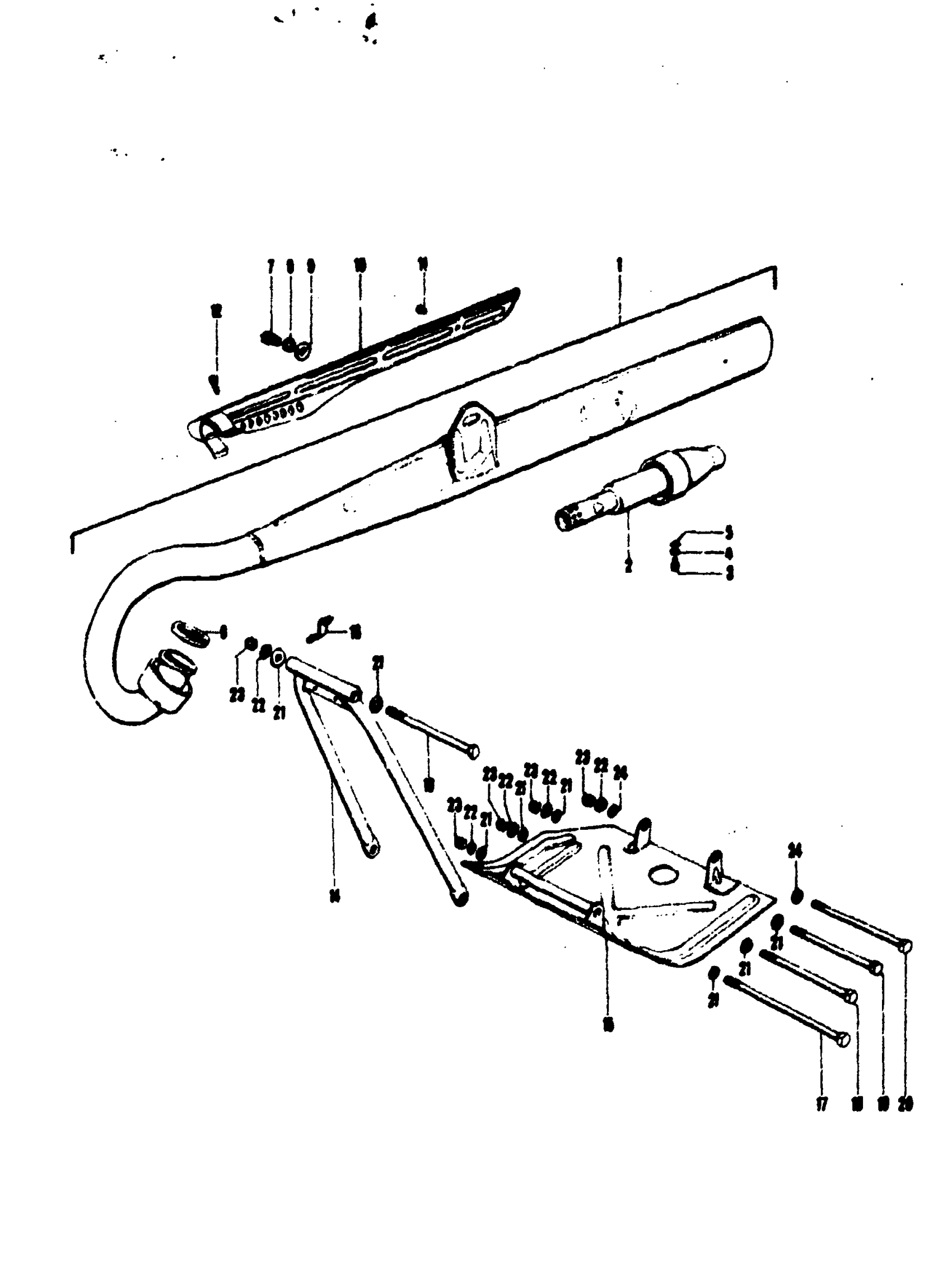

Find the part on the Muffler - Skid Plate diagram for your 1971 Suzuki TC120, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki TC120 Muffler - Skid Plate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASS'Y | TC120

14301-20200

—
Out of stock

1

MUFFLER ASS'Y | TC120II,TC120R; Includes Item(s) 2 - 5 This part replaces 14301-20201.

14301-20200

—
Out of stock

2

SPARK ARRESTER

14801-03600

1
Out of stock

3

BOLT

01111-06108

—
Out of stock

4

1

$2.28

In stock

5

.WASHER This part replaces 08322-11068.

08322-0106B

1
Out of stock

6

.GASKET,EXHAUST This part replaces 14181-05010.

14181-18C00

1
Out of stock

7

1

$3.16

In stock

8

1

$1.93

In stock

9

WASHER This part replaces 08322-21108.

08322-01107

1
Out of stock

10

MUFFLER COVER

14780-20200

1
Out of stock

11

SCREW

02111-06088

—
Out of stock

12

1

$2.10

In stock

13

MUFFLER COVER CLAMP

14787-20200

—
Out of stock

14

SKID PLATE BRACE

11920-20200-019

—
Out of stock

15

SKID PLATE

11910-07601-019

1
Out of stock

16

BOLT | 8SCREW,L:110

09100-08026

1
Out of stock

17

BOLT | 8SCREW This part replaces 09100-08033.

09100-08103

1
Out of stock

19

ENGINE MOUNTING REAR BOLT | 8SCREW, L:110

09100-08026

1
Out of stock

20

ENGINE MOUNTING LOWER BOLT | 8SCREW, L:125

09100-08030

1
Out of stock

21

WASHER This part replaces 08322-11088.

08322-01087

8
Out of stock

22

5

$2.28

In stock

23

5

$1.93

In stock

24

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock
