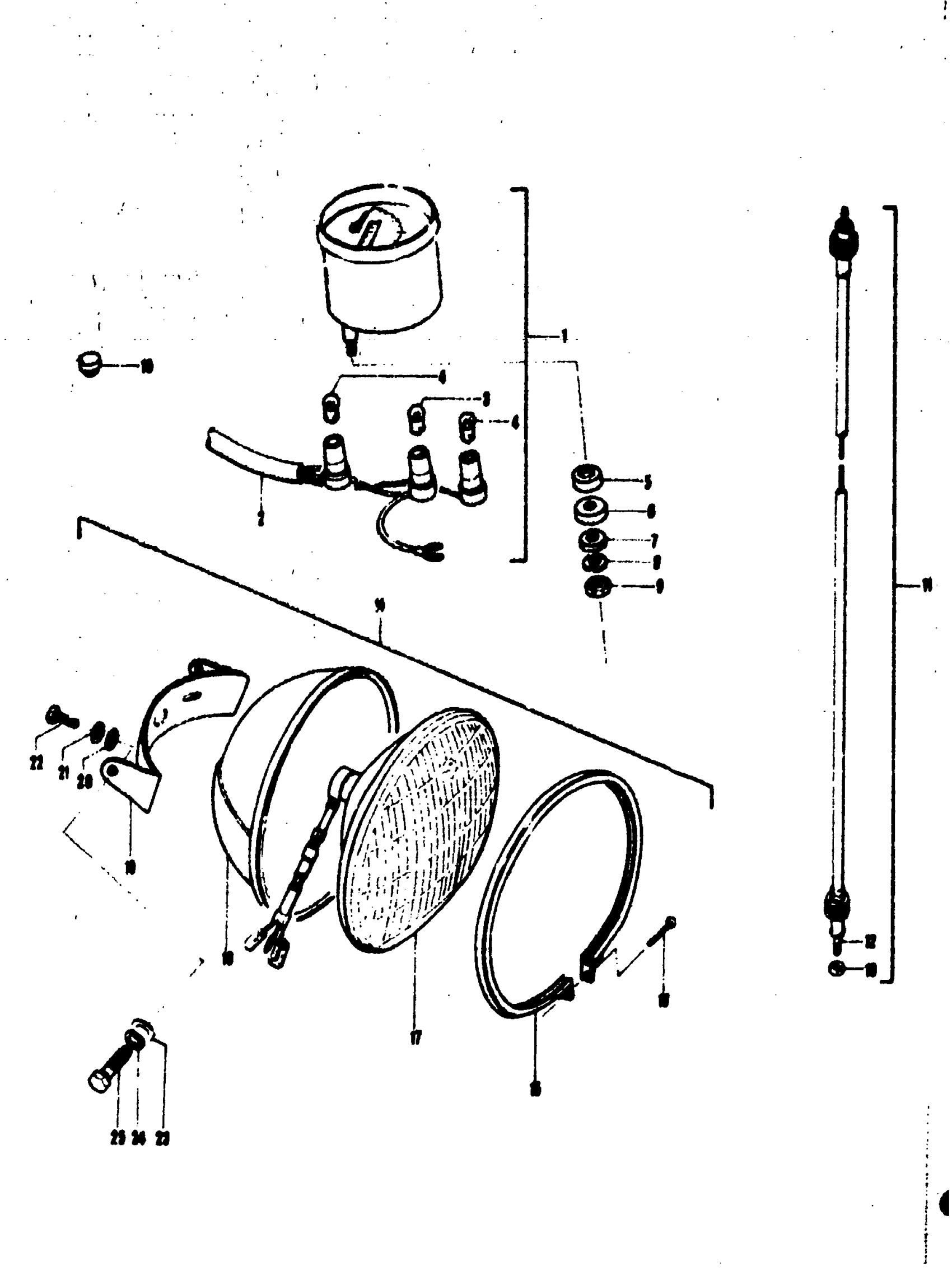

Suzuki TC120 (1971) SPEEDOMETER - HEADLAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 34100-20620.

34100-20610-999

Unavailable

2

SPEEDOMETER SOCKET ASS'Y

34170-20620

Unavailable

3

BULB | 6V, 1.5W

09471-06001

$2.18

4

BULB | 6V, 3W

09471-06002

$2.25

5

SPEEDOMETER CUSHION (A)

34955-20000

Unavailable

6

CUSHION This part replaces 09320-08004.

09320-08010

$1.99

7

WASHER,5.5X18X1 This part replaces 09160-05006.

09160-05006-XC0

Unavailable

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

NUT This part replaces 08311-11058.

08310-00057

$1.84

10

SPEEDOMETER CUSHION (B)

34957-05100

Unavailable

11

SPEEDOMETER CABLE ASS'Y | L:800; Includes Item(s) 12 - 13

34910-12330

Unavailable

12

INNER CABLE

34911-12330

Unavailable

13

OIL SEAL

34928-01030

$2.92

14

HEADLAMP ASS'Y | Includes Item(s) 15 - 22

35100-20610

Unavailable

15

RIM

35127-20610

Unavailable

16

SCREW

02111-04108

Unavailable

17

UNIT

35121-20611

Unavailable

18

UNIT RIM

35131-20610

Unavailable

19

ADJUSTING BRACKET

35151-20610

Unavailable

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

BOLT

01111-06107

Unavailable

23

WASHER This part replaces 08322-11107.

08322-01107

$2.15

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

BOLT | TC120II,TC120R

01121-10207

Unavailable
