1971 Suzuki TC120 Rear Wheel Diagram

← All diagrams

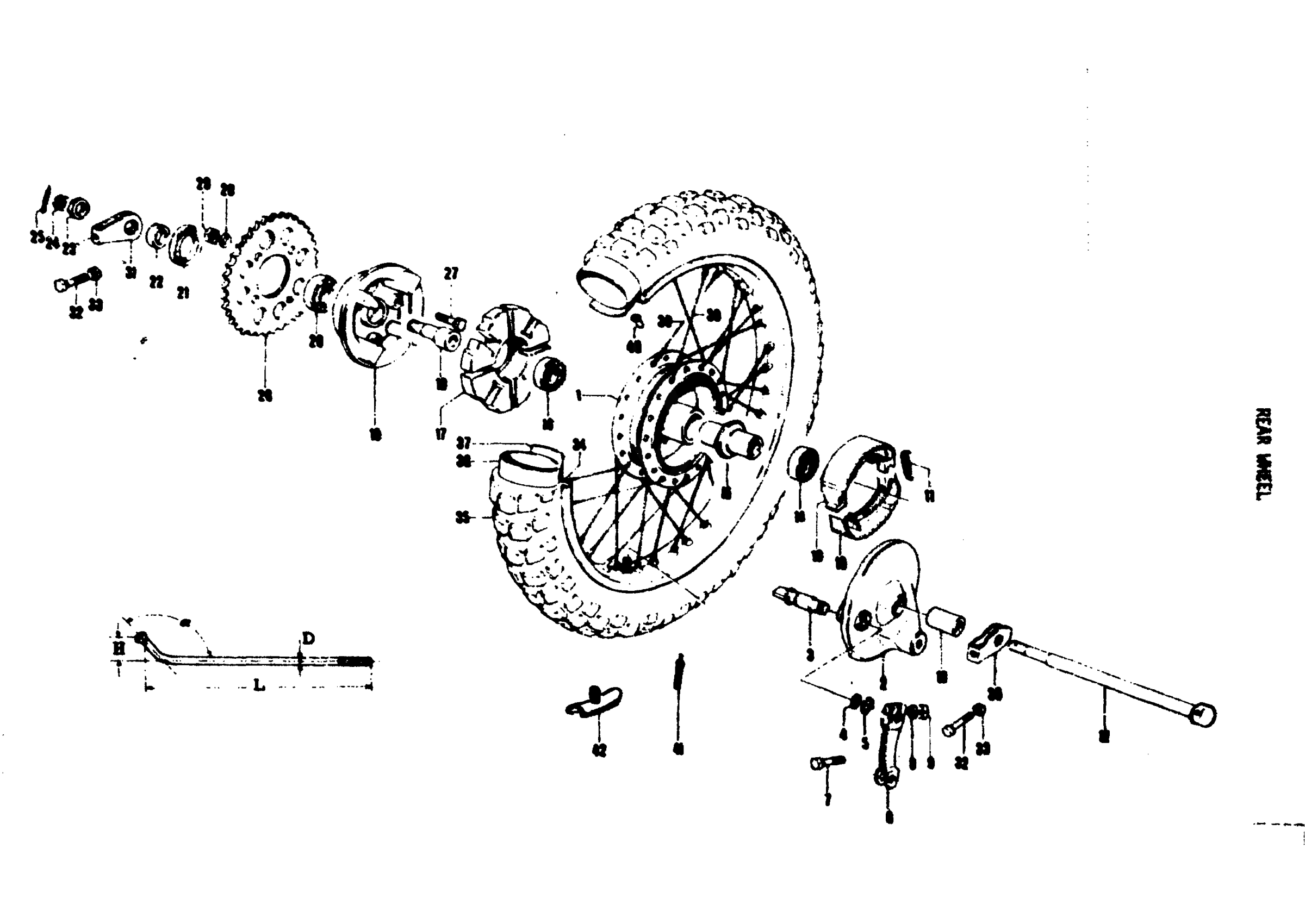

Find the part on the Rear Wheel diagram for your 1971 Suzuki TC120, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki TC120 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

REAR HUB ASS'Y | Includes Item(s) 1 - 25

64100-07610

—
Out of stock

1

REAR HUB DRUM

64110-07001

—
Out of stock

2

REAR HUB PANEL

64210-07000

—
Out of stock

3

BRAKE CAM SHAFT

54441-20000

—
Out of stock

4

1

$3.25

In stock

5

BRAKE CAM SHAFT DUST SEAL WAS | 12.5x20x1

09160-12011

1
Out of stock

6

RR BRAKE LEVER This part replaces 64451-20000.

64451-20001

1
Out of stock

7

BOLT, ADJUSTER | 6SCREW, L:30 This part replaces 09100-06050.

09100-06150

1
Out of stock

8

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

9

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

10

SHOE SET, BRAKE This part replaces 54410-07001.

54401-07810

2
Out of stock

11

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

12

REAR AXLE

64711-07611

1
Out of stock

13

REAR AXLE RH SPACER | 15.2x26x33

09180-15002

1
Out of stock

14

BEARING

08143-63020

—
Out of stock

15

REAR HUB BEARING SPACER | L:93

64730-07001

—
Out of stock

16

BEARING, LH This part replaces 08143-62020.

08143-62027

1
Out of stock

17

SHOCK ABSORBER, HUB This part replaces 64651-07000.

64651-07001

1
Out of stock

18

SPROCKET MOUNTING DRUM SHAFT

64761-07000

1
Out of stock

19

REAR SPROCKET MOUNTING DRUM

64611-07000

1
Out of stock

20

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

1
Out of stock

21

SEAL,OIL (27X47X7) | 22x42x6 This part replaces 09283-28002.

09285-28004

1
Out of stock

22

SPROCKET MOUNTING DRUM SHAFT | 20x25x13

09180-20004

1
Out of stock

23

NUT This part replaces 09140-18001.

09140-18501

1
Out of stock

24

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

25

PIN This part replaces 04111-30258.

04111-3030A

1
Out of stock

26

SPROCKET,REAR,N | NT:41 This part replaces 64511-20100.

64511-12B11

1
Out of stock

27

REAR SPROCKET BOLT

09105-08001

4
Out of stock

28

4

$2.28

In stock

29

4

$1.93

In stock

30

ADJUSTER, CHAIN RH This part replaces 61410-20100.

61410-28001

1
Out of stock

31

LH CHAIN ADJUSTER

61420-20100

—
Out of stock

32

CHAIN ADJUSTER BOLT | 6SCREW, L:38

09104-06002

2
Out of stock

33

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

34

RIM, WHEEL (1.60x18) | 1.60Ax18 This part replaces 65311-20120.

55311-05300

1
Out of stock

35

REAR TIRE | 3.00-18

65100-20210

—
Out of stock

36

TUBE ASSY,WHEEL | 3.00-18 This part replaces 55200-11601.

55200-26F01

1
Out of stock

37

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

1
Out of stock

38

REAR INNER SPOKE | OD:3.2, L:165 H:6, a:101

65321-20120

—
Out of stock

39

REAR OUTER SPOKE | OD:3.2, L:164.5 H:8.5, a:84

65322-20120

—
Out of stock

40

REAR SPOKE NIPPLE

65325-03020

—
Out of stock

41

INNER TUBE VALVE

55250-01000

—
Out of stock

42

BEAD STOPPER | OPT

55150-20700

—
Out of stock
