1971 Suzuki TC120 Handlebar - Control Cable Diagram

← All diagrams

Find the part on the Handlebar - Control Cable diagram for your 1971 Suzuki TC120, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

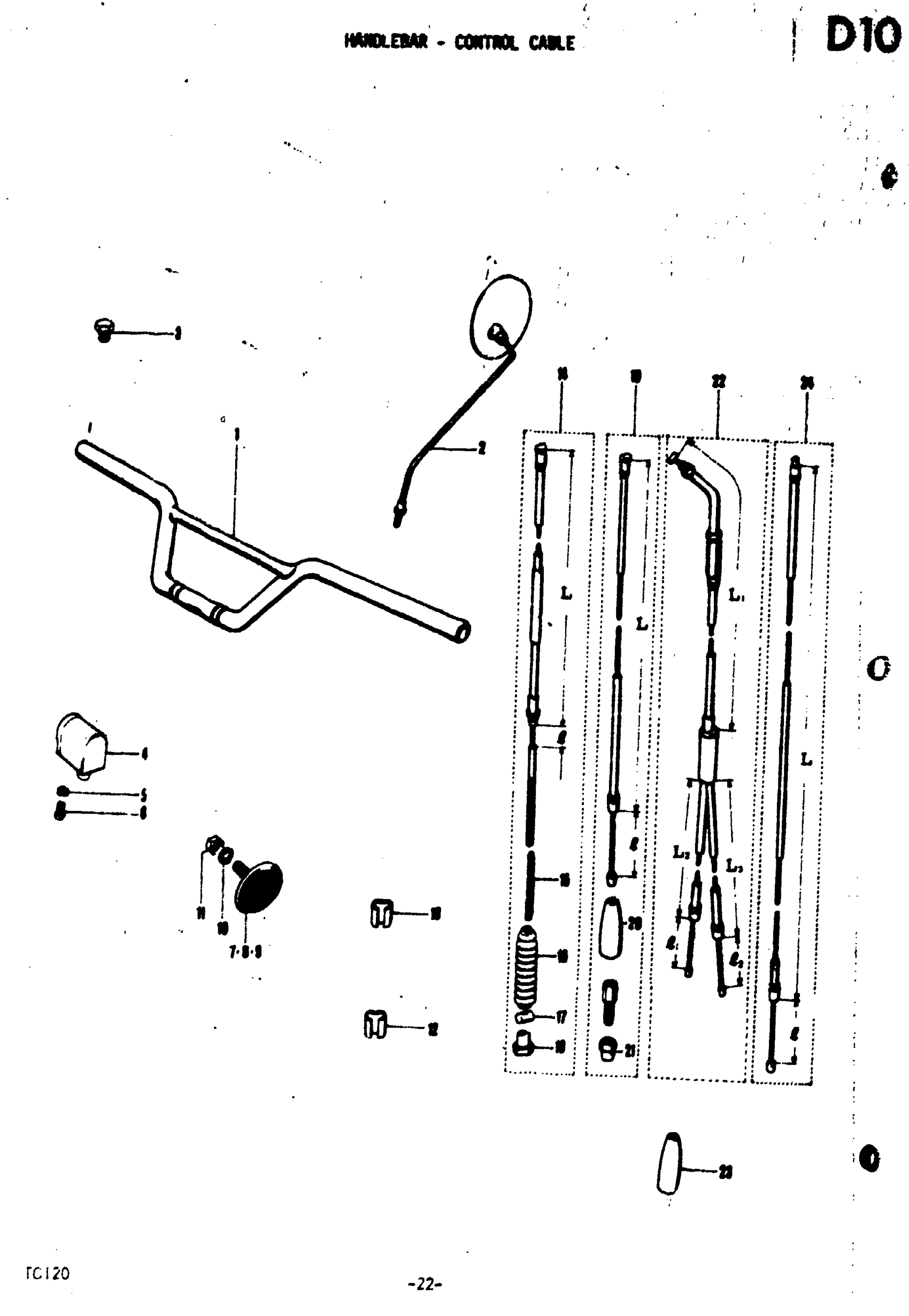

1971 Suzuki TC120 Handlebar - Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 56110-20202.

56110-20203

1
Out of stock

2

MIRROR ASSY,REA | TC120TC120II,TC120R This part replaces 56500-19600.

56500-35611

1
Out of stock

3

PLUG | TC120 This part replaces 09250-06001.

09250-06005

1
Out of stock

4

STEERING LOCK ASS'Y

51900-03012

—
Out of stock

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

6

SCREW This part replaces 02111-05108.

02112-05107

2
Out of stock

7

FRONT REFLEX REFLECTOR | TC120

35950-18612

2
Out of stock

8

FRONT RH REFLEX REFLECTOR | TC120II,TC120R

35950-22611

—
Out of stock

9

FRONT LH REFLEX REFLECTOR | TC120II,TC120R

35960-22612

—
Out of stock

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

11

NUT This part replaces 08311-11058.

08310-00057

2
Out of stock

12

CABLE CLIP NO.1 | TC120TC120II,TC120R

09408-00001

1
Out of stock

13

CABLE CLIP NO.2

09408-00002

1
Out of stock

14

BRAKE CABLE ASS'Y | L:1110, L:40; Includes Item(s) 15 - 18

58100-07731

—
Out of stock

15

BRAKE CABLE SPRING

09440-06003

1
Out of stock

16

BRAKE CABLE BOOT

09287-07001

1
Out of stock

17

BRAKE CABLE PIN

09209-10001

1
Out of stock

18

BRAKE CAM NUT | 5SCREW

09150-05101

1
Out of stock

19

CLUTCH CABLE ASS'Y | L:980, L:96; Includes Item(s) 20 - 21

58200-07711

1
Out of stock

20

CLUTCH CABLE BOOT

09287-10002

—
Out of stock

21

1

$1.93

In stock

22

NO DESCRIPTION AVAILABLE | L1:670, L2:200, L3:320 l1:55, l2:100 This part replaces 58300-07710.

58300-07X00

1
Out of stock

23

THROTTLE CABLE BOOT

09287-10003

—
Out of stock

24

STARTER CABLE ASS'Y | L:870, L:66

58410-08700

—
Out of stock
