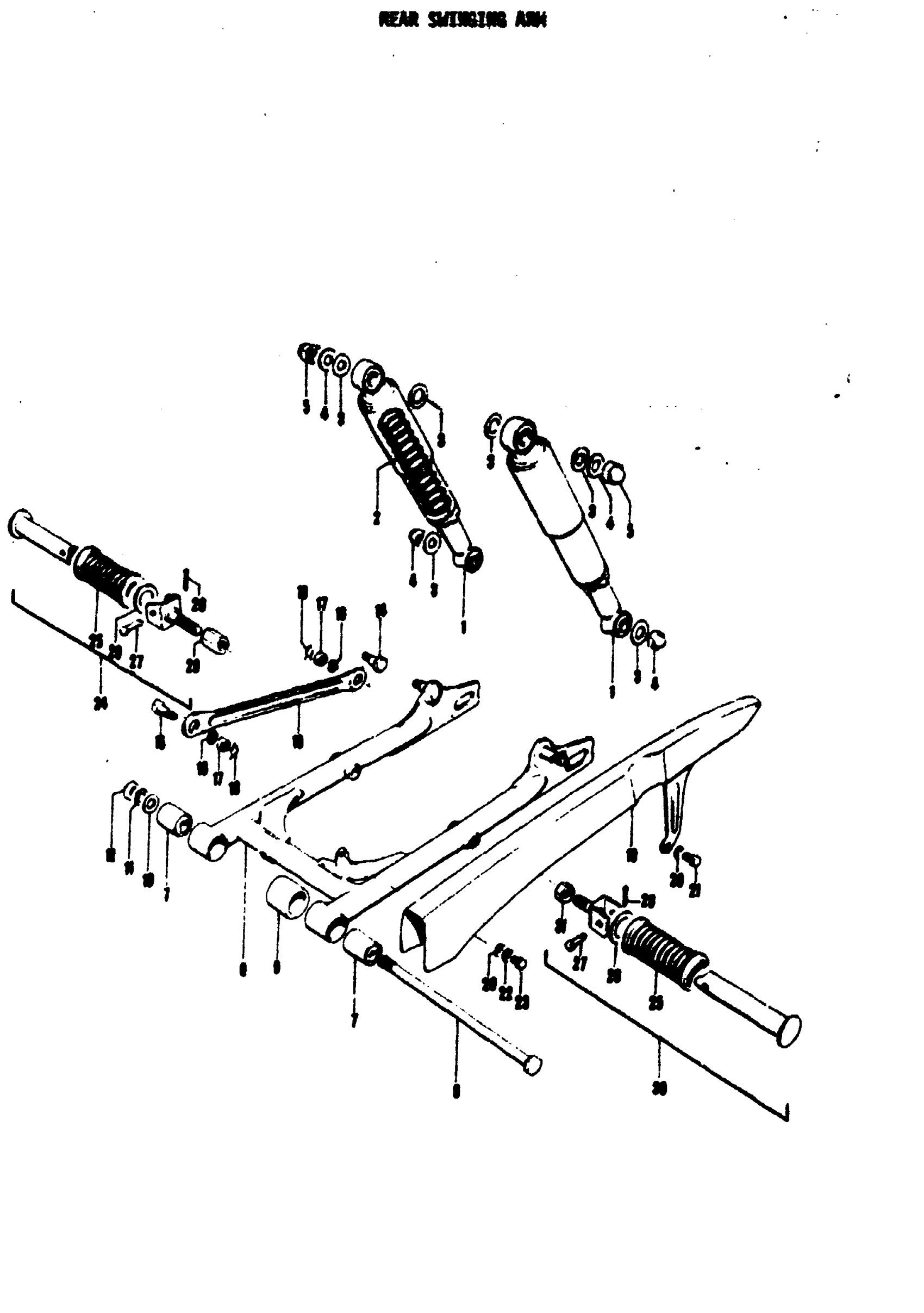

Suzuki TC120 (1971) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SHOCK ABSORBER ASS'Y | Includes Item(s) 2

62100-20010-019

Unavailable

2

SPRING

62211-12600

Unavailable

3

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

4

WASHER This part replaces 08322-11128.

08322-01127

$1.84

5

NUT This part replaces 08313-11107.

08313-10107

$2.50

6

REAR SWINGING ARM | Includes Item(s) 7

61100-20811-019

Unavailable

7

REAR SWINGING ARM BUSHING | 10x23x35

09319-10009

$7.62

8

NO DESCRIPTION AVAILABLE This part replaces 61211-07002.

61211-2060V

Unavailable

9

REAR SWINGING ARM PIVOT CUSHIO | 22x32x3022x32x30

09320-20003

Unavailable

10

WASHER This part replaces 08322-21108.

08322-01107

$2.15

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

REAR SWINGING ARM PIVOT NUT | 10SCREW

09140-10001

Unavailable

13

REAR TORQUE LINK

64310-20100

Unavailable

14

REAR TORQUE LINK BOLT

64331-01000

Unavailable

15

REAR TORQUE LINK FRONT BOLT | 8SCREW

09119-08012

Unavailable

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

REAR TORQUE LINK NUT | 8SCREW

09140-08008

$1.49

18

REAR TORQUE LINK CIRCLIP

09384-06001

$1.49

19

CHAIN CASE | CHROME PLATED

61310-20610

Unavailable

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13

21

BOLT

01111-06108

Unavailable

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

BOLT | TC120; 6SCREW, L:15 This part replaces 09100-06007.

09100-06067

Unavailable

23

BOLT | TC120II,TC120R

01111-06108

Unavailable

24

RH PILLION FOOTREST ASS'Y | Includes Item(s) 25 - 29

43600-20000

Unavailable

25

FOOTREST RUBBER

43612-03001

$5.15

26

WASHER This part replaces 09160-19004.

09160-19024

$2.65

27

PIN | OD:6, L:31

09200-06010

$1.72

28

COTTER PIN

04111-20188

Unavailable

29

FOOTREST NUT | 10SCREW

09159-10003

Unavailable

30

FOOTREST ASSY,P | Includes Item(s) 31 This part replaces 43600-03001.

43600-09D00

$27.30

31

NUT This part replaces 08312-31108.

08310-00107

$2.19
