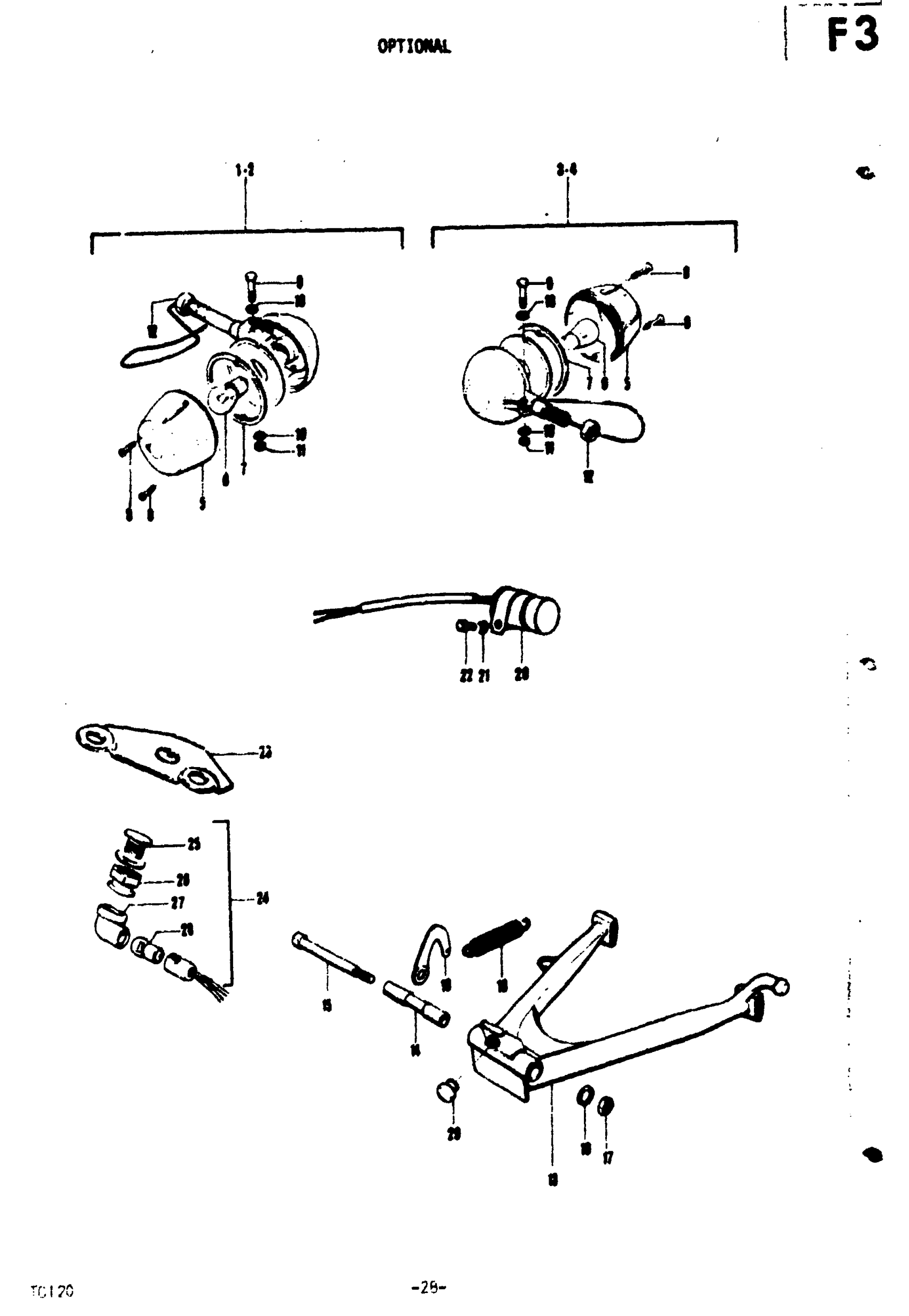

Suzuki TC120 (1971) OPTIONAL Diagram

#

Description
Price

1

FRONT RH TURN SIGNAL ASS'Y

35601-20610

Unavailable

2

FRONT LH TURN SIGNAL ASS'Y

35602-20610

Unavailable

3

REAR RH TURN SIGNAL ASS'Y

35603-20690

Unavailable

4

REAR LH TURN SIGNAL ASS'Y | Includes Item(s) 5 - 11

35604-20690

Unavailable

5

LENS

35612-12611

$12.50

6

BULB | 6V, 21CP

09471-06011

Unavailable

7

GASKET

35613-03610

$13.34

8

LENS SCREW

35623-12611

Unavailable

9

HOUSING BOLT

35625-12610

Unavailable

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-31067.

08310-00067

$2.13

12

NUT This part replaces 08311-31107.

08310-00107

$2.19

13

CENTER STAND

42100-12300

Unavailable

14

CENTER STAND SPACER

42211-03001

Unavailable

15

BOLT,10X107 This part replaces 09100-10018.

09100-10151

Unavailable

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

NUT This part replaces 08312-11108.

08310-00107

$2.19

18

HOOK,CENTER STA This part replaces 42251-03002.

42251-03004

Unavailable

19

SPRING This part replaces 09443-16005.

09443-16005-XC0

Unavailable

20

RELAY ASSY,TRN This part replaces 38610-20610.

38610-05X50

Unavailable

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

BOLT

01111-06128

Unavailable

23

TURN SIGNAL PILOT LAMP BRACKET

36341-20610

Unavailable

24

TURN SIGNAL PILOT LAMP ASS'Y | Includes Item(s) 25 - 28

36340-20610

Unavailable

25

LENS

36311-55320

Unavailable

26

HOLDER NUT

36332-01610

Unavailable

27

LAMP HOLDER

36334-01610

Unavailable

28

BULB

09471-06001

$2.18

29

CENTER STAND CUSHION

09321-10002

$2.22
