1971 Suzuki TC120 OIL Pump Diagram

← All diagrams

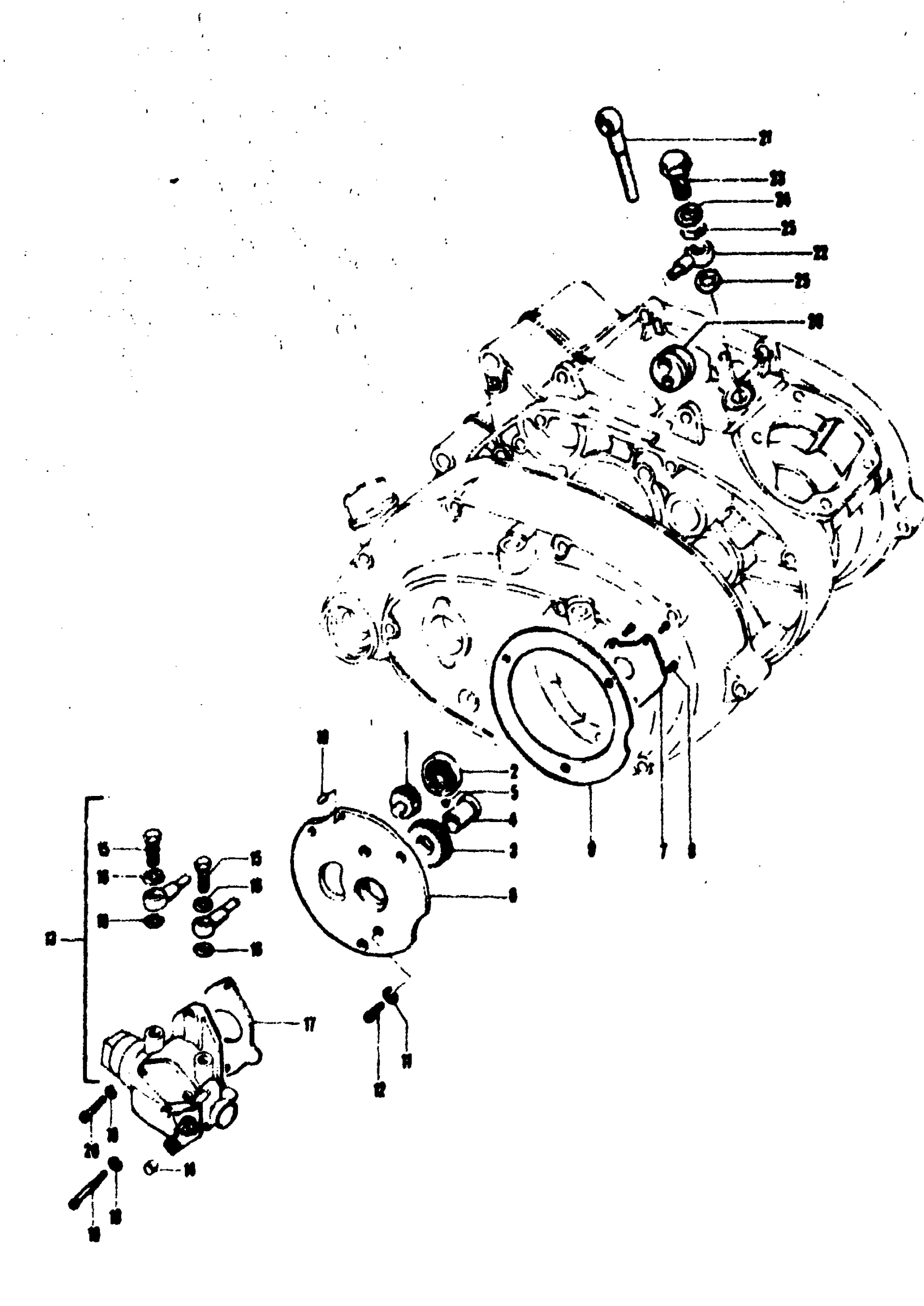

Find the part on the OIL Pump diagram for your 1971 Suzuki TC120, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki TC120 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

OIL PUMP DRIVE GEAR BOX ASS'Y | Includes Item(s) 1 - 8

16300-03301

1
Out of stock

1

OIL PUMP DRIVE GEAR | NT:12

16311-03300

1
Out of stock

2

BEARING

08110-06080

1
Out of stock

3

OIL PUMP DRIVEN GEAR | NT:28

16321-03300

1
Out of stock

4

OIL PUMP GEAR SHAFT

16320-03808

—
Out of stock

5

DOWEL PIN | OD:2,L:5.5

09261-02002

1
Out of stock

6

OIL PUMP DRIVE GEAR BOX

16341-03837

—
Out of stock

7

OIL PUMP DRIVE GEAR BOX PLATE

16351-03301

1
Out of stock

8

SCREW This part replaces 02121-03088.

02122-0308A

3
Out of stock

9

GASKET,OIL PMP This part replaces 16381-03300.

16381-03301

1
Out of stock

10

PIN (4X13.8)

04221-04089

1
Out of stock

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock

12

OIL PUMP GEAR BOX SCREW

09125-05109

1
Out of stock

13

OIL PUMP ASS'Y | Includes Item(s) 14 - 16

16000-20819

—
Out of stock

14

1

$5.18

In stock

15

UNION BOLT | 6SCREW

09360-06005

2
Out of stock

16

GASKET | 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

4
Out of stock

17

1

$2.92

In stock

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

19

1

$2.10

In stock

20

SCREW

02111-05128

—
Out of stock

21

NO DESCRIPTION AVAILABLE This part replaces 16810-20230.

16810-20231

1
Out of stock

22

OIL OUTLET HOUSE | TC120; ID:2, OD:4

16820-20230

—
Out of stock

22

OIL OUTLET HOSE | TC120II,TC120R

16820-20231

1
Out of stock

23

CHECK VALVE | TC120

16710-11011

—
Out of stock

23

UNION BOLT | TC120II,TC120R

16721-58000

1
Out of stock

24

1

$1.58

In stock

25

2

$2.25

In stock

26

NO DESCRIPTION AVAILABLE This part replaces 16819-07200.

16819-07201

1
Out of stock
