1971 Suzuki TC120 Crankcase - Crankcase Cover Diagram

← All diagrams

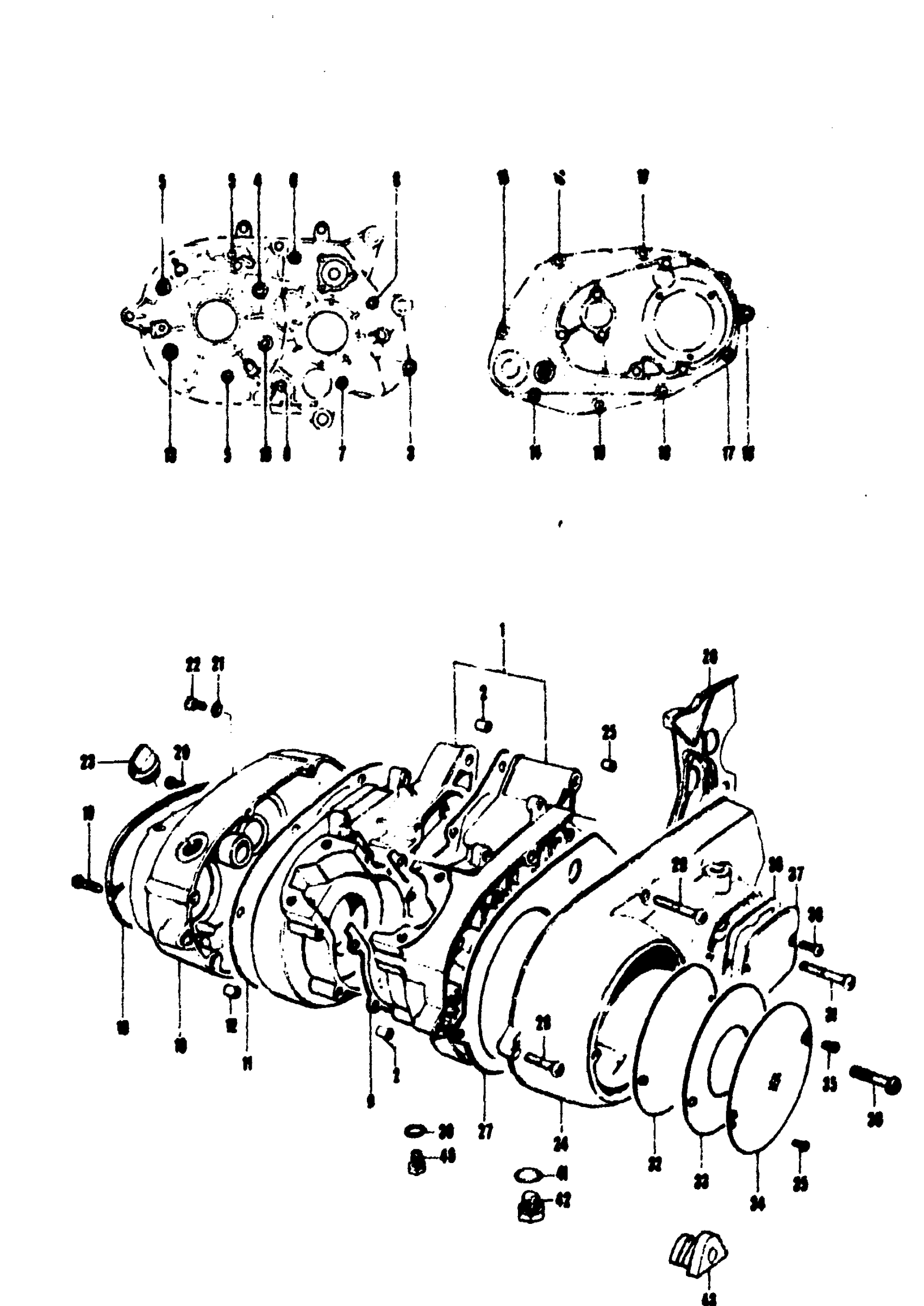

Find the part on the Crankcase - Crankcase Cover diagram for your 1971 Suzuki TC120, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki TC120 Crankcase - Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASS'Y | TC120; INC.09319-15002 (DRIVE SHAFTBUSHING)

11301-07835

—
Out of stock

1

CRANKCASE ASS'Y | TC120II,TC120R; INC.09319-15002 (DRIVE SHAFT BUSHING); Includes Item(s) 2 - 8

11302-07835

—
Out of stock

2

DOWEL PIN

04211-09129

2
Out of stock

3

SCREW This part replaces 02112-06208.

02112-06207

1
Out of stock

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

1
Out of stock

5

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

3
Out of stock

6

SCREW This part replaces 02112-06708.

02112-06707

2
Out of stock

7

SCREW This part replaces 02112-06808.

02112-06807

1
Out of stock

8

SCREW This part replaces 02112-06858.

02112-06857

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 11481-07000.

11481-07010

1
Out of stock

10

CRANKCASE RH COVER | TC120

11341-07612

—
Out of stock

10

NO DESCRIPTION AVAILABLE | TC120II,TC120R This part replaces 11341-07202.

11341-07203

—
Out of stock

11

GASKET,CLUTCH C This part replaces 11482-07000.

11482-07010

1
Out of stock

12

DOWEL PIN

04211-09129

2
Out of stock

13

SCREW This part replaces 02112-06258.

02112-06257

3
Out of stock

14

SCREW This part replaces 02112-06358.

02112-06357

1
Out of stock

15

SCREW This part replaces 02112-06608.

02112-06607

1
Out of stock

16

SCREW This part replaces 02112-06658.

02112-06657

4
Out of stock

17

SCREW This part replaces 02112-06758.

02112-06757

1
Out of stock

18

OIL PUMP COVER

11411-07201

1
Out of stock

19

SCREW This part replaces 02111-05168.

02112-05167

1
Out of stock

20

SCREW

02111-05208

—
Out of stock

21

OIL LEVEL SCREW GASKET

09168-06001

1
Out of stock

22

OIL LEVEL SCREW | 6SCREW, L:12

09247-06001

—
Out of stock

23

PLUG SET | 20SCREW This part replaces 09259-20003.

09200-20811

1
Out of stock

24

CRANKCASE LH COVER | TC120

11351-07403

—
Out of stock

24

CRANKCASE LH COVER | TC120; ~F.NO.-23881.

11351-07402

—
Out of stock

24

CRANKCASE LH COVER | TC120II,TC120R

11351-20201

1
Out of stock

25

DOWEL PIN

04211-09129

1
Out of stock

26

ENGINE SPROCKET COPER

11371-07000

—
Out of stock

27

LH CRANKCASE COVER GASKET | F.NO.24667~

11483-07400

1
Out of stock

28

SCREW

02111-05258

—
Out of stock

29

SCREW

02111-06558

—
Out of stock

30

SCREW

02111-06508

—
Out of stock

31

SCREW

02111-06458

—
Out of stock

32

GENERETOR INSPACTION CAP GASKE | F.NO.24667~

11491-07400

1
Out of stock

33

GENERATOR INSPECTION CAP GASKE | TC120; 60x120x1

11491-07000

1
Out of stock

34

GENERATOR INSPECTION CAP | 0D:119.5

11381-07000

—
Out of stock

35

SCREW

02111-05088

—
Out of stock

36

REDUCTION ARM COVER GASKET

11498-07402

1
Out of stock

37

REDUCTION ARM COVER

11388-07401

1
Out of stock

38

SCREW This part replaces 02111-05108.

02112-05107

2
Out of stock

39

CRANK DRAIN PLUG GASKET

09168-10002

1
Out of stock

40

CRANK OIL DRAIN PLUG | 10 SCREW L:12

09247-10001

1
Out of stock

41

OIL DRAIN PLUG GASKET | 14x19.2x2

09168-14002

1
Out of stock

42

PLUG (MAGNETO) | 14SCREW,L:12 This part replaces 09247-14001.

09247-14002

1
Out of stock

43

GROMMET | F.NO.24667~

09309-02002

—
Out of stock
