Partiron

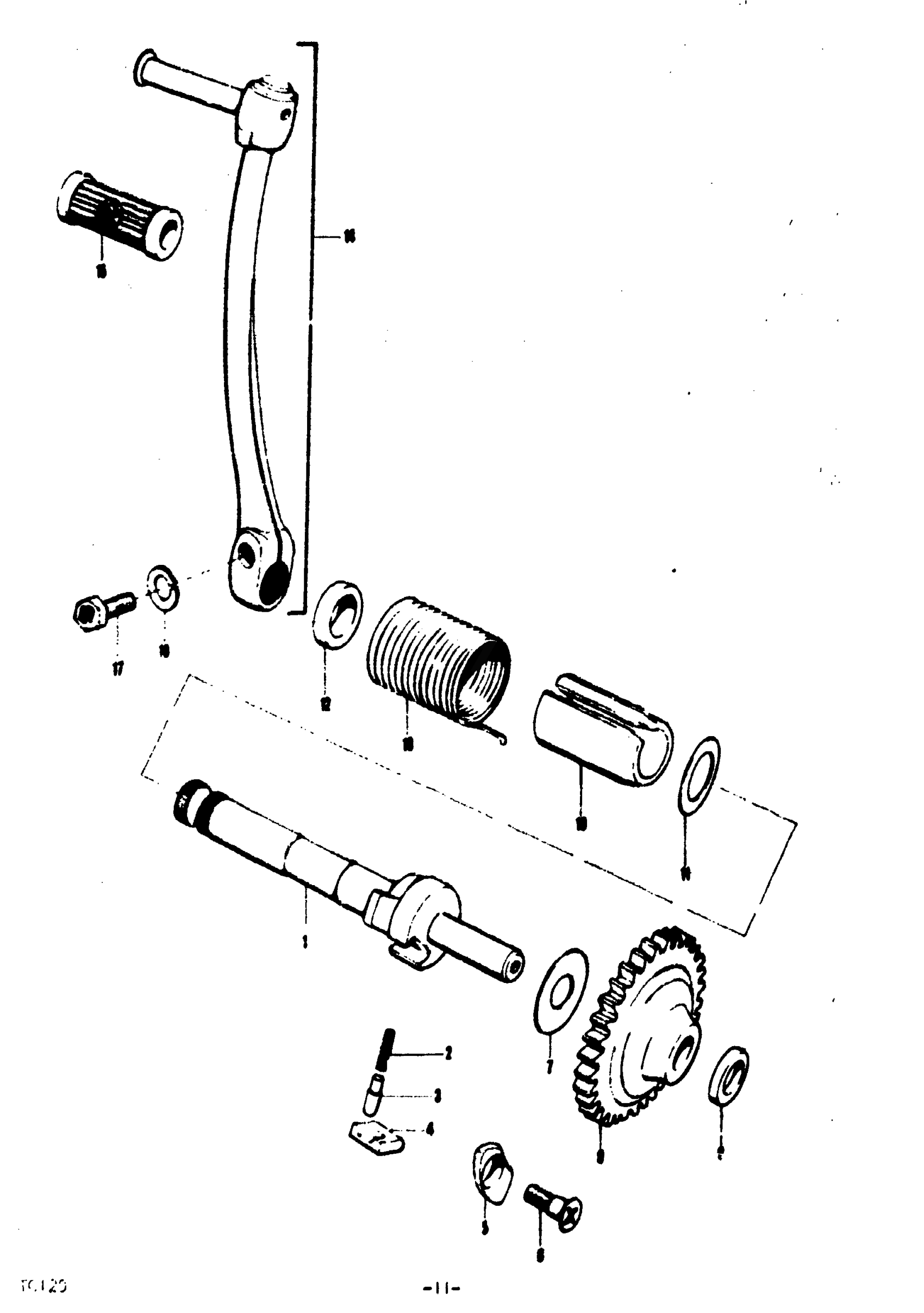

Suzuki TC120 (1971) KICK STARTER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 26211-07000.

26211-07001

Unavailable

2

KICK STARTER SHAFT PAWL SPRING

09440-04010

$1.54

3

KICK STARTER SHAFT PAWL ROLLER

09209-05011

$2.20

4

KICK STARTER PAWL

26231-16400

Unavailable

5

KICK STARTER STOPPER

26232-01000

$6.38

6

KICK STARTER STOPPER SCREW

09139-06002

$2.38

7

THRUST WASHER

08211-12302

$2.16

8

KICK STARTER DRIVE GEAR | NT:32

26241-03000

Unavailable

9

KICK STARTER DRIVE GEAR SPACER | 12x20x3.5

09180-12010

Unavailable

10

KICK STARTER SHAFT RETURN SPRI

26221-08030

Unavailable

11

KICK STARTER SHAFT THRUST WASH | 16x30.5x116x30.5x1

09160-16003

$2.92

12

SEAL,OIL(16X30X | 16x30x8 This part replaces 09285-16002.

09285-16005

$2.75

13

KICK STARTER SHAFT RETURN SPRI

09448-37005

Unavailable

14

KICK STARTER LEVER ASS'Y | Includes Item(s) 15

26300-08000

Unavailable

15

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

BOLT This part replaces 01122-08258.

01500-08257

$2.50
