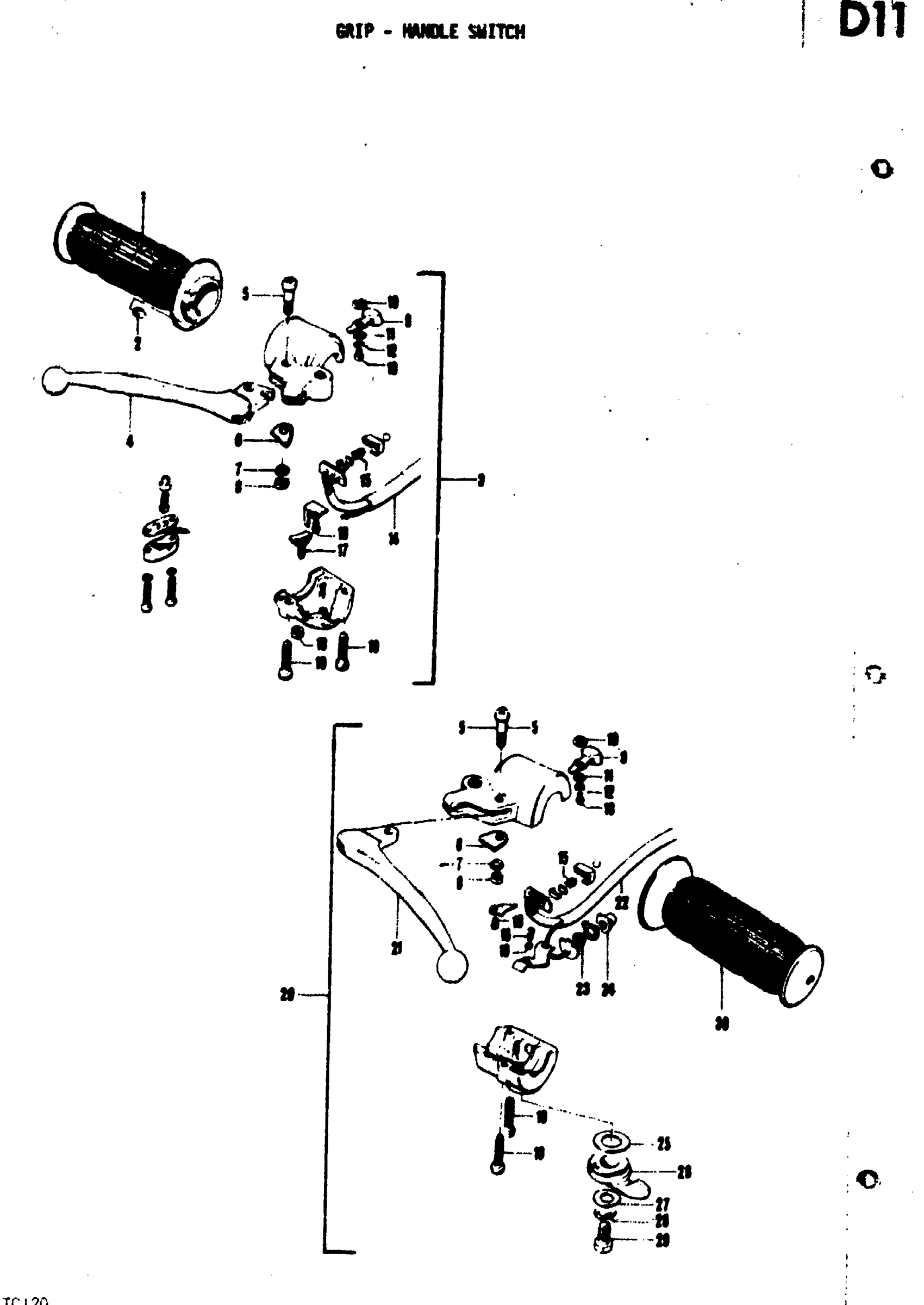

Suzuki TC120 (1971) GRIP - HANDLE SWITCH Diagram

#

Description
Price

1

THROTTLE GRIP ASS'Y

57110-20601

$19.93

2

THROTTLE CABLE END PLACE

58631-07010

$3.56

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 - 19 This part replaces 57300-20600.

57300-22212

Unavailable

4

BRAKE LEVER This part replaces 57421-20010.

57421-27212

$25.35

5

SCREW This part replaces 57431-01011.

57431-01012

$5.24

6

LEVER SPACER

57435-20010

Unavailable

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

NUT This part replaces 08311-11058.

08310-00057

$1.84

9

SWITCH KNOB

57320-01011

Unavailable

10

SWITCH KNOB SPRING WASHER

57334-01010

Unavailable

11

WASHER This part replaces 08322-21038.

08322-01037

$1.93

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

13

SCREW | 8SCREW, L:5

09125-03103

Unavailable

14

WIRING HARNESS | L:750

57340-20600

Unavailable

15

SWITCH CONTACT SPRING

57337-01010

Unavailable

16

SCREW

09125-03103

Unavailable

17

THROTTLE GRIP ADJUSTER

57390-07011

Unavailable

18

NUT This part replaces 08311-11058.

08310-00057

$1.84

19

SCREW,5X22 | 5SCREW, L:22 This part replaces 09125-05105.

09125-05105-XC0

$4.10

20

LH SWITCH ASS'Y | Includes Item(s) 21 - 29

57500-21010

Unavailable

21

LEVER, CLUTCH This part replaces 57621-20010.

57621-27210

Unavailable

22

LH SWITCH WIRING HARNESS

57540-20210

Unavailable

23

HORN BUTTON SPRING

57382-01311

Unavailable

24

HORN BUTTON

57370-01311

Unavailable

25

STARTER LEVER ADJUSTING WASHE

58722-03010

$3.71

26

LEVER, STARTER This part replaces 58721-03011.

58721-25611

Unavailable

27

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

$2.30

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

BOLT

01111-06128

Unavailable

30

LH GRIP

57211-20601

$11.75
