1971 Suzuki TC120 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1971 Suzuki TC120, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

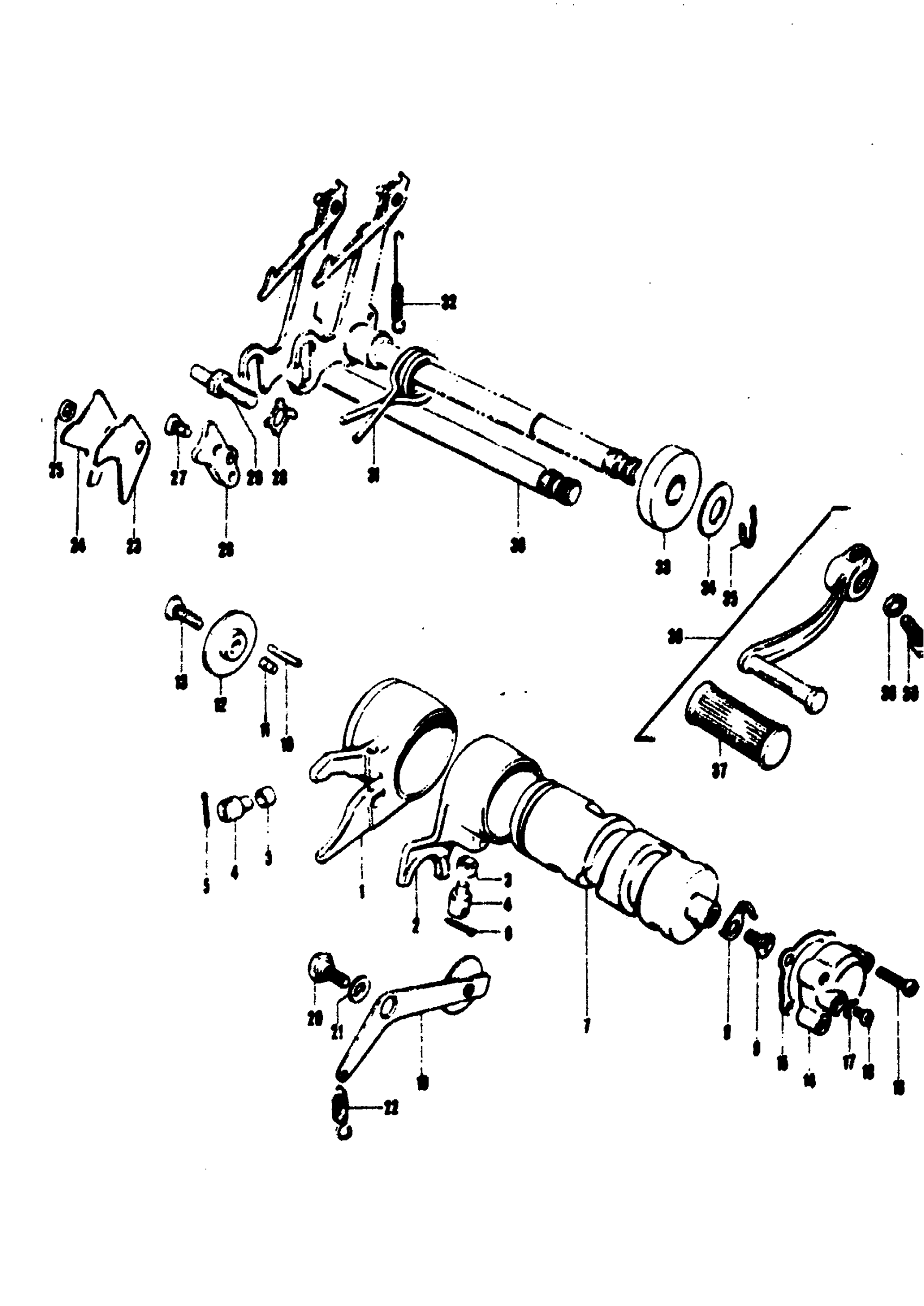

1971 Suzuki TC120 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOW SPEED GEAR SHIFTING

25211-07401

1
Out of stock

2

HIGH SPEED GEAR SHIFTING

25221-07400

1
Out of stock

3

ROLLER | 6x9.8x66x9.8x6 This part replaces 09180-06004.

09180-06086

2
Out of stock

4

GEAR SHIFTING FORK GUIDE

09209-10002

2
Out of stock

5

PIN This part replaces 04111-25258.

04111-2530A

1
Out of stock

6

1

$1.31

In stock

7

GEAR SHIFTING CAM

25311-07400

1
Out of stock

8

CONTACT, SWITCH This part replaces 37711-05100.

37711-05101

1
Out of stock

9

SCREW

02121-06128

—
Out of stock

10

GEAR SHIFTING CAM PIN (A) | OD:4, L:20

09261-04003

3
Out of stock

11

GEAR SHIFTING CAM PIN (B) | L:8.5

09201-04002

2
Out of stock

12

RETAINER, DRIVE PIN This part replaces 25322-03000.

25322-46000

1
Out of stock

13

SCREW

02121-06208

—
Out of stock

14

BODY,CHANGE SWI This part replaces 37721-05100.

37721-05101

1
Out of stock

15

NEUTRAL INDICATOR SWITCH GASKE

37712-01000

1
Out of stock

16

3

$1.34

In stock

17

WASHER This part replaces 08322-21038.

08322-01037

1
Out of stock

18

SCREW This part replaces 02111-03048.

02112-03047

1
Out of stock

19

GEAR SHIFTING CAM STOPPER

25350-07000

1
Out of stock

20

GEAR SHIFTING CAM STOPPER WASH | 6.5x13x16.5x13x1

09160-06008

1
Out of stock

21

GEAR SHIFTING CAM STOPPER BOLT | 6SCREW

09111-06003

1
Out of stock

22

GEAR SHIFTING CAM STOPPER SPRI

09443-07005

1
Out of stock

23

GEAR SHIFTING CAM STOPPER PAWL

25371-07400

—
Out of stock

26

GEAR SHIFTING CAM STOPPER PAWL

25372-07400

1
Out of stock

25

E RING This part replaces 08332-11059.

08332-1105A

1
Out of stock

26

GEAR SHIFTING CAM GUIDE

25340-07400

1
Out of stock

27

SCREW This part replaces 02121-06168.

02122-06167

2
Out of stock

28

GEAR SHIFTING ARM STOPPER LOCK | ID:10, T:1.2ID:10, T:1.2

09167-10001

1
Out of stock

29

GEAR SHIFTING ARM STOPPER

25671-19000

1
Out of stock

30

GEAR SHIFTING SHAFT

25510-07401

1
Out of stock

31

GEAR SHIFTING SHAFT RETURN SPR

09444-26006

—
Out of stock

32

GEAR SHIFTING PAWL RETURN SPRI

09443-06008

1
Out of stock

33

OIL SEAL (12X22X9) | 12X22X9 This part replaces 09285-12002.

09285-12006

1
Out of stock

34

WASHER (12.5X26X1.6) | TC120 This part replaces 09160-12020.

09160-12089

1
Out of stock

35

CIRCLIP | TC120 This part replaces 09384-12001.

08331-3112A

1
Out of stock

36

GEAR SHIFTING LEVER ASS'Y | Includes Item(s) 37

25600-07401

1
Out of stock

37

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-03201.

25652-16510

1
Out of stock

38

1

$2.28

In stock

39

BOLT This part replaces 01112-06208.

01500-06207

1
Out of stock
