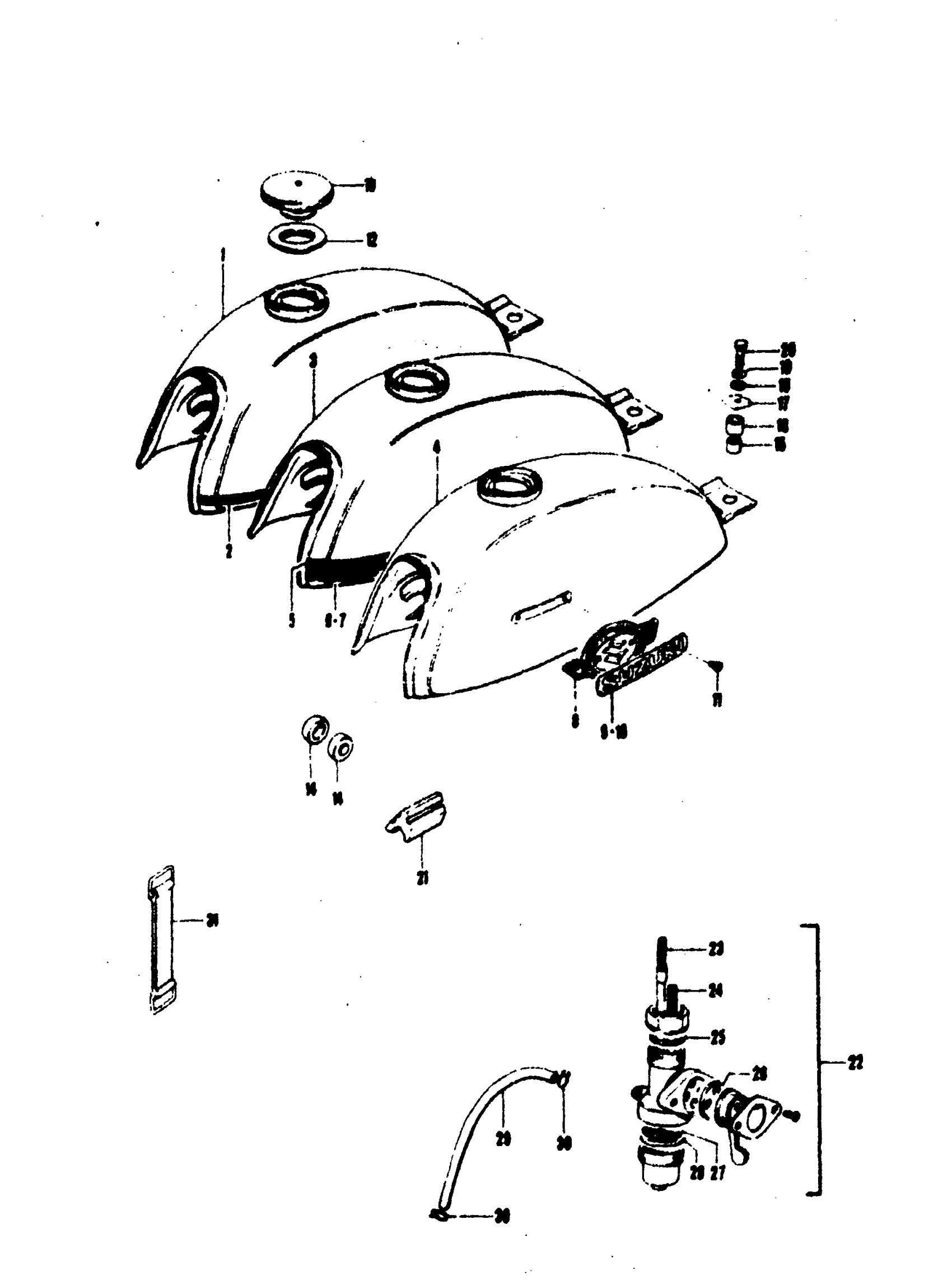

Suzuki TC120 (1971) FUEL TANK - FUEL COCK Diagram

#

Description
Price

1

FUEL TANK | TC120; PRIMARY PAINTED

44110-20200

Unavailable

1

FUEL TANK | TC120

44110-20200-656

Unavailable

1

FUEL TANK | TC120; Includes Item(s) 2 - 2

44110-20200-658

Unavailable

2

STRIPING TAPE | TC120; WHITE, W:10, L:3000

99000-78010

Unavailable

2

STRIPING TAPE | TC120; RED, W:10, L:3000

99000-78130

Unavailable

3

FUEL TANK | TC120II

44110-20200-183

Unavailable

3

FUEL TANK | TC120II

44110-20200-186

Unavailable

4

NO DESCRIPTION AVAILABLE | TC120R This part replaces 44110-20201-185.

44110-20201-737

Unavailable

5

STRIPING TAPE | TC120II; BLACK

99000-78290

Unavailable

6

RH STRIPING TAPE | TC120II; W:25, L:486

68115-20201

Unavailable

7

LH STRIPING TAPE | TC120II; W:25, L:486

68125-20201

Unavailable

8

FUEL TANK EMBLEM | TC120,TC120II This part replaces 68111-18100.

68111-22200

Unavailable

9

FUEL TANK RH EMBLEM | TC120R

68111-20200

Unavailable

10

FUEL TANK LH EMBLEM | TC120R

68121-20200

Unavailable

11

TANK EMBLEM SCREW | TC120,TC120II; 4SCREW, L:10

09125-04108

Unavailable

11

SCREW | TC120R

02131-03068

Unavailable

12

FUEL TANK CAP GASKET

44248-11000

Unavailable

13

CAP, FUEL TANK This part replaces 44210-11000.

44210-36200

Unavailable

14

FUEL TANK FRONT CUSHION | OD:27

09329-10004

Unavailable

15

FUEL TANK REAR SPACER | 8.6x12x22

09180-08040

Unavailable

16

FUEL TANK REAR SPACER | 12x15x20

09344-12003

Unavailable

17

FUEL TANK REAR CUSHION

09329-15001

Unavailable

18

WASHER, EXHAUST SUPPORT | 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

BOLT This part replaces 01121-08358.

01500-0835B

$3.04

21

FUEL TANK REAR CUSHION

44541-20200

Unavailable

22

COCK ASSY FUEL | Includes Item(s) 23 - 28 This part replaces 44300-05110.

44300-05115

Unavailable

23

FILTER NET

44330-01011

Unavailable

24

FILTER NET

44362-05110

Unavailable

25

GASKET

44348-01010

Unavailable

26

COCK VALVE GASKET

44341-05110

Unavailable

27

COCK FLLTER NET

44344-05110

Unavailable

28

CUP GASKET

44346-05110

Unavailable

29

HOSE,5X10X600 | ID:5 This part replaces 09343-05031.

44421-13ER0

$10.06

30

CLIP

09386-08001

Unavailable

31

TOOL FITTING BAND

09462-00033

$3.20
