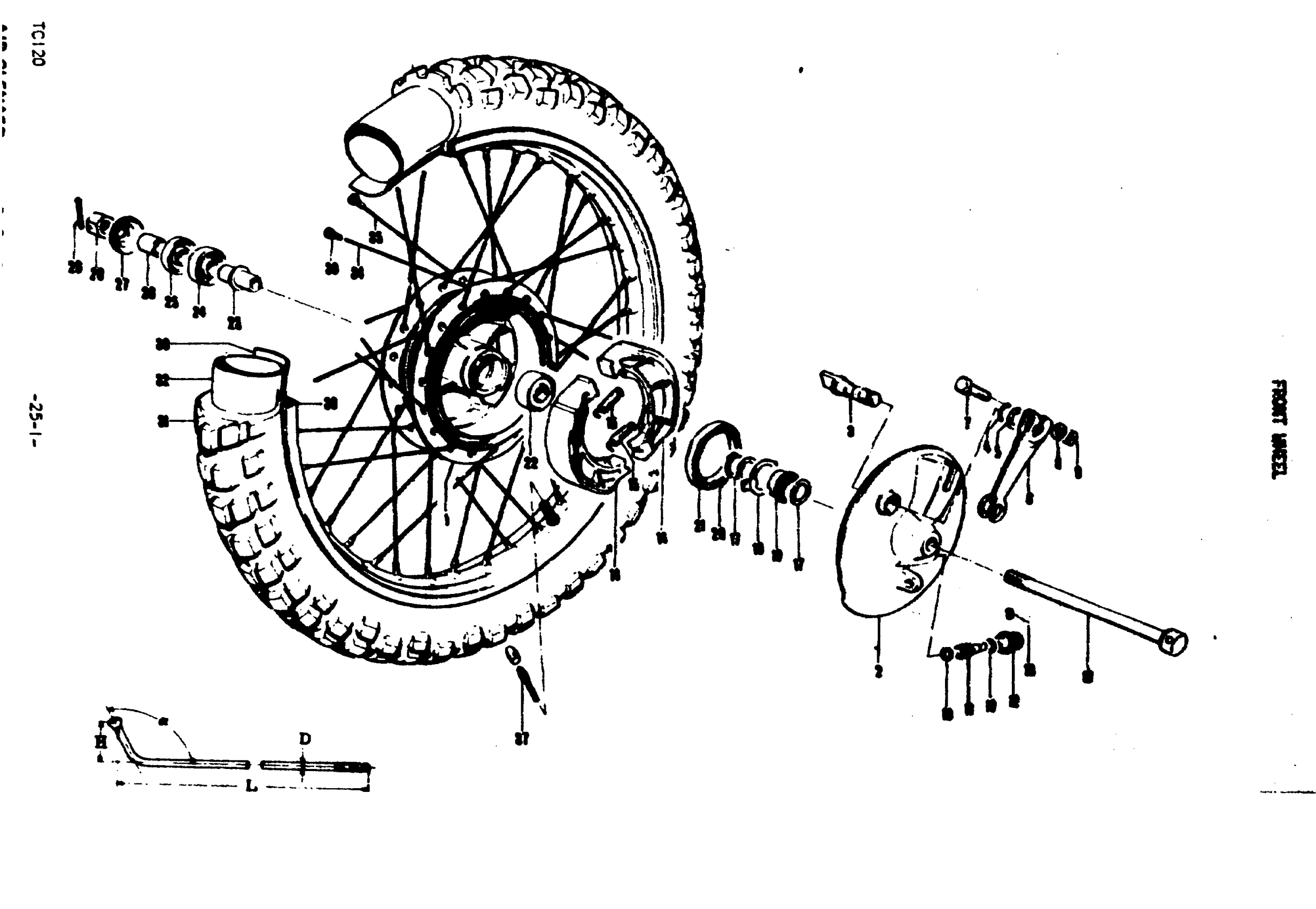

Suzuki TC120 (1971) FRONT WHEEL Diagram

#

Description
Price

0

FRONT HUB ASS'Y | Includes Item(s) 1 - 29

54100-07620

Unavailable

1

FRONT HUB DRUM

54110-07000

Unavailable

2

PANEL,FRONT BRA This part replaces 54210-07002.

54210-07005

Unavailable

3

BRAKE CAM SHAFT

54441-20000

Unavailable

4

BRAKE CAM SHAFT DUST SEAL | ID:12, D.:2.4

09280-12001

$2.90

5

BRAKE CAM SHAFT DUST SEAL WAS | 12.5x20x1

09160-12011

$1.54

6

FRONT BRAKE CAM LEVER

54451-03001

Unavailable

7

BOLT, ADJUSTER | 6SCREW, L:4.3 This part replaces 09100-06050.

09100-06150

$2.30

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

11

NO DESCRIPTION AVAILABLE | NT:10 This part replaces 54621-03000.

54621-03001

Unavailable

12

SPEEDOMETER GEAR OUTER BUSHIN

54632-01001

$12.80

13

SCREW,3X4.3 | 3SCREW, L:4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

14

SHOE SET, BRAKE This part replaces 54410-07001.

54401-07810

Unavailable

15

SPRING This part replaces 09443-07001.

09443-07025

$2.08

16

NO DESCRIPTION AVAILABLE This part replaces 54711-07611.

54711-07612

Unavailable

17

SPEEDOMETER DRIVEN GEAR THRUS | 18.5x24x1

09160-18002

$2.38

18

NO DESCRIPTION AVAILABLE | NT:26 This part replaces 54611-07600.

54611-07601

Unavailable

19

SPEEDOMETER GEAR DRIVER

54661-07000

$4.52

20

CIRCLIP

08331-11189

Unavailable

21

FRONT HUB PANEL OIL SEAL | 48x6x7

09283-48001

Unavailable

22

B1 12X37X12 BEA This part replaces 08143-63010.

08143-6301B

$19.20

23

FRONT HUB BEARING SPACER | L:47

54730-07000

Unavailable

24

BEARING

08113-63010

$19.57

25

SEAL,OIL(17X38X | 18x37x5 This part replaces 09284-18001.

09284-18006

$5.10

26

FRONT AXLE SPACER | 12x18x19.4

09180-12007

Unavailable

27

FRONT HUB DRUM DUST SEAL

54892-07000

Unavailable

28

NUT This part replaces 08314-31128.

08314-3112A

$2.41

29

PIN This part replaces 04111-30258.

04111-3030A

$1.49

30

RIM, WHEEL (1.60x18) | 1.60Ax18 This part replaces 65311-20120.

55311-05300

$129.50

31

FRONT TIRE | 2.75-18

55100-20210

Unavailable

32

TUBE ASSY,WHEEL | 2.75-18 This part replaces 55200-11601.

55200-26F01

$31.27

33

IN TUBE PROTECT | 22-18 This part replaces 55261-11010.

55261-26F10

$4.39

33

SPOKE SET FR | Includes Item(s) 34 - 36 This part replaces 55300-12825.

55320-12100

Unavailable

34

INNER SPOKE | OD:2.9 L:165.5 H:5.4 a:102

55321-12120

Unavailable

35

OUTER SPOKE | OD:2.9 L:165 H:8.2 a:85

55322-12120

Unavailable

36

SPOKE NIPPLE

55325-03020

Unavailable

37

INNER TUBE VALVE

55250-01000

Unavailable
