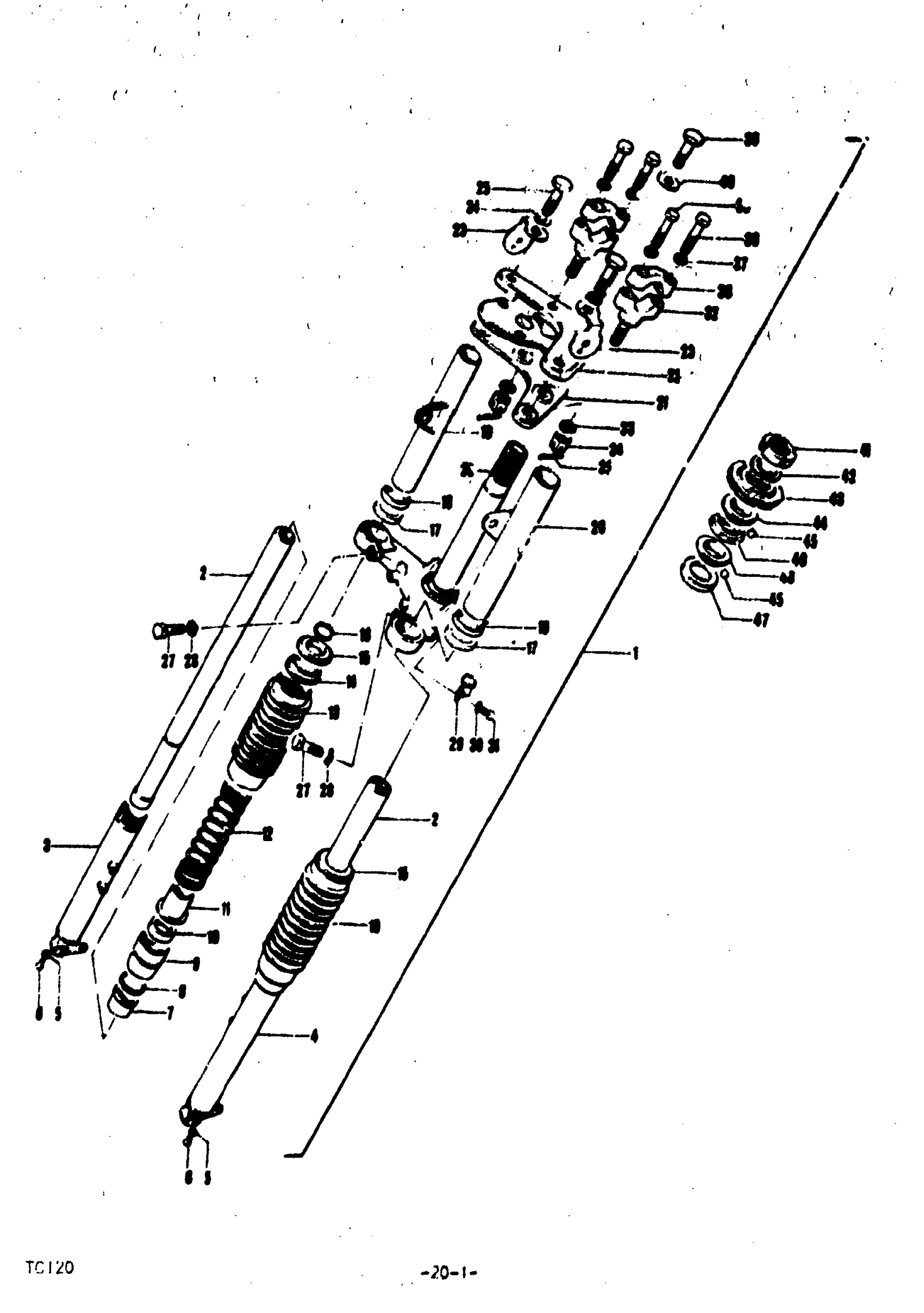

Suzuki TC120 (1971) FRONT FORK (FOR TC120) Diagram

#

Description
Price

1

FRONT FORK ASS'Y | Includes Item(s) 2 - 40

51100-20600-019

Unavailable

2

INNER TUBE

51110-20210

Unavailable

3

RH OUTER TUBE | CHROME PLATED

51130-20210

Unavailable

4

LH OUTER TUBE | CHROME PLATED

51140-20210

Unavailable

5

OIL DRAIN PLUG GASKET

51183-03010

$2.07

6

OIL DRAIN PLUG

51182-03621

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 51152-07010.

51152-08411

Unavailable

8

OIL SEAL LOWER O RING

51154-07010

Unavailable

9

OUTER TUBE NUT

51150-07110

Unavailable

10

OIL SEAL This part replaces 51153-08010.

51153-08011

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 51173-07010.

51173-07011

Unavailable

12

SPRING

51171-20210

Unavailable

13

SPRING COVER BOOT

51571-07110

Unavailable

14

SPRING COVER BOOT BAND

51573-07110

Unavailable

15

SPRING SPACER

51172-20210

Unavailable

16

FORK BOLT O RING

51181-11010

Unavailable

17

HEADLAMP BRACKET CUSHION

51553-07110

Unavailable

18

FORK COVER GUIDE

51551-25010

Unavailable

19

HEADLAMP RH BRACKET | CHROME PLATED

51530-20210

Unavailable

20

HEADLAMP LH BRACKET | CHROME PLATED

51540-20210

Unavailable

21

STEERING STEM HEAD

51310-20210

Unavailable

22

METER BRACKET

51325-20210-019

Unavailable

23

REFLEX REFLECTOR BOLT

51581-20600

Unavailable

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

INNER TUBE BOLT

51351-11011

Unavailable

26

STEERING STEM

51410-07601

Unavailable

27

BOLT This part replaces 51451-03010.

01500-1030A

$3.16

28

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

29

BRAKE CABLE CLIP

51453-05110

Unavailable

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

31

SCREW

02111-06108

Unavailable

32

HANDLEBAR LOWER HOLDER

56220-20010-019

Unavailable

33

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

34

NUT This part replaces 08314-31108.

08314-3110A

$1.99

35

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

36

HANDLEBAR UPPER HOLDER

56211-12111-019

Unavailable

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

BOLT This part replaces 01221-08307.

01204-08307

$1.99

39

STEERING STEM HEAD BOLT

51352-20010

Unavailable

40

NO DESCRIPTION AVAILABLE This part replaces 51356-20010.

51356-20011

Unavailable

41

STEERING STEM LOCK NUT

51632-01000

Unavailable

42

STEERING LOCK WASHER | OD:34, T:2.3

09166-26001

$2.07

43

NUT, STEERING STEM This part replaces 51631-08010.

51631-08000

Unavailable

44

STEERING OUTER RACE

51621-08000

Unavailable

45

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

46

STEERING INNER RACE

51611-08000

Unavailable

47

STEERING STEM UPPER COVER

51361-03110

Unavailable
