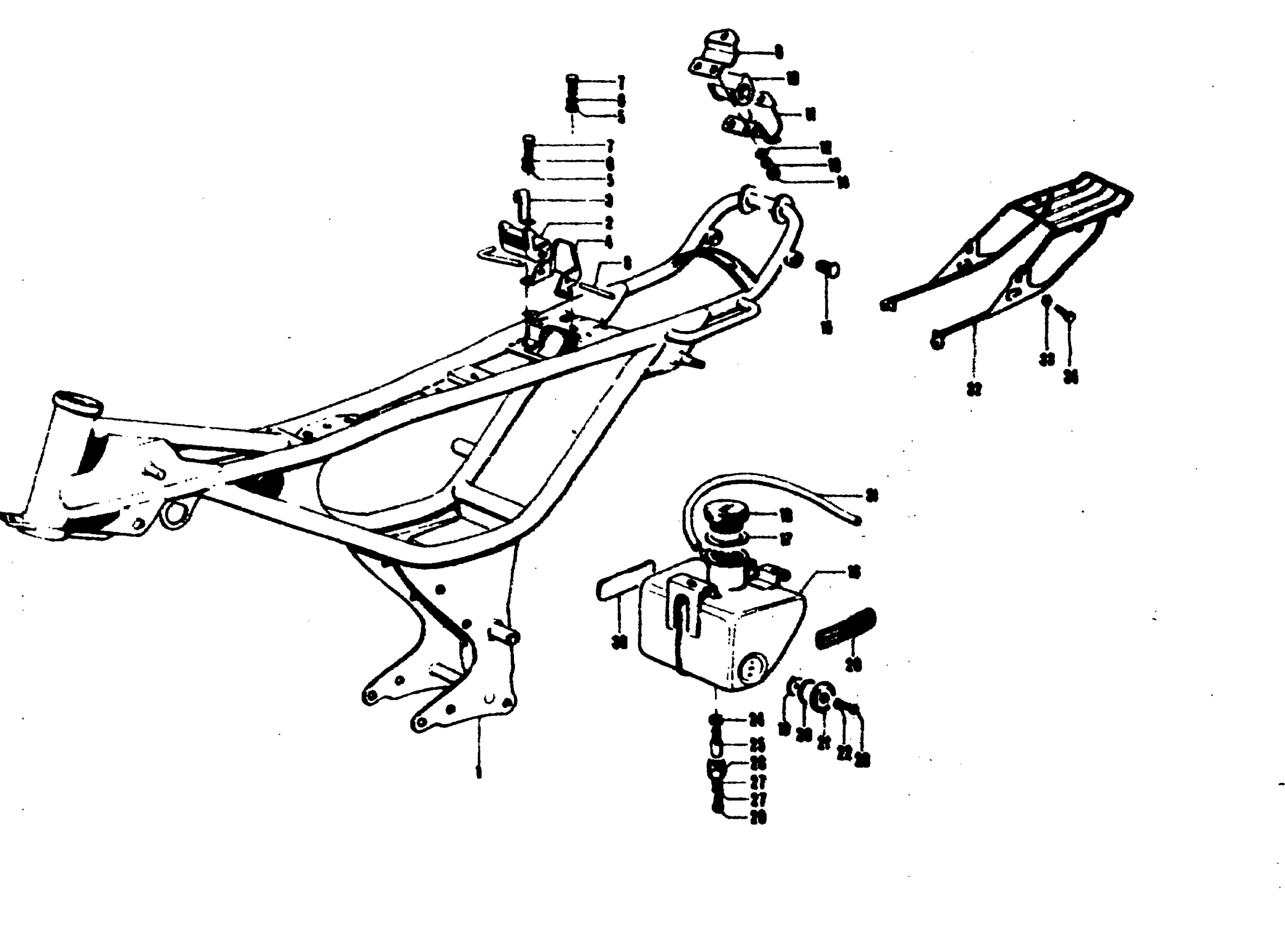

Suzuki TC120 (1971) FRAME - OIL TANK Diagram

#

Description
Price

1

FRAME

41100-20202-019

Unavailable

2

DUAL SEAT CLAMP

45210-20000

Unavailable

3

OIL TANK BREATHER HOSE HOLDER

09403-00035

Unavailable

4

SEAT CLAMP GUIDE PLATE

45219-20000

Unavailable

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

BOLT

01111-06168

Unavailable

8

SEAT CLAMP PIN

09205-06001

Unavailable

9

SEAT FITTING UPPER BRACKET

45221-20000

Unavailable

10

SEAT FITTING BRACKET BUSHING | ID:19, L:56

09305-19001

Unavailable

11

SEAT FITTING LOWER BRACKET

45226-20000

Unavailable

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

.NUT This part replaces 08311-11068.

08310-00067

$2.13

15

CAP This part replaces 09250-09001.

09250-09008

$1.54

16

OIL TANK

44610-20000-019

Unavailable

17

GASKET,OIL TANK | 35x46x3.5 This part replaces 44661-11000.

44661-11001

$3.66

18

OIL TANK CAP

44651-11040

$15.05

19

LENS SET, OIL INSPECTION This part replaces 44642-11000.

44640-11843

Unavailable

20

OIL LEVEL INSPECTION LENS O RI | ID:23, D.:3

09280-23001

Unavailable

21

OIL LEVEL INSPECTION LENS

44641-11000

Unavailable

22

OIL LEVEL INSPECTION LENS GASK | 5x9.5x15x9.5x1

09168-05001

$1.98

23

SCREW This part replaces 02111-05168.

02112-05167

$1.97

24

OIL TANK OUTLET GASKET | 8.2x13.5x2.5

44733-11030

$2.28

25

OIL TANK OUTLET FILTER NET

44720-11030

$5.38

26

OIL OUTLET JOINT NUT | 14SCREW

09361-14001

Unavailable

27

WASHER (6.5X24X1.2) | 6.2x12x1.5 This part replaces 09160-06002.

09160-06114

$2.03

28

UNION BOLT | 6SCREW

09360-06003

$3.76

29

OIL TANK LH EMBLEM

68171-20600

Unavailable

30

OIL TANK RH EMBLEM

68171-20000

Unavailable

31

OIL TANK BREATHER HOSE | 5x8x200

09344-06005

Unavailable

32

NO DESCRIPTION AVAILABLE | TC120; OPT.TC120II,TC120R This part replaces 46310-20200.

46310-20600

Unavailable

33

LOCK WASHER | TC120; OPT.TC120II,TC120R This part replaces 08321-21108.

08321-01107

$1.84

34

BOLT 10X16 | OPT This part replaces 01221-10167.

01204-10167

$3.20
