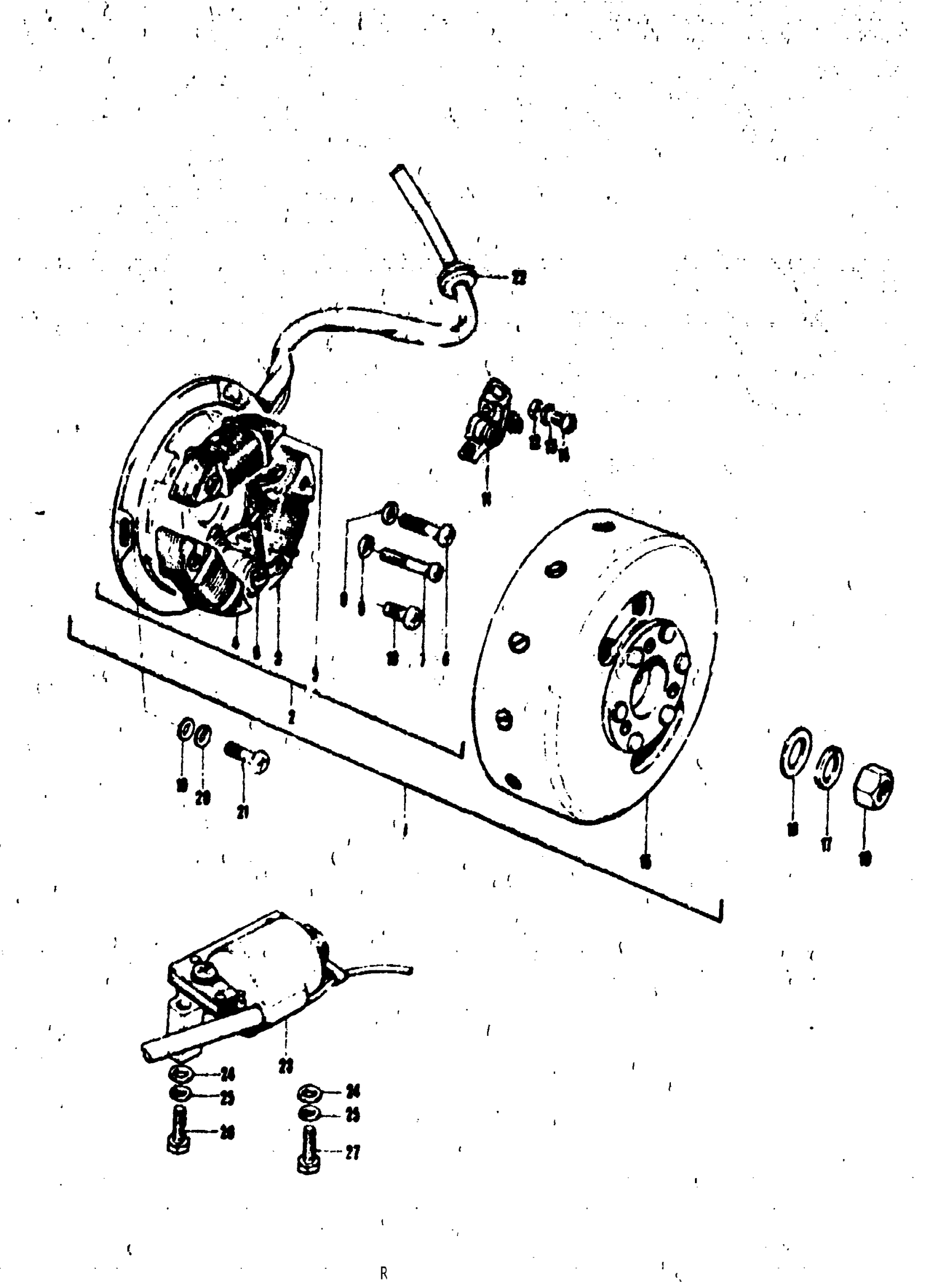

Suzuki TC120 (1971) FLYWHEEL MAGNETO - IGNITION COIL Diagram

#

Description
Price

1

FLYWHEEL MAGNETO ASS'Y | TC120,TC120II

32100-20220

Unavailable

1

FLYWHEEL MAGNETO ASS'Y | TC120R; Includes Item(s) 2 - 15

32100-20610

Unavailable

2

STATOR ASS'Y | TC120,TC120II

32101-20220

Unavailable

2

STATOR ASS'Y | TC120R

32101-20610

Unavailable

3

LIGHTING COIL (A) | TC120,TC120II

32120-07020

Unavailable

3

LIGHTING COIL (I) | TC120R

32120-20610

Unavailable

4

LIGHTING COIL (B) | TC120,TC120II

32130-07020

Unavailable

4

LIGHTING COIL (2) | TC120R

32130-20610

Unavailable

5

PRIMARY COIL

32140-07020

Unavailable

6

PRIMARY COIL SCREW

32351-07021

Unavailable

7

SCREW

02111-05308

Unavailable

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

CONDENSER

32341-07020

Unavailable

10

SCREW This part replaces 02111-05108.

02112-05107

$1.49

11

CONTACT POINT ASS'Y

32240-07022

Unavailable

12

WASHER This part replaces 08322-21058.

08322-01057

$2.13

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

SCREW

02311-05108

Unavailable

15

FLYWHEEL ROTOR

32102-07612

Unavailable

16

WASHER This part replaces 08322-11128.

08322-01127

$1.84

17

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

18

NUT, FIXED DRIVE FACE This part replaces 08312-11128.

09140-12039

$3.05

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

21

SCREW This part replaces 02112-05168.

02112-05167

$1.97

22

GROMMET

09308-09007

Unavailable

23

IGNITION COIL A This part replaces 33410-20221.

33410-22221

Unavailable

24

WASHER This part replaces 08322-21058.

08322-01057

$2.13

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

26

BOLT, RUBBER STOP This part replaces 01111-05128.

01500-05127

$2.10

27

IGNITION COIL FITTING BOLT

09119-05004

Unavailable
