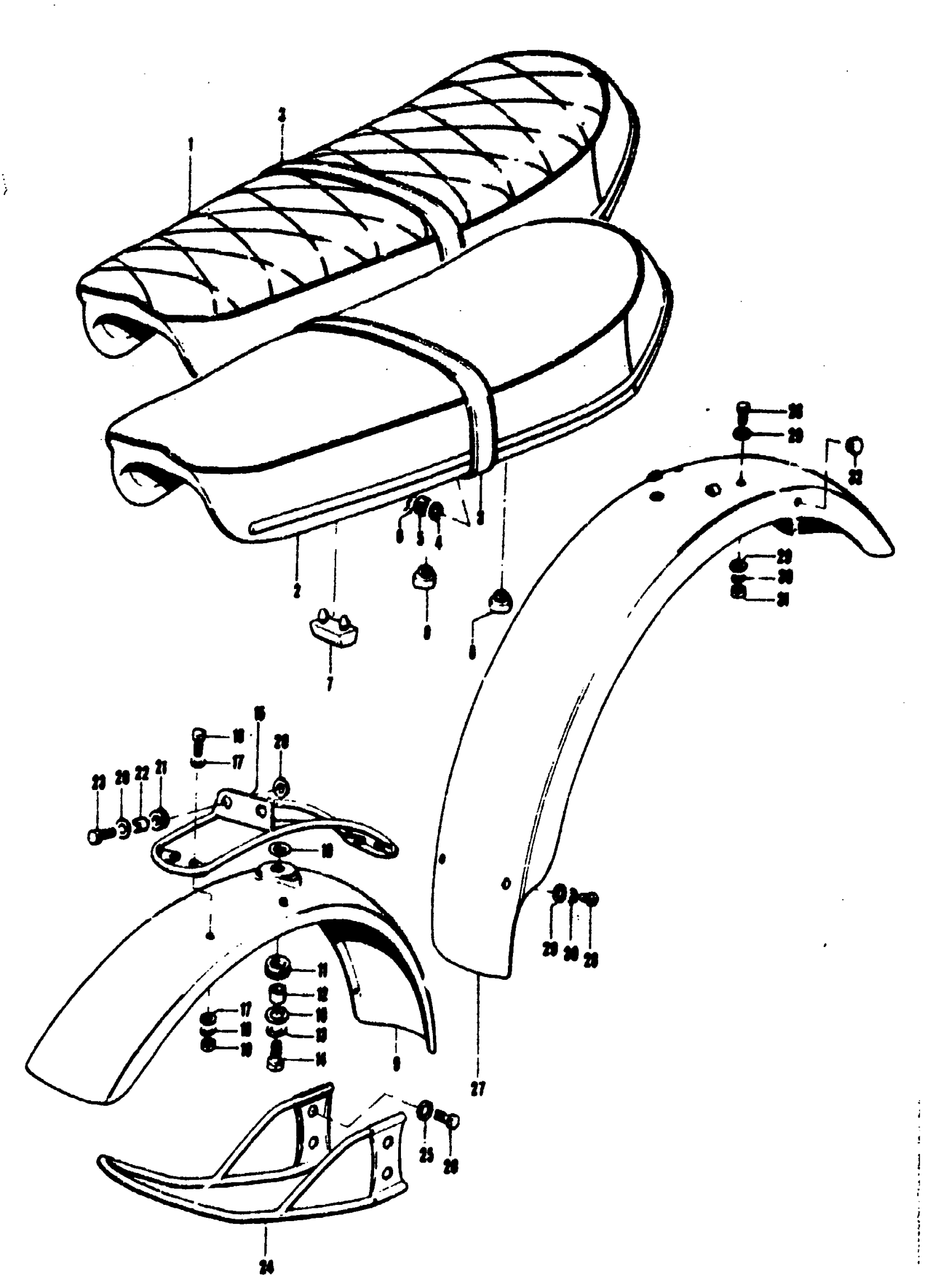

Suzuki TC120 (1971) DUAL SEAT - FENDER Diagram

#

Description
Price

1

DUAL SEAT ASS'Y | TC120

45100-20200

Unavailable

1

DUAL SEAT ASS'Y | TC120II

45100-20201-369

Unavailable

2

DUAL SEAT ASS'Y | TC120R; Includes Item(s) 3 - 6

45100-20202-369

Unavailable

3

PASSENGER STRAP

45180-20200

Unavailable

4

WASHER This part replaces 08322-21088.

08322-01087

$2.13

5

NUT This part replaces 08311-31088.

08310-00087

$2.13

6

CLIP

09385-06001

$3.10

7

CUSHION This part replaces 09321-08004.

09321-08006

$2.90

8

SEAT CUSHION

09321-10001

$2.61

9

FRONT FENDER | CHROME PLATED

53110-20620

Unavailable

10

WASHER (8.5X26X1.6) | 8.2x26x1.6 This part replaces 09160-08004.

09160-08134

$2.03

11

FRONT FENDER BRACE UPPER CUSHI | 9.5x24.3

09320-09002

$1.98

12

FRONT FENDER BRACE UPPER SPACE | 8.2x10x8

09180-08039

Unavailable

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

BOLT, REAR This part replaces 01121-08208.

01500-08207

$2.53

15

FRONT FENDER BRACE

53210-20200

Unavailable

16

BOLT

01111-06108

Unavailable

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

.NUT This part replaces 08311-11068.

08310-00067

$2.13

20

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

21

CUSHION (8.5X20X8) | 8.5x20x8 This part replaces 09320-08007.

09320-08510

$1.97

22

SPACER (6.5X9X7) | 27x9x7 This part replaces 09180-07005.

09180-06259

$2.48

23

BOLT

01111-06167

Unavailable

24

FRONT GRAB BAR

51590-20200

Unavailable

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

BOLT

01111-06108

Unavailable

27

REAR FENDER | CHROME PLATED

63110-20600

Unavailable

28

BOLT | 6SCREW, L:14 This part replaces 09100-06026.

09100-06067

Unavailable

29

WASHER This part replaces 08322-21068.

08322-01067

$2.13

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

31

.NUT This part replaces 08311-11068.

08310-00067

$2.13

32

REAR FENDER PLUG

09250-05001

Unavailable
