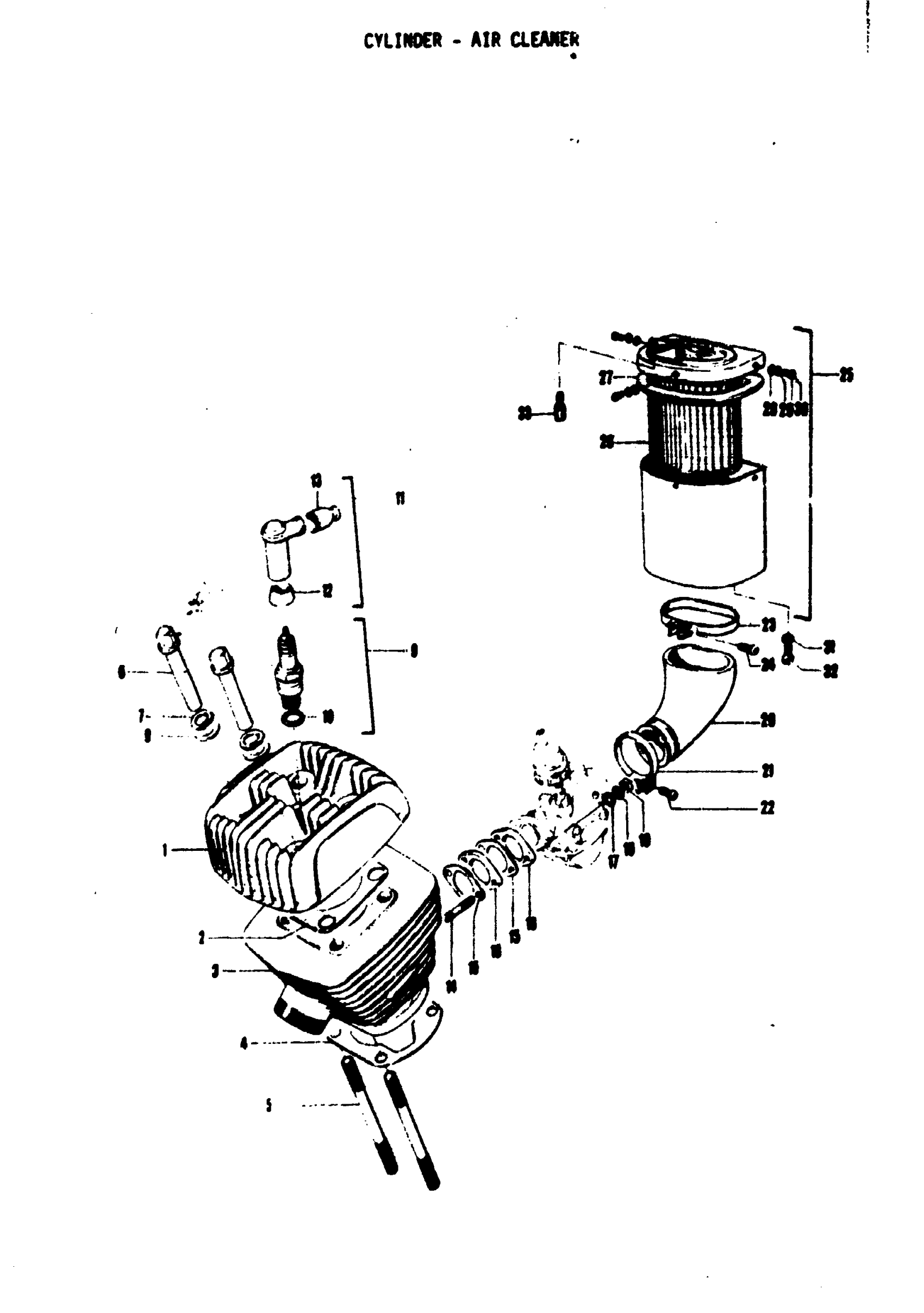

Suzuki TC120 (1971) CYLINDER - AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11111-20200.

11111-20201

Unavailable

2

CYLINDER HEAD GASKET

11141-20200

Unavailable

3

CYLINDER

11210-20200

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 11241-07001.

11241-07002

Unavailable

5

CYLINDER STUD BOLT | 8SCREW

09108-08019

Unavailable

6

CYLINDER HEAD NUT

09159-08006

$5.83

7

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

8

WASHER This part replaces 08322-11128.

08322-01127

$1.84

9

SPARK PLUG | NGK, B-77HC This part replaces 09482-00003.

09482-00082

$2.98

9

SPARK PLUG ASS'Y | NGK, B-7H, OPT

09482-00002

Unavailable

9

SPARK PLUG ASS'Y | NGK, B-9H, OPT; Includes Item(s) 10

09482-00016

Unavailable

10

SPARK PLUG GASKET

09168-14002

$2.26

11

SPARK PLUG CAP ASS'Y | Includes Item(s) 12 - 13

33501-10801

Unavailable

12

CAP SEAL

33541-11000

Unavailable

13

HIGH TENSION CORD COAL

33542-51000

Unavailable

14

BOLT, STUD | 6SCREW, L:43 This part replaces 09108-06013.

09108-06107

Unavailable

15

CARBURETOR GASKET

13125-09204

Unavailable

16

CARBURETOR INSULATOR

13129-09204

Unavailable

17

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

.NUT This part replaces 08311-11068.

08310-00067

$2.13

20

AIR CLEANER INLET HOSE | TC120 This part replaces 13881-20200.

13881-20201

Unavailable

20

AIR CLEANER INLET HOSE | TC120II,TC120R

13881-20201

Unavailable

21

CLAMP This part replaces 09402-00184.

09402-44208

$5.80

22

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

23

CLEANER HOSE CLAMP (B) | TC120

09402-00187

Unavailable

23

CLEANER HOSE CLAMP (B) | TC120II,TC120R

09402-00197

Unavailable

24

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

25

AIR CLEANER ASS'Y | TC120

13700-20210

Unavailable

25

AIR CLEANER ASS'Y | TC120II,TC120R; Includes Item(s) 26 - 30

13700-20630

Unavailable

26

CLEANER ELEMENT | TC120

13780-20210

Unavailable

26

CLEANER ELEMENT | TC120II,TC120R

13780-20211

Unavailable

27

CLEANER GASKET

13789-21010

Unavailable

28

WASHER This part replaces 08322-21048.

08322-01047

$1.86

29

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

30

SCREW

02111-04088

Unavailable

31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

32

BOLT

01111-06108

Unavailable

33

AIR CLEANER BOLT | TC120II,TC120R

09119-05004

Unavailable
