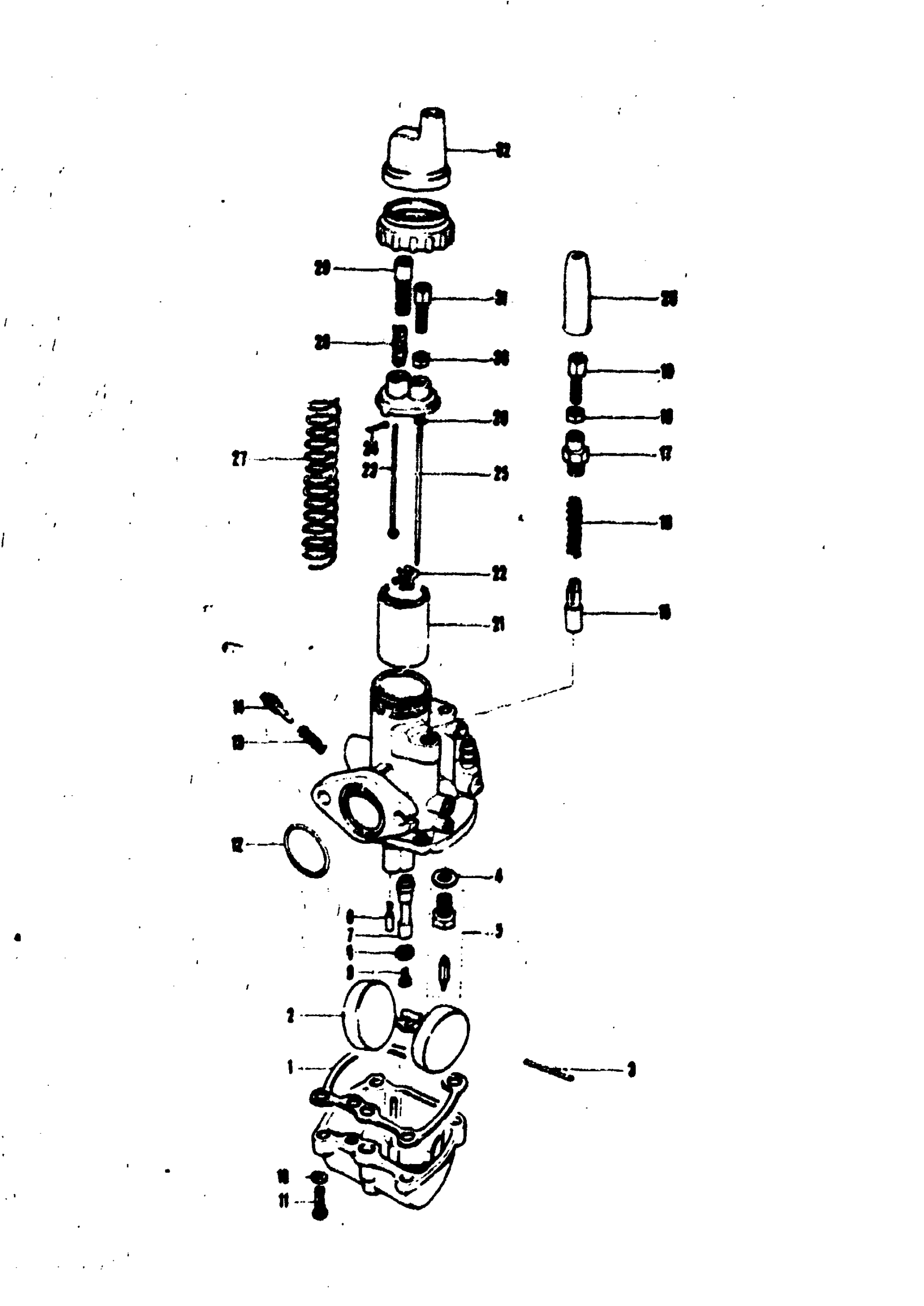

Suzuki TC120 (1971) CARBURETOR Diagram

#

Description
Price

0

CARBURATOR ASS'Y | Includes Item(s) 1 - 32

13200-20602

Unavailable

1

FLOAT CHAMBER GASKET

13251-20601

Unavailable

2

FLOAT

13252-09210

$20.76

3

FLOAT PIN | OD:2.5, L:27

13252-09210

$20.76

4

NEEDLE VALVE SEAT GASKET | 7.4x9.8x0.4

13392-01010

$2.15

5

NEEDLE VALVE ASS'Y

13370-09211

$62.07

6

PILOT JET | #25

09492-25001

Unavailable

7

NEEDLE JET

09494-00030

Unavailable

8

NEEDLE JET STOP WASHER | 5.4x10x1.6

13382-03110

$2.80

9

MAIN JET | #110

09491-22001

Unavailable

9

MAIN JET | #95, OPT

09491-95001

Unavailable

9

MAIN JET | #100, OPT

09491-20001

Unavailable

9

MAIN JET | #120, OPT

09491-24001

Unavailable

9

MAIN JET | #130, OPT

09491-26002

Unavailable

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

SCREW This part replaces 02111-04188.

02112-0420A

$1.49

12

OUTLET O RING | LD:23.8,D:2.4

13295-09210

$3.59

13

SCREW SPRING

13268-01010

$5.28

14

AIR ADJUSTING SCREW

13269-01010

$14.20

15

STARTER PLUNGER

13411-08010

Unavailable

16

STARTER PLUNGER SPRING

13417-07010

Unavailable

17

STARTER PLUNGER This part replaces 13418-03110.

13418-63110

Unavailable

18

CABLE ADJUSTER NUT

13661-03010

$5.67

19

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

20

STARTER PLUNGER CAP

13682-02010

Unavailable

21

THROTTLE VALVE

13551-10010

Unavailable

22

NEEDLE CLIP STOPPER

13581-10010

Unavailable

23

THROTTLE VALVE ADJUSTING ROD

13296-09210

Unavailable

24

COTTER PIN

04111-12068

Unavailable

25

JET NEEDLE | 4D8

13383-20600

Unavailable

26

NEEDLE CLIP

13394-10010

$5.45

27

SPRING, THROTTLE VALVE This part replaces 13573-09210.

13573-36110

$6.20

28

THROTTLE VALVE STOP SCREW SPR

13268-03110

$5.45

29

THROTTLE STOP SCREW

13267-09210

Unavailable

30

CABLE ADJUSTER NUT

13661-03010

$5.67

31

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

32

CABLE ADJUSTER CAP

13681-09210

Unavailable
