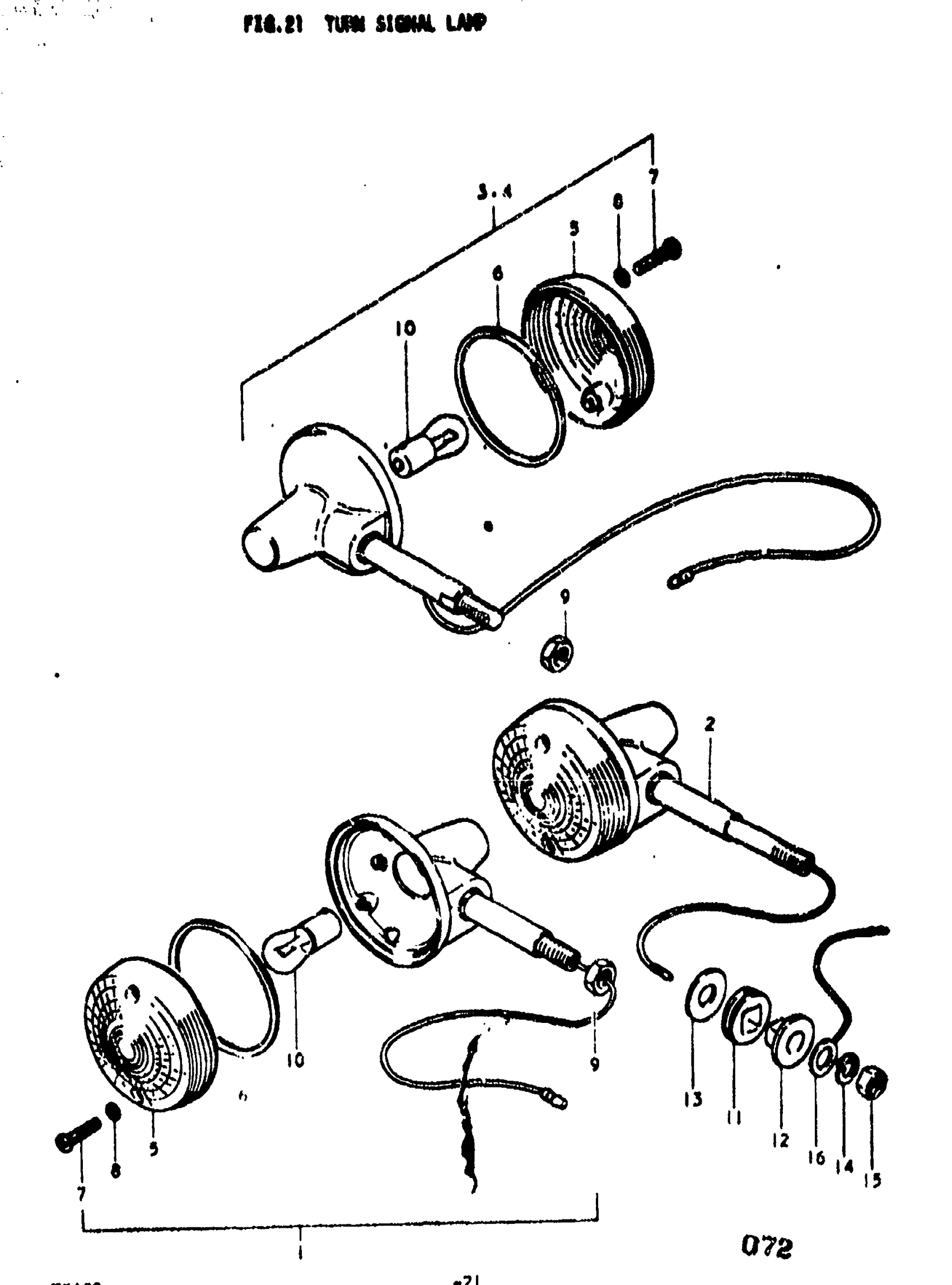

Suzuki TC100 (1977) TURN SIGNAL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A This part replaces 35601-28620.

35601-29620-999

Unavailable

2

LAMP ASSY,FR TR | B This part replaces 35601-29630.

35601-39370-999

Unavailable

3

LAMP RR TURN SI | A This part replaces 35603-25610.

35603-25610-999

Unavailable

4

LAMP RR TURN SI | B; Includes Item(s) 5 - 10 This part replaces 35603-25611.

35603-25610-999

Unavailable

5

LENS | A,B

35612-28620

$8.98

6

GASKET | A,B

35613-28620

$4.55

7

SCREW | A,B

02111-04258

Unavailable

8

GASKET | A,B

35627-43010

$2.28

9

NUT | AB This part replaces 08312-32108.

08310-00107

$2.19

10

BULB | A,B; 6V, 21CP

09471-06011

Unavailable

11

RR TURN SIG CUS | B This part replaces 35690-32200.

35690-32201

$6.37

12

SPACER | B

35695-32200

Unavailable

13

WASHER, UPPER, OUTER | B This part replaces 09160-10006.

09160-10501

$2.33

14

LOCK WASHER | B This part replaces 08321-21108.

08321-01107

$1.84

15

NUT | B This part replaces 08312-12108.

08310-00107

$2.19

16

LEAD WIRE, FRONT TURN SIGNAL L | BB

36660-33000

$4.52
