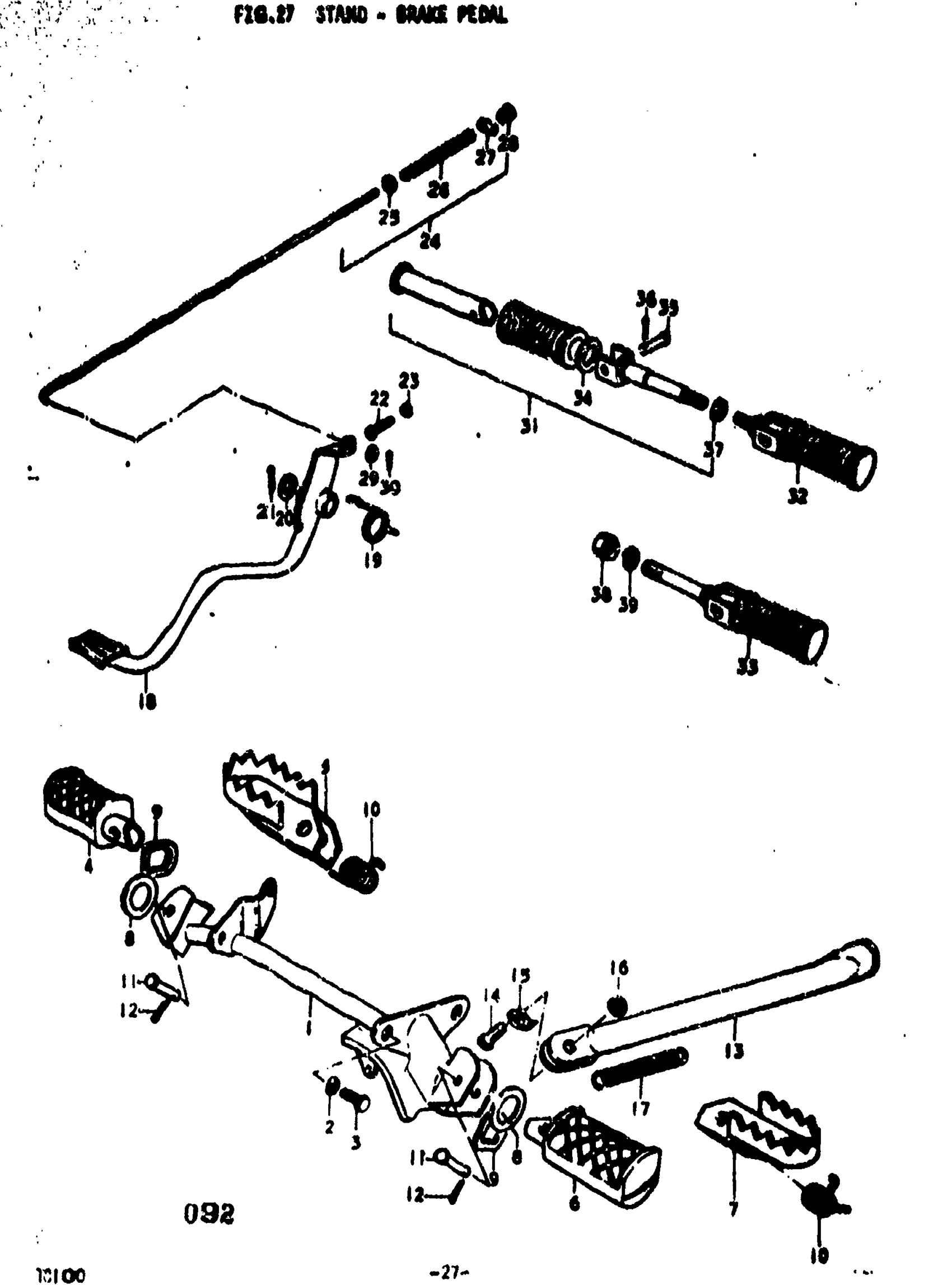

Suzuki TC100 (1977) STAND - BRAKE FEDAL Diagram

#

Description
Price

1

BAR, FOOTREST | K,L,M

43510-25300

Unavailable

1

BAR, FOOTFREST | A,B

43510-25301

Unavailable

2

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

3

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

4

RUBBER, RH | K; TO 43350-25000 This part replaces 43550-25000.

43550-25301

Unavailable

4

RUBBER, FOOTREST RH | L; TO 43350-25301

43550-25300

Unavailable

4

RUBBER, FOOTREST RH | M

43550-25301

Unavailable

5

FOOTREST RH | A,B

43550-25302

Unavailable

6

RUBBER, LH | K; TO 43560-25300 This part replaces 43560-25000.

43560-25301

Unavailable

6

RUBBER, FOOTREST LH | L; TO 43560-23301

43560-25300

Unavailable

6

RUBBER, FOOTREST LH | M

43560-25301

Unavailable

8

FOOTREST LH | A,B

43560-25302

Unavailable

9

WASHER | K; CIRCLE SHAPED 22.5x36x2.3

43581-25300

Unavailable

10

SPRING | A,B

09448-14012

$3.04

11

PIN

09200-08002

$2.05

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

STAND,PROP

42310-25000

Unavailable

14

BOLT | K;10x30 USED FOR 08321-31108;10x27 USED FOR 09169-1008

09100-10067

$2.61

15

WASHER

09169-10008

Unavailable

16

NUT | K This part replaces 08312-32108.

08310-00107

$2.19

17

SPRING | K This part replaces 09443-14005.

09443-14017

$3.04

18

PEDAL, BRAKE

43110-25300

Unavailable

19

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

20

WASHER | 15,5x26x2.3

09160-15002

$1.91

21

PIN This part replaces 04111-30308.

04111-3030A

$1.49

22

BOLT, ADJUSTER | 6x31 This part replaces 09100-06050.

09100-06150

$2.30

23

.NUT This part replaces 08311-31068.

08310-00067

$2.13

24

ROD ASSY, BRAKE | Includes Item(s) 25 - 28

43300-25600

Unavailable

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

SPRING

09440-09004

$2.20

27

PIN, LEVER

09209-11002

$2.19

28

.NUT This part replaces 09150-06001.

09150-06010

$3.10

29

WASHER This part replaces 08322-21058.

08322-01057

$2.13

30

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

31

FOOTREST ASSY, PILLION RH

43600-28000

Unavailable

32

FOOTREST ASSY,P | K,L This part replaces 43600-03001.

43600-09D00

$27.30

33

FOOTREST ASSY, PILLION LH | M,A,B; Includes Item(s) 34 - 37

43600-36200

Unavailable

34

WASHER | 19.5x32x2 This part replaces 09160-19006.

09160-19024

$2.65

35

PIN

09200-06010

$1.72

36

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

37

NUT | K,LM,A,B This part replaces 08312-32108.

08310-00107

$2.19

38

NUT, FIXED DRIVE FACE | M,A,B This part replaces 08312-31128.

09140-12039

$3.05

39

LOCK WASHER | M This part replaces 08321-21128.

08321-01127

$2.06
