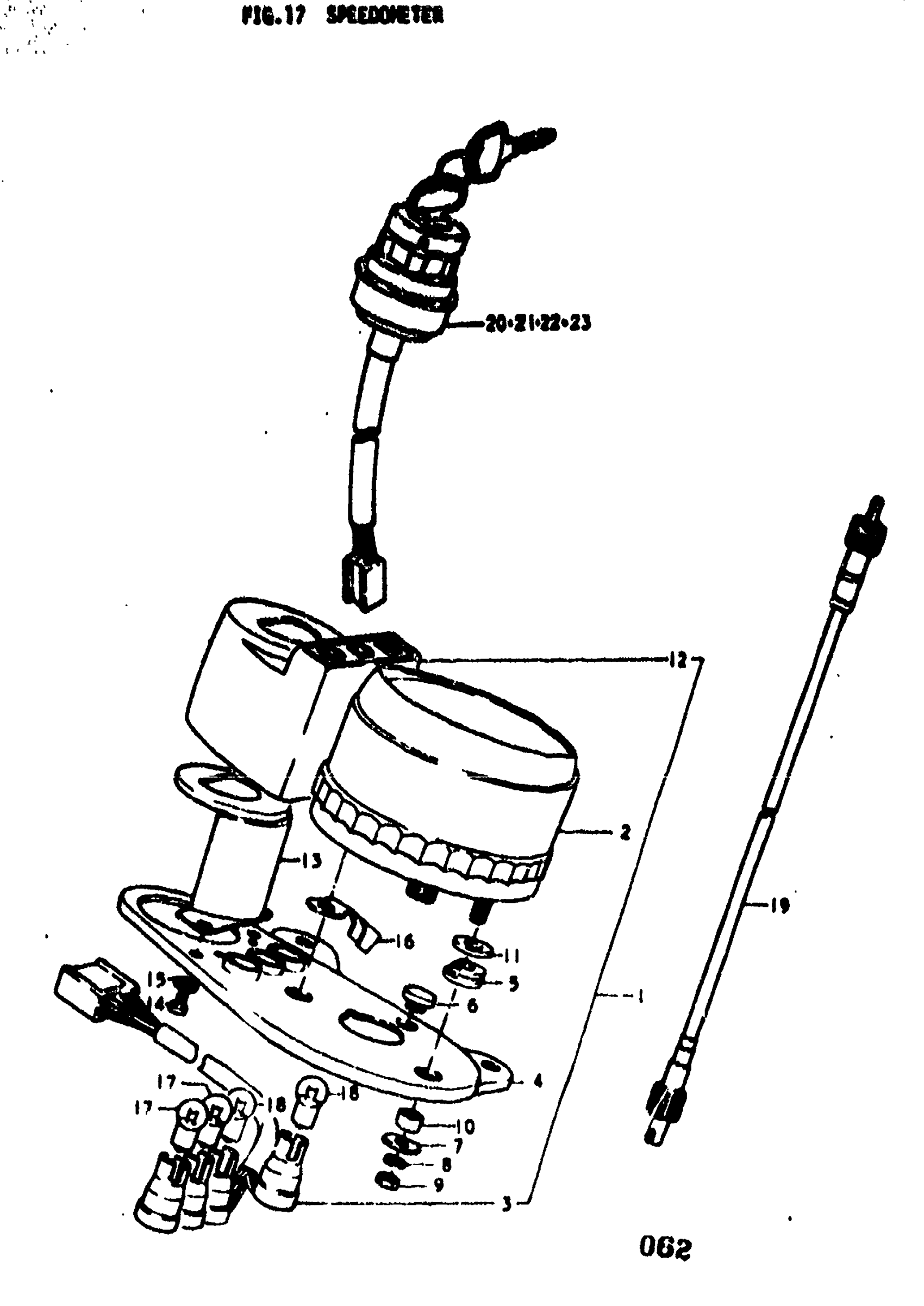

Suzuki TC100 (1977) SPEEDOMETER (MADE BY NIPPON DENSO) Diagram

#

Description
Price

1

SPEEDOMETER ASSY | L; MILLS TO 34100-23621; Includes Item(s) 2 - 16

34100-25612-999

Unavailable

2

SPEEDOMETER | L

34101-25612

Unavailable

3

SOCKET ASSY | L

34170-25612

Unavailable

4

BRACKET,SPEEDOMETER | L

34950-25612

Unavailable

5

CUSHION | L

34282-31000

Unavailable

6

CUSHION | L

34956-28011

Unavailable

7

WASHER (5.5X16X1.2) | L; 5.5x16x1.2 This part replaces 09160-05017.

09160-05043

$2.30

8

LOCK WASHER | L

08321-21050

Unavailable

9

NUT | L This part replaces 08311-31058.

08310-00057

$1.84

10

SPACER | L

34972-31012

Unavailable

11

WASHER | L

34181-25710

Unavailable

12

CASE, PILOT BULB CASE | L

34980-25610

Unavailable

13

BRACKET, PILOT BULB CASE | L

34981-25710

Unavailable

14

SCREW | L This part replaces 02111-04087.

02112-04087

$1.49

15

LOCK WASHER | L This part replaces 08321-21048.

08321-0104A

$1.84

16

CLAMP | L

34961-25710

Unavailable

17

BULB | L; 6V, 1.7W

09471-06001

$2.18

18

BULB | L; 6V, 3W

09471-06002

$2.25

19

CABLE ASSY, SPEEDOMETER | L; 845 This part replaces 34910-25230.

34910-21230

Unavailable

20

SWITCH ASSY, IGNITION | L; TO 37110-25313

37110-25312

Unavailable

21

SWITCH ASSY, IGNITION | M; TO 37110-25314 This part replaces 37110-25313.

37110-25319

$97.62

22

SWITCH ASSY, IGNITION | A This part replaces 37110-25314.

37110-25319

$97.62

23

SWITCH ASSY, IGNITION | B

37110-25317

Unavailable
