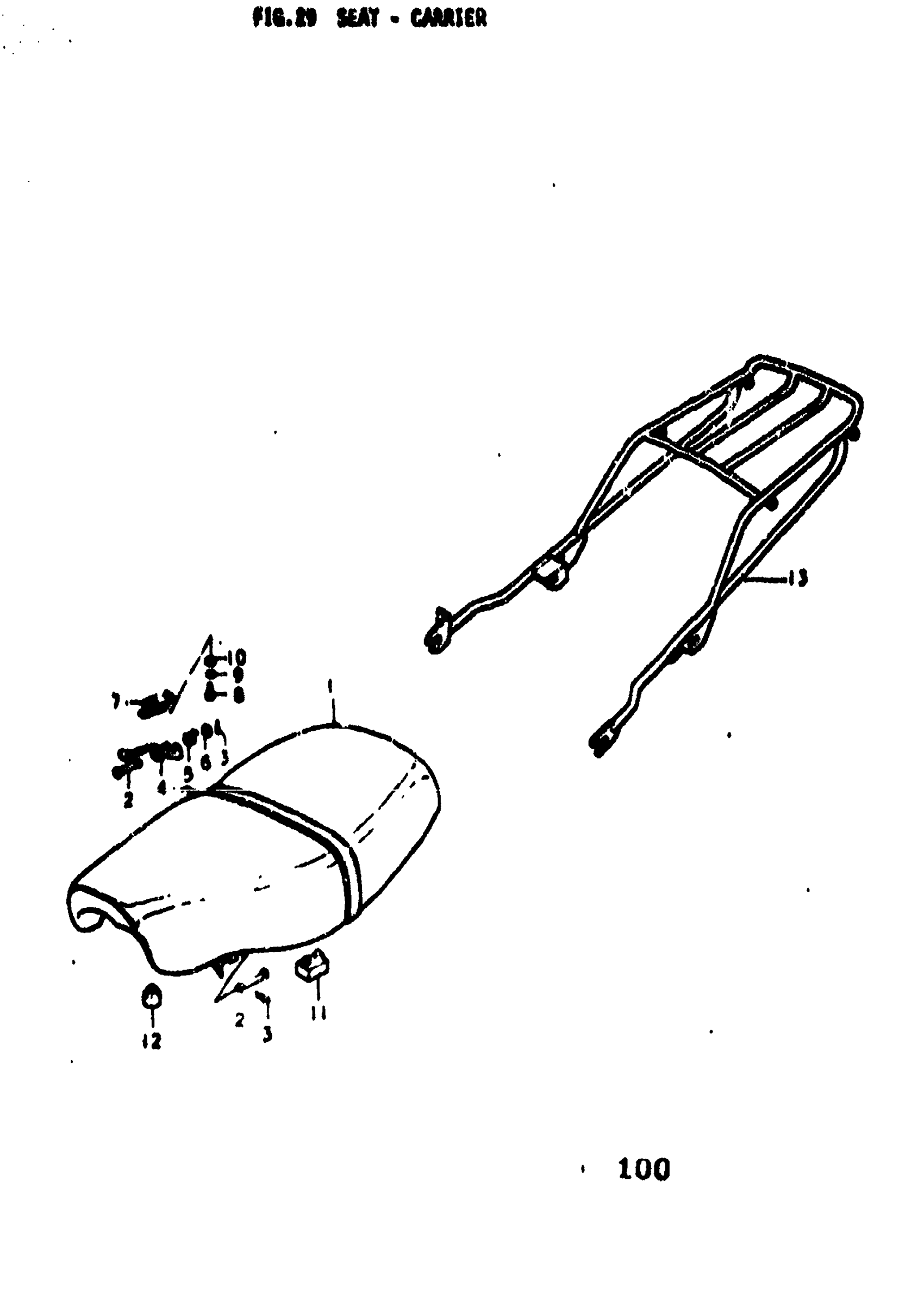

Suzuki TC100 (1977) SEAT - CARRIER Diagram

#

Description
Price

1

SEAT ASSY, DUAL | K,L; TO 45100-29302-403

45100-25300-403

Unavailable

1

SEAT ASSY, DUAL | M; TO 43100-25302-403

43100-25303-403

Unavailable

1

SEAT ASSY, DUAL | A

45100-25304-403

Unavailable

1

NO DESCRIPTION AVAILABLE | S This part replaces 45100-25304-865.

45100-25710-865

Unavailable

2

PIN, SEAT STOPPER

09200-06018

$2.06

3

CLIP | K

09385-05002

Unavailable

3

CLIP | L

09385-05003

Unavailable

3

CLIP | M,A,S

09385-06001

$3.10

4

CLAMP, SEAT | K,L,M,A

45210-33001

Unavailable

4

CLAMP, SEAT | S

45210-33002

Unavailable

5

SPRING, SEAT CLAMP

09448-15001

Unavailable

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

PLATE, SEAT CLAMP GUIDE

45213-33000

Unavailable

8

BOLT This part replaces 01112-06128.

01500-06127

$1.97

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

CUSHION, (A)

09321-08006

$2.90

12

CUSHION, (B)

09321-10001

$2.61

13

CARRIER

46310-25300

Unavailable
