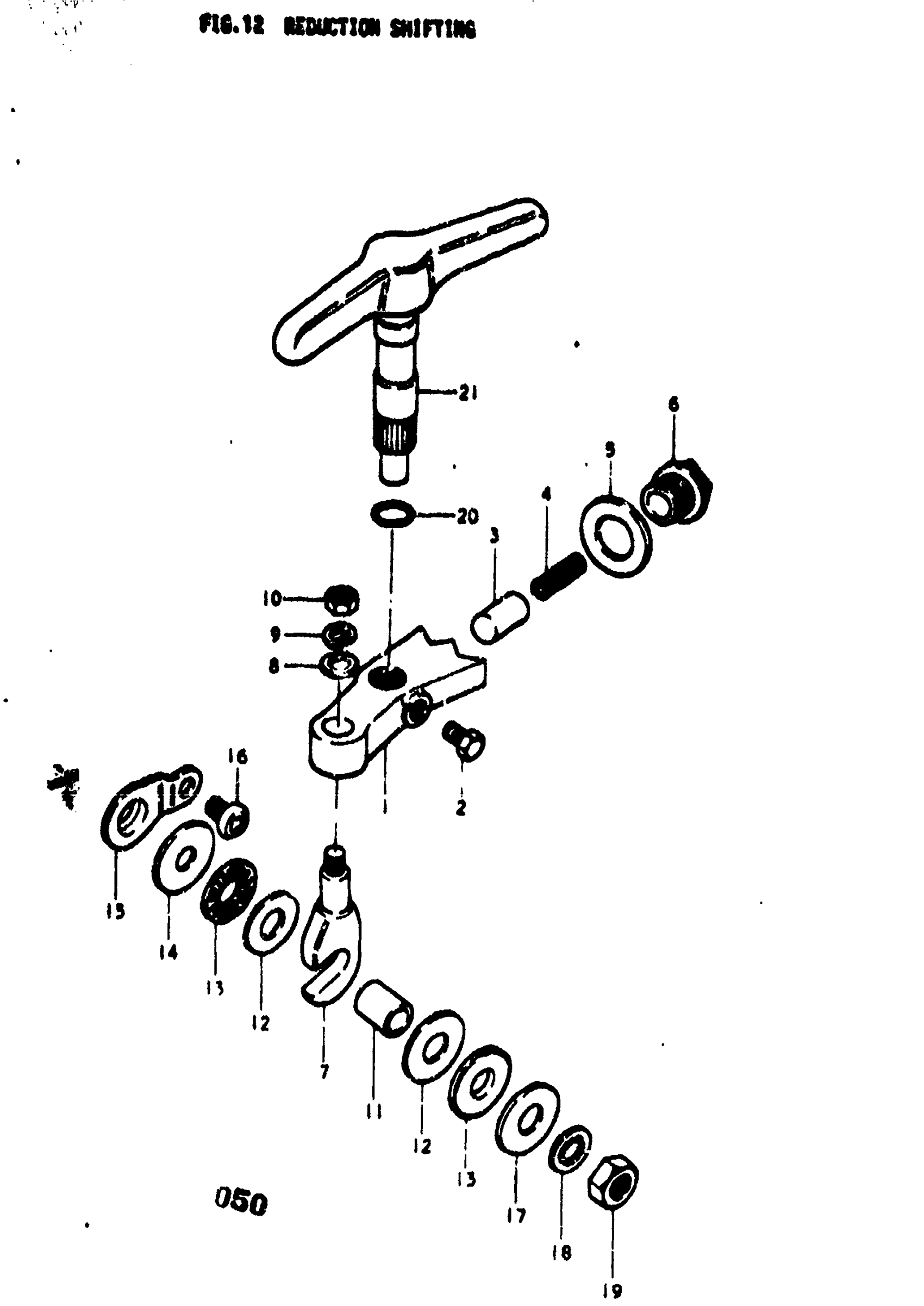

Suzuki TC100 (1977) REDUCTION SHIFTING Diagram

#

Description
Price

1

ARM, REDUCTION SHIFTING

25812-25132

Unavailable

2

BOLT | K,L,M This part replaces 01111-05088.

01112-05088

Unavailable

2

BOLT | A,B This part replaces 01111-05108.

01500-0510B

$1.80

3

STOPPER | K,L; TO 25351-25101

25351-25100

Unavailable

3

STOPPER | M,A,B

25351-25101

Unavailable

4

SPRING

09440-08009

Unavailable

5

NUT,PINION | 16.2x22x1 This part replaces 09140-16015.

09140-16021

$3.70

6

HOUSING

25352-25100

Unavailable

7

PIN, REDUCTION SHIFTING ARM

25811-07401

Unavailable

8

WASHER | 5.5x12x0.8 This part replaces 08322-21058.

08322-01057

$2.13

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

NUT This part replaces 08311-11058.

08310-00057

$1.84

11

SPACER | 6x10x12.2

09180-06017

$9.80

12

WASHER | 10x21x0.8 This part replaces 09160-10021.

09160-10121

$2.03

13

BEARING | 10x22x2.8

09263-10002

$10.19

14

WASHER | 6x22x2.0

08211-06223

$2.30

15

DUSY SEAL, REDUCTION ROD

25830-07440

Unavailable

16

SCREW This part replaces 02111-06087.

02112-06087

$1.49

17

WASHER | 6x22x2

09160-06033

Unavailable

18

LOCK WASHER This part replaces 08323-21068.

08323-31068

Unavailable

19

.NUT This part replaces 08311-11068.

08310-00067

$2.13

20

O RING

09280-10001

$2.02

21

LEVER, REDUCTION SHIFTING | K,L,M,A

25820-25100

Unavailable

21

LEVER, REDUCTION SHIFTING | B

25820-25101

Unavailable
