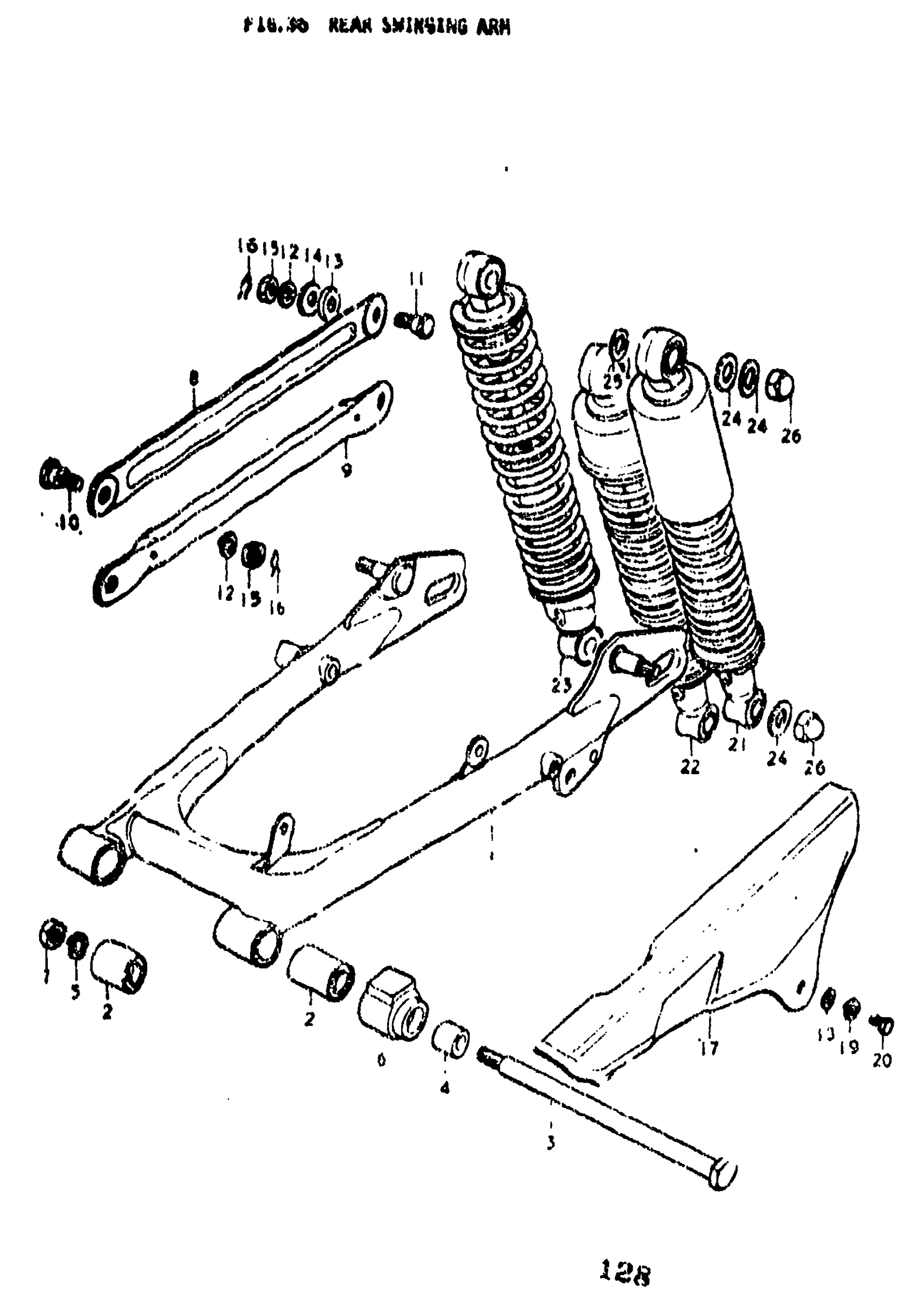

Suzuki TC100 (1977) REAR SWINGING ARM Diagram

#

Description
Price

1

SKINGING ARM, REAR | K; TO 61100-25350-019

61100-25833-019

Unavailable

1

SWINGING ARM, REAR | L; TO 61100-25870-019 This part replaces 61100-25850-019.

61100-25870-019

Unavailable

1

SWINGING ARM, REAR | M,A,B

61100-25870-019

Unavailable

2

'BUSHING

09319-10009

$7.62

3

SHAFT, PIVOT

61211-25300

Unavailable

4

SPACER | 10.5x20x14

09180-10025

Unavailable

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

BUFFER, CHAIN TOUCH DIFENCE

61273-25300

Unavailable

7

NUT This part replaces 08311-11108.

08310-00107

$2.19

8

LINK, REAR TORQUE | K; TO 64310-23300

64310-20100

Unavailable

8

LINK, REAR TORQUE | L,M

64310-25300

Unavailable

9

NO DESCRIPTION AVAILABLE | A,B This part replaces 64310-39000.

64310-39000-019

Unavailable

10

BOLT, FRONT

09111-08012

$3.78

11

BOLT, PANEL | K,A,B

09111-08013

$3.04

11

BOLT, PANEL | L,M

09111-08022

Unavailable

12

.LOCK WASHER | K,M,A,BL This part replaces 08321-21088.

08321-01087

$2.13

13

CUSHION | L,M

09161-11002

Unavailable

14

WASHER (8.5X26X1.6) | L,M This part replaces 09160-08005.

09160-08134

$2.03

15

NUT, TORQUE LINK

09140-08008

$1.49

16

CLIP This part replaces 09385-10001.

09385-10005

$1.56

17

CASE, CHAIN | K; TO 61310-25301-126

61310-25300-126

Unavailable

17

CASE, CHAIN | L,M

61310-25301-126

Unavailable

17

CASE, CHAIN | A,B This part replaces 61310-25301-019.

61310-25301-126

Unavailable

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

BOLT | 6x8

09100-06011

$1.67

21

SHOCK ABSORBER ASSY, REAR | K; TO 12100-25311

62100-25310

Unavailable

21

SHOCK ABSORBER ASSY, REAR | K

62100-25311

Unavailable

22

SHOCK ABSORDER ASSY, REAR | L

62100-25510

Unavailable

23

SHOCK ABSORBER ASSY, REAR | M,A,B

62100-25511

Unavailable

24

WASHER, LOWER (10.5X24X2.3) | 10.1x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

25

WASHER This part replaces 08322-11128.

08322-01127

$1.84

26

NUT This part replaces 08313-11107.

08313-10107

$2.50
