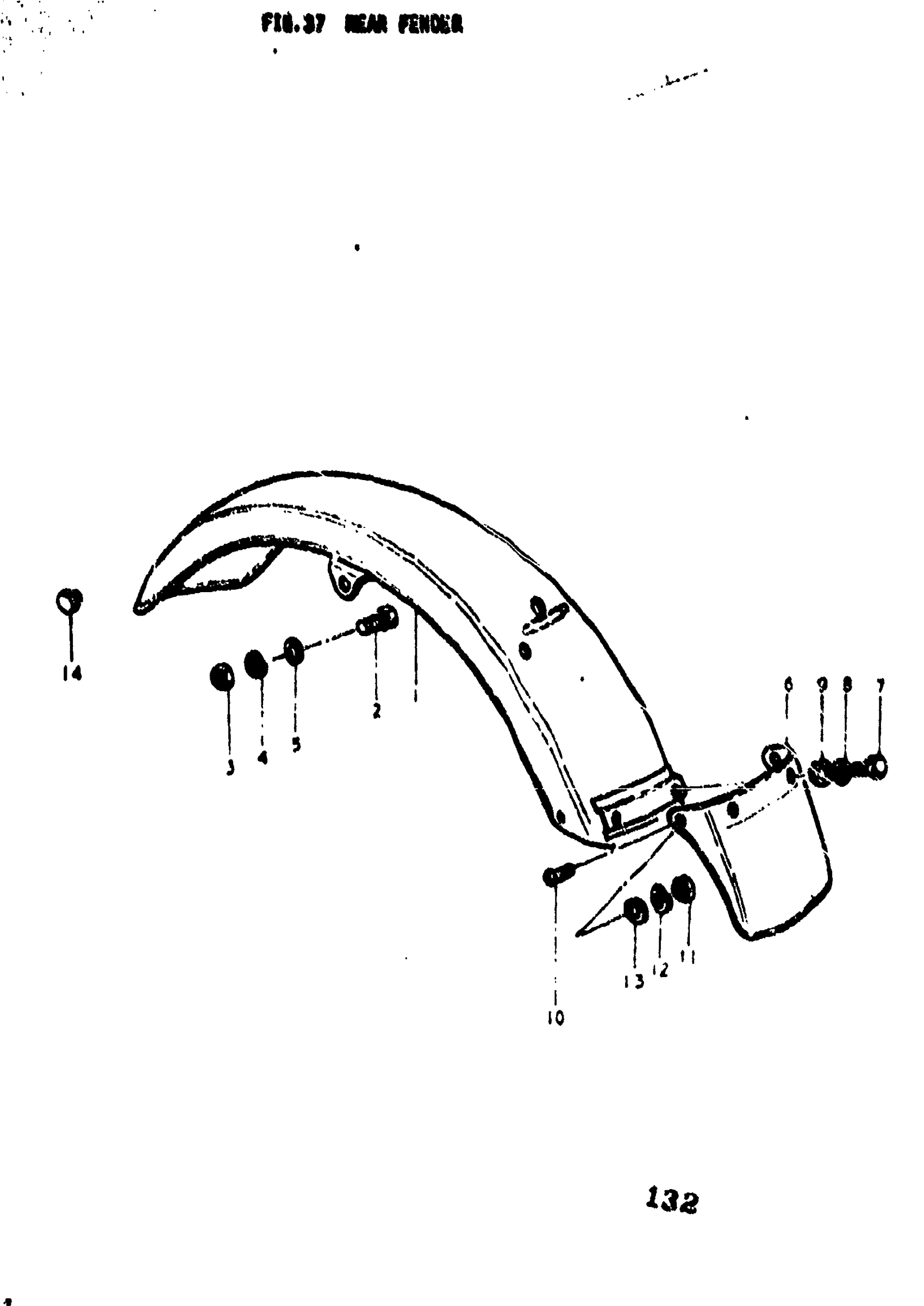

Suzuki TC100 (1977) REAR FENDER Diagram

#

Description
Price

1

PENDER, REAR | K,L; TO 63110-25402

63110-25601

Unavailable

1

PENDER, REAR | M

63110-25602

Unavailable

1

FENDER, REAR | A

63110-25002-737

Unavailable

1

FENDER, REAR | B

63110-25003-737

Unavailable

2

BOLT | K,L This part replaces 01122-08408.

01500-0840A

$2.60

2

BOLT | M,A,B This part replaces 01122-08458.

01500-08453

$2.50

3

NUT This part replaces 08313-11087.

08313-10087

$2.28

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

WASHER | K,L,MA,B This part replaces 08322-11088.

08322-01087

$2.13

6

MUD GUARD, REAR TENDER

63411-25000

Unavailable

7

BOLT | 6x14 This part replaces 09100-06026.

09100-06067

Unavailable

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

SCREW This part replaces 02141-05107.

02142-05107

$1.49

11

NUT | M,A,B

08311-11056

Unavailable

12

LOCK WASHER | M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

13

WASHER | M,A,B This part replaces 08322-21058.

08322-01057

$2.13

14

PLUG, REAR TENDER

09321-09001

Unavailable
