Partiron

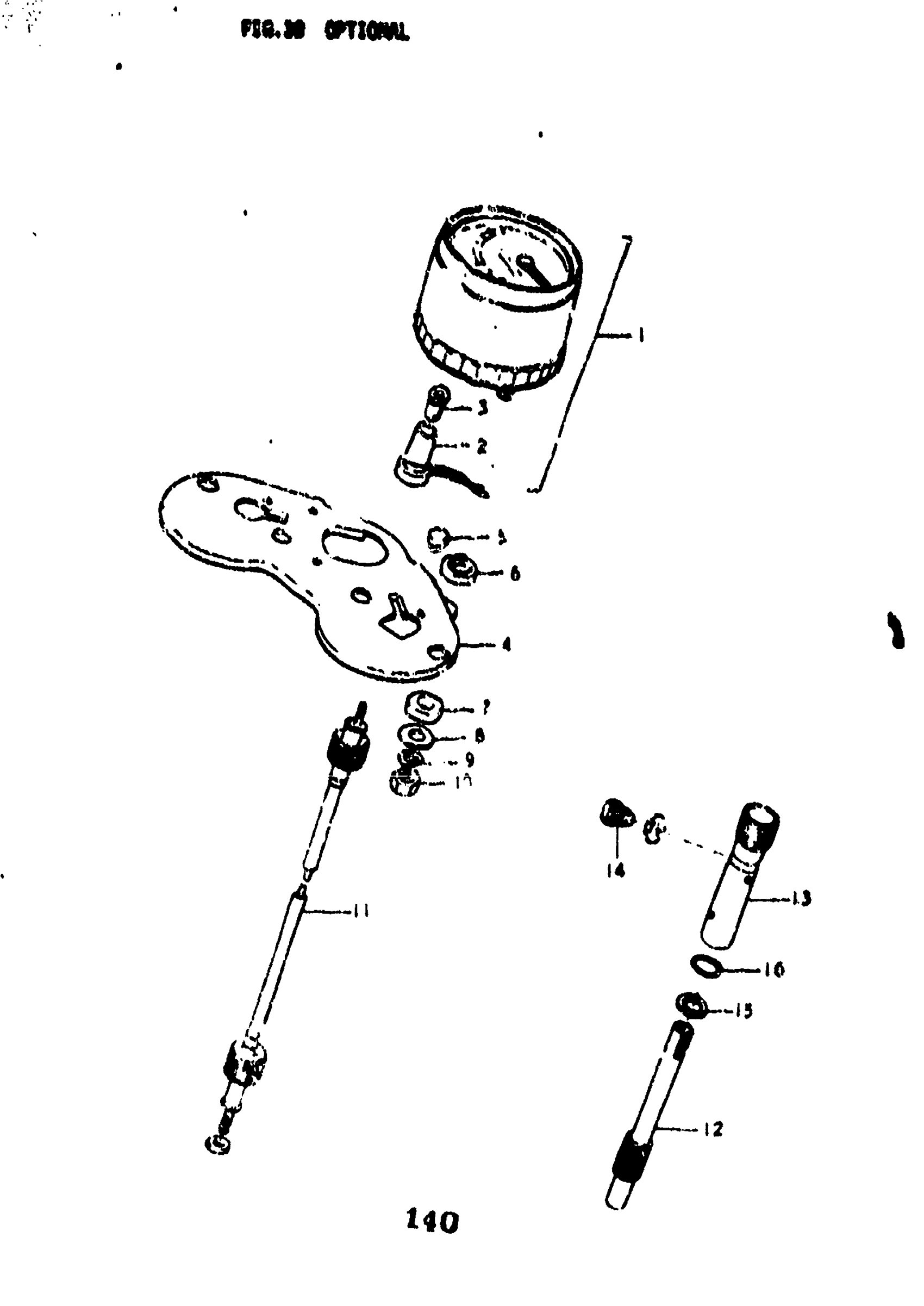

Suzuki TC100 (1977) OPTIONAL Diagram

#

Description
Price

1

TACHOMETER ASSY | K; Includes Item(s) 2

34200-25012-999

Unavailable

2

SOCKET ASSY | K

34270-25012

Unavailable

3

BULB | K; 6V, 3W

09471-06002

$2.25

4

BRACKET, MATER | K

34950-25310

Unavailable

5

CUSHION, TACHOMETER REAR | K

34957-05100

Unavailable

6

CUSHION, TACHOMETER UPPAR | K

34955-20000

Unavailable

7

CUSHION | K This part replaces 09320-08004.

09320-08010

$1.99

8

WASHER | K; 5.5x16x1.5

09160-05024

$1.78

9

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$2.13

10

NUT | K This part replaces 08311-11058.

08310-00057

$1.84

11

CABLE, TACHOMETER | K

34940-25030

Unavailable

12

GEAR, TACHOMETER DRIVEN | K

26431-25000

Unavailable

13

SLEEVE, DRIVEN GEAR | K

26441-25000

Unavailable
