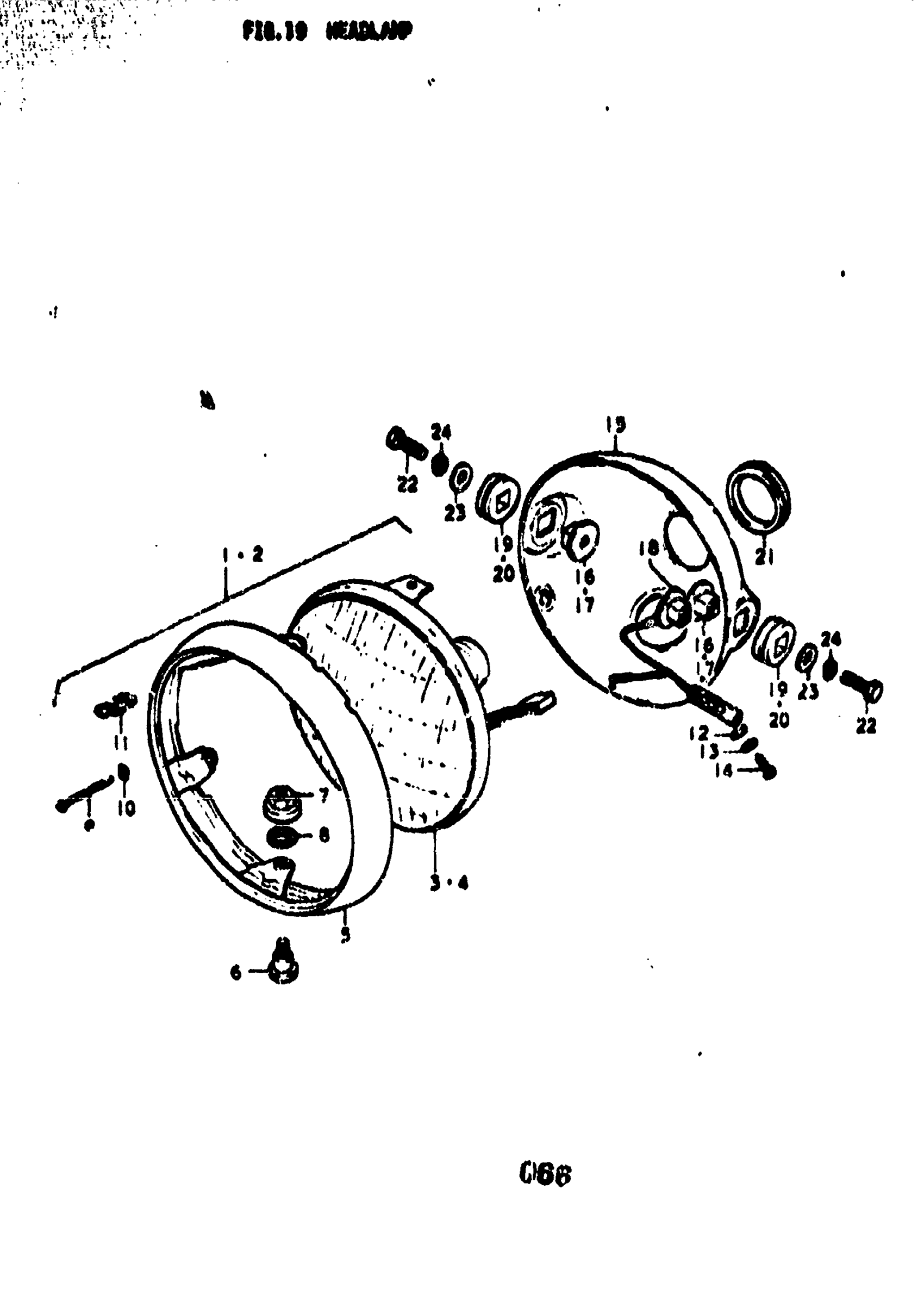

Suzuki TC100 (1977) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | K,L,M; 6V, 25/25W

35100-25611

Unavailable

2

HEADLAMP ASSY | A,B; 6V, 30/50W; Includes Item(s) 3 - 11

35100-25612

Unavailable

3

UNIT, HEADLAMP | K,L,M

35121-25611

Unavailable

4

UNIT,HEADLAMP | A,B This part replaces 35121-25612.

35121-256V0

Unavailable

5

RIN | K,L,A,B

35111-25611

Unavailable

6

SCREW,HEAD LAMP This part replaces 35136-25611.

35136-35400

$4.58

7

NUT This part replaces 35135-25611.

08316-1005A

$2.19

8

SPACER

35133-25611

Unavailable

9

SCREW This part replaces 35151-27620.

35151-06020

Unavailable

10

NUT

35155-01321

Unavailable

11

SPRING

35154-05610

Unavailable

12

WASHER This part replaces 08322-21048.

08322-01047

$1.86

13

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

14

SCREW This part replaces 02211-04128.

02112-0412A

$1.49

15

HOUSING, HEADLAMP | K,L

51810-26600

Unavailable

15

NO DESCRIPTION AVAILABLE | M This part replaces 51810-26000-126.

51810-26000-13L

Unavailable

15

NO DESCRIPTION AVAILABLE | A,B This part replaces 51810-26000-291.

51810-26000-13L

Unavailable

16

SPACER,HEADLAMP | K,L,M This part replaces 51821-25300.

51821-36210

$6.07

17

SPACER | AB

51821-29002

Unavailable

18

SPACER, LH | B

51822-29001

Unavailable

19

CUSHION,HEADLAM | K,L,M This part replaces 51827-27301.

51827-27303

$3.66

20

CUSHION | A,B

51827-29001

Unavailable

21

GROMMET | K,L,M,A; TO 51845-31031

51845-31030

Unavailable

21

GROMMET | B

51845-31031

$4.52

22

BOLT | K,L,M This part replaces 01221-08207.

01204-08207

$2.30

22

BOLT | A,B This part replaces 01221-08257.

01204-08257

$1.96

23

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

$2.13

24

.LOCK WASHER | M,A,B This part replaces 08321-21088.

08321-01087

$2.13
