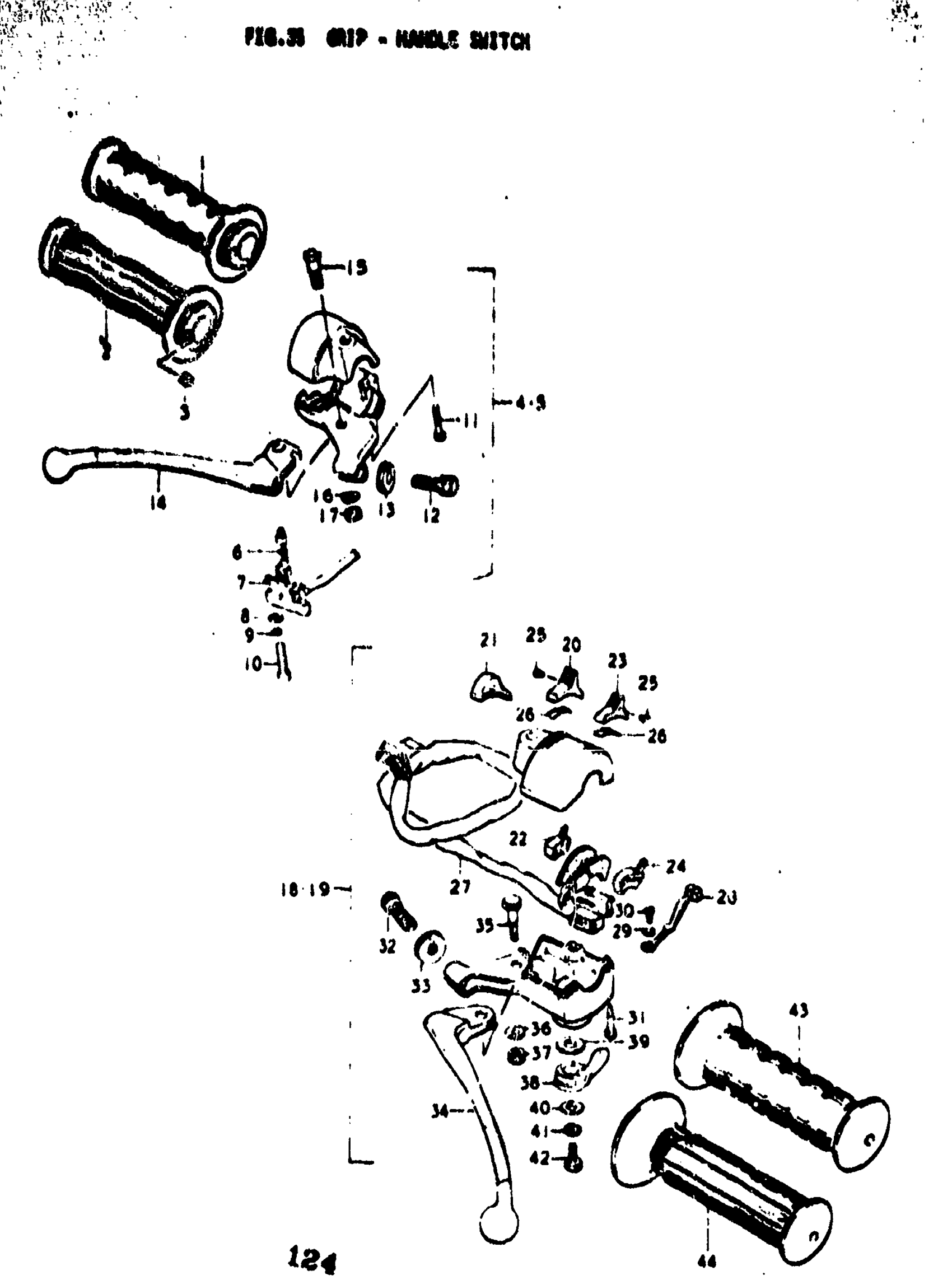

Suzuki TC100 (1977) GRIP - HANDLE SWITCH Diagram

#

Description
Price

1

GRIP THROTTLE | K,L,M This part replaces 57110-25311.

57110-25601

Unavailable

2

GRIP THROTTLE | A,B This part replaces 57110-25600.

57110-25601

Unavailable

3

PIECE, AND

58631-07010

$3.56

4

NO DESCRIPTION AVAILABLE | K,L; TO 57500-25412 This part replaces 57500-25610.

57500-25613

Unavailable

5

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 6 - 17 This part replaces 57300-25620.

57300-25621

Unavailable

6

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

7

WIRING HARNESS | K,L

57470-25610

Unavailable

8

WASHER This part replaces 08322-21038.

08322-01037

$1.93

9

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

11

SCREW This part replaces 02111-05257.

02112-05257

$1.49

12

ADJUSTER, CABLE | K; TO 57441-11010

57441-26010

$4.48

12

ADJUSTER, CABLE | L,M,A,B

57441-11010

$5.62

13

NUT

57442-11010

$2.79

14

LEVER, BRAKE This part replaces 57420-33010.

57420-18602

Unavailable

15

BOLT, PIVOT

57431-25310

Unavailable

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

.NUT This part replaces 08311-11068.

08310-00067

$2.13

18

NO DESCRIPTION AVAILABLE | K This part replaces 57500-25610.

57500-25613

Unavailable

19

SWITCH ASSY, LH | L; TO 57500-25612

57500-25611

Unavailable

19

NO DESCRIPTION AVAILABLE | M This part replaces 57500-25612.

57500-25613

Unavailable

19

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 20 - 42 This part replaces 57500-25620.

57500-25622

Unavailable

20

KNOB, SWITCH UPPER (1) | K,L; TO 57712-25612

57712-33010

Unavailable

20

KNOB,HANDLE SWI | M; OPTA,B; OPT This part replaces 57712-33011.

57712-33012

$6.17

21

KNOB, STOP | A,B

57718-36630

Unavailable

22

SLIDING BLOCK, LIGHTING | L,M,A,B

57730-25611

Unavailable

23

KNOB, LIGHTING This part replaces 57713-33010.

57713-33011

$5.24

24

SLIDING BLOCK, DIMMER | L,M,A,B

57530-25311

Unavailable

25

SCREW This part replaces 02121-03068.

02122-03067

$1.80

26

PLATE, KNOB | L,M,A,BA,B

57714-33010

$3.25

27

WIRING HARNESS | K

57540-25610

Unavailable

28

KNOB, SWITCH LOWER | K,L,M,A

57650-25610

Unavailable

28

NO DESCRIPTION AVAILABLE | B This part replaces 57651-25611.

57651-25612

Unavailable

29

WASHER, ADJUSTING

57581-25610

Unavailable

30

SCREW This part replaces 02111-03067.

02112-0306B

$1.59

31

SCREW This part replaces 02111-05207.

02112-05207

$1.97

32

ADJUSTER, CABLE | K; TO 57441-11010

57441-26010

$4.48

32

ADJUSTER, CABLE | L,M,A,B

57441-11010

$5.62

33

NUT

57442-11010

$2.79

34

LEVER, CLUTCH | FROM 57620-18011 This part replaces 57620-31010.

57620-45010

Unavailable

35

BOLT, PLVOT

57431-25310

Unavailable

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

.NUT This part replaces 08311-11068.

08310-00067

$2.13

38

LEVER, STARTER | K; TO 58731-25611 This part replaces 58721-03011.

58721-25611

Unavailable

38

LEVER, STARTER | L,M,A,B

58721-25611

Unavailable

39

ADJUSTER WASHER

58722-03010

$3.71

40

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

$2.30

41

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

42

BOLT This part replaces 01112-06128.

01500-06127

$1.97

43

GRIP, LH | K,L,M

57211-20601

$11.75

44

GRIP,L | A,B This part replaces 57211-25600.

57211-45021

$11.44
