1977 Suzuki TC100 Gear Shifting Diagram

← All diagrams

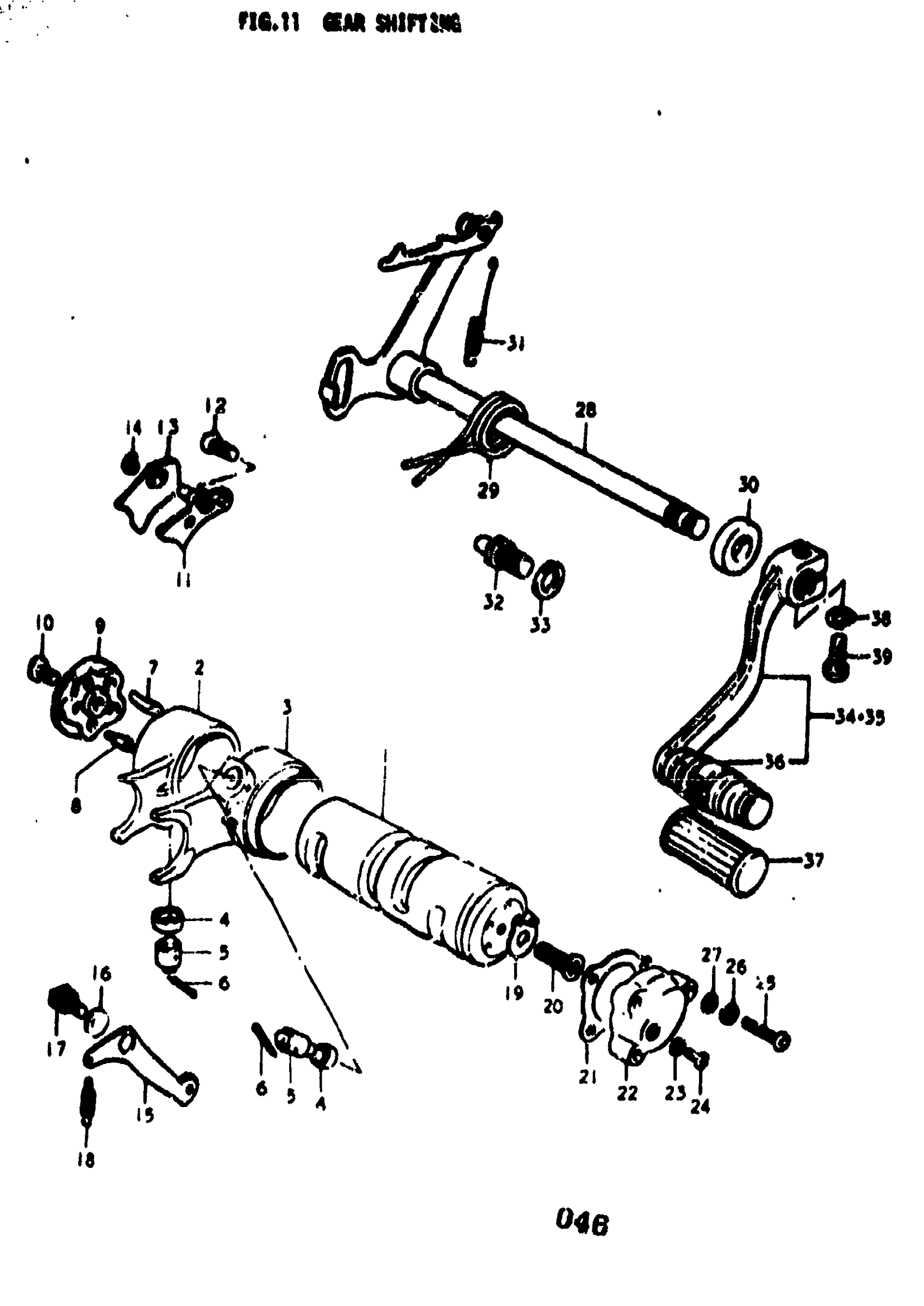

Find the part on the Gear Shifting diagram for your 1977 Suzuki TC100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC100 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, GEAR SHIFTING | K,L; TO 25311-25101

25311-25100

—
Out of stock

1

CAM, GEAR SHIFTING | M,A,B

25311-25101

—
Out of stock

2

FORK, LOW SPEED GEAR SHIFTING | K,L; TO 25211-25101

25211-25100

—
Out of stock

2

FORK, LOW SPEED GEAR SHIFTING | M,A,B

25211-25101

1
Out of stock

3

FORK, HIGH SPEED GEAR SHIFTING

25221-12100

1
Out of stock

4

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

2
Out of stock

5

PIN, FORK GUIDE | K,L,M

09209-10003

—
Out of stock

5

PIN, FORK GUIDE | A,B

09209-10002

2
Out of stock

6

2

$1.31

In stock

7

PIN, CAM DRIVE

09261-04003

3
Out of stock

8

PIN, CAM STOPPER | K,L; TO 09209-04012

09209-04006

—
Out of stock

8

PIN, CAM STOPPER | M,A,B

09209-04012

1
Out of stock

9

PLATE, CAM STOPPER

25380-25030

1
Out of stock

10

SCREW This part replaces 02122-06208.

02122-0620A

1
Out of stock

11

GUIDE, CAM

25340-12101

1
Out of stock

12

SCREW This part replaces 02122-06168.

02122-06167

2
Out of stock

13

PAWL, CAM STOPPER | K,L,M,A This part replaces 25370-12100.

25370-12101

1
Out of stock

13

PAWL, CAM STOPPER | B

25370-12101

1
Out of stock

14

E RING This part replaces 08332-11038.

08332-1103A

1
Out of stock

15

STOPPER, CAM

25350-12101

1
Out of stock

16

WASHER | 6.5x16x2.3

09160-06022

1
Out of stock

17

BOLT

09111-06003

1
Out of stock

18

SPRING

09443-07003

1
Out of stock

19

CONTACT, SWITCH | K,L,M This part replaces 37711-05100.

37711-05101

1
Out of stock

19

CONTACT, SWITCH | A,B

37711-05101

1
Out of stock

20

SCREW This part replaces 02122-06128.

02122-06127

1
Out of stock

21

GASKET, SWITCH

37712-01000

1
Out of stock

22

BODY,CHANGE SWI This part replaces 37721-05100.

37721-05101

1
Out of stock

23

WASHER | 3.3x8x0.5 This part replaces 08322-21038.

08322-01037

1
Out of stock

24

SCREW This part replaces 02111-03048.

02112-03047

1
Out of stock

25

SCREW This part replaces 02111-04208.

02112-0420A

3
Out of stock

26

LOCK WASHER This part replaces 08321-21048.

08321-0104A

3
Out of stock

27

WASHER This part replaces 08322-21048.

08322-01047

3
Out of stock

28

SHAFT, GEAR SHIFTING

25510-25000

1
Out of stock

29

SPRING | K,L; TO 09444-26006M,A,B

09444-26005

1
Out of stock

30

OIL SEAL (12X22X9) | 12x22x1 This part replaces 09285-12002.

09285-12006

1
Out of stock

31

SPRING

09443-06008

1
Out of stock

32

STOPPER, ARM

25671-19000

1
Out of stock

33

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

34

LEVER ASSY, GEAR SHIFTING | M

25600-05104

1
Out of stock

34

LEVER, GEAR SHI | K,L; TO 25600-25103 This part replaces 25600-25102.

25600-39101

1
Out of stock

34

LEVER, GEAR SHI | A This part replaces 25600-25103.

25600-39101

1
Out of stock

35

LEVER, GEAR SHI | B; Includes Item(s) 36 - 37 This part replaces 25600-25600.

25600-39101

1
Out of stock

36

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

37

.RUBBER,GEAR SHIFT PEDAL | K This part replaces 25652-03201.

25652-16510

1
Out of stock

39

BOLT This part replaces 01112-06208.

01500-06207

1
Out of stock
