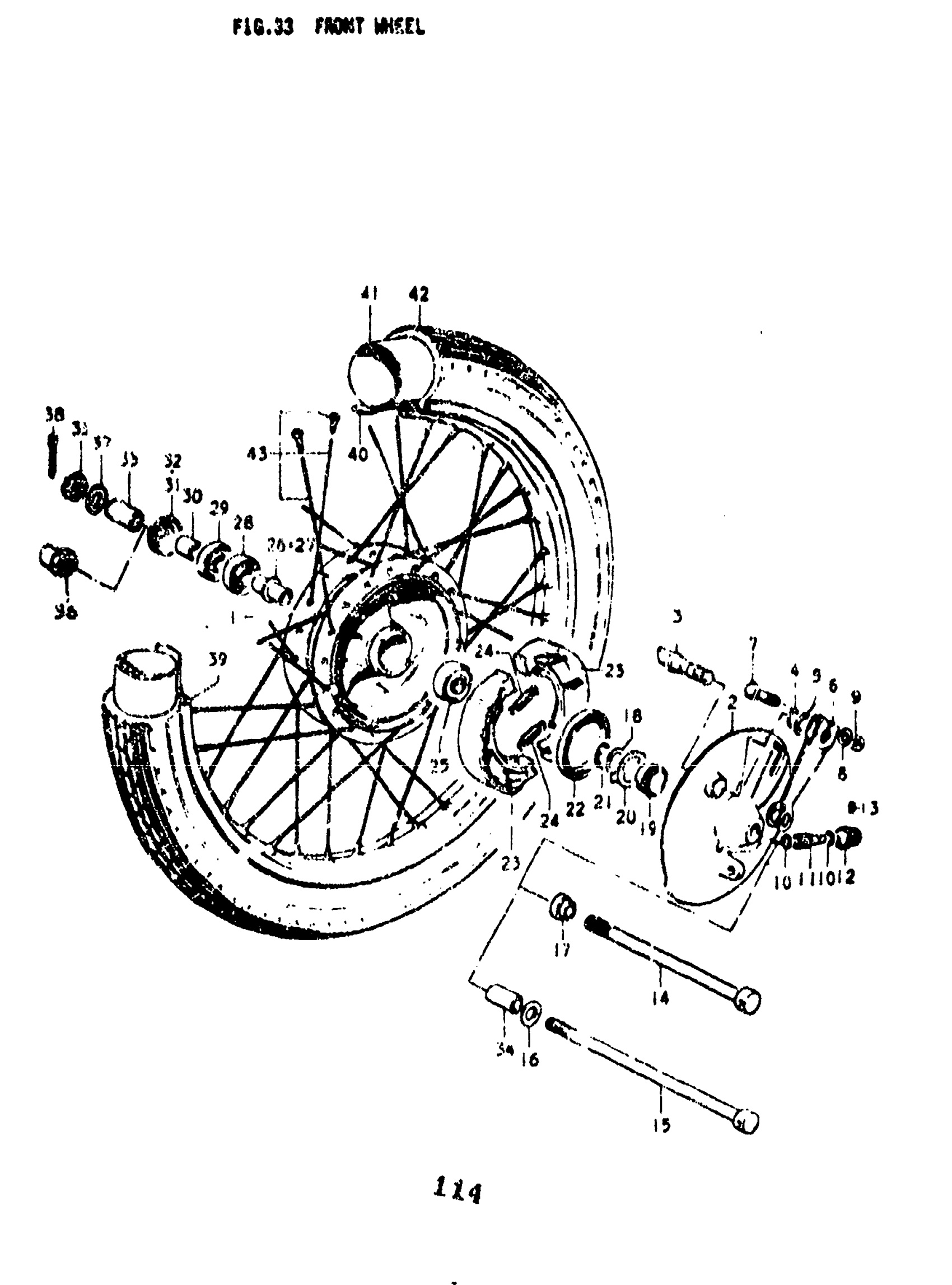

Suzuki TC100 (1977) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB | K; TO 54110-28001

54110-28000

Unavailable

1

NO DESCRIPTION AVAILABLE | L,M This part replaces 54110-28001.

54110-28003

Unavailable

1

HUB, FRONT WHEE | A This part replaces 54110-07001.

54110-07003

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 54110-16501.

54110-16502

Unavailable

2

PANEL, FRONT HUB | K

54210-28000

Unavailable

2

PANEL, FRONT HUB | L,M

54210-27401

Unavailable

2

PANEL, FRONT HUB | A

54210-28400

Unavailable

2

PANEL, FRONT HUB | B

54210-28620

Unavailable

3

SHAFT, BRAKE CAM | K,L,M; FROM 54441-28000

54441-28001

Unavailable

3

SHAFT, BRAKE CAM | A,B

54441-01002

$18.80

4

DUST SEAL, BRAKE CAM

09280-12001

$2.90

5

WASHER | 12.5x20x1

09160-12011

$1.54

6

LEVER, BRAKE CAM | K,L; TO 54451-03002

54451-03602

Unavailable

6

LEVER, BRAKE CAM | M

54451-03002

$16.87

6

LEVER, BRAKE CAM | A,B

54451-28400

Unavailable

7

BOLT, ADJUSTER | 6x30 This part replaces 09100-06050.

09100-06150

$2.30

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

11

NO DESCRIPTION AVAILABLE This part replaces 54621-28000.

54621-28001

Unavailable

12

BUSHING, DRIVE GEAR OUTER

54632-01001

$12.80

13

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

14

NO DESCRIPTION AVAILABLE | K This part replaces 54711-07611.

54711-07612

Unavailable

14

AXLE, FRONT | L

54711-25501

Unavailable

14

AXLE, FRONT | M This part replaces 54711-16502.

54711-16504

Unavailable

15

AXLE, FRONT | A,B

54711-28303

Unavailable

16

WASHER | M,A,B This part replaces 08322-21128.

08322-01127

$1.84

17

SPACER, FRONT AXLE L | L

54751-25500

Unavailable

18

WASHER | @ 5x24x1

09160-18002

$2.38

19

NO DESCRIPTION AVAILABLE | K,L,M,A This part replaces 54611-28000.

54611-28002

Unavailable

19

NO DESCRIPTION AVAILABLE | B This part replaces 54611-28001.

54611-28002

Unavailable

20

DRIVER, DRIVEN GEAR

54661-07000

$4.52

21

CIRCLIP

08331-11189

Unavailable

22

OIL SEAL | K,L,M This part replaces 09285-43001.

09283-43004

$14.03

22

SEAL | A,B This part replaces 09285-48001.

09285-48002

$6.10

23

SHOE/SPRING SET | K,L; TO 54410-01005 This part replaces 54410-01004.

54400-35860

$36.32

23

SHOE/SPRING SET | MA,B This part replaces 54410-01005.

54400-35860

$36.32

24

SPRING This part replaces 09443-07001.

09443-07025

$2.08

25

BEARING | K,L,M This part replaces 08143-62010.

08143-6201B

$10.80

25

B1 12X37X12 BEA | A,B This part replaces 08143-63010.

08143-6301B

$19.20

26

SPACER (12.5X19X52) | K,L,M; 12.6x10x52 This part replaces 09180-12041.

09180-12144

$10.30

27

SPACER, FRONT HUB BEARING | A,B

54730-07000

Unavailable

28

BEARING | K,L,M This part replaces 08113-62010.

08113-6201B

$10.15

28

BEARING | A,B

08113-63010

$19.57

29

SEAL,OIL (18X32X7) | K,M This part replaces 09284-18002.

09285-18002

$5.39

29

SEAL,OIL(17X38X | A,B This part replaces 09284-18001.

09284-18006

$5.10

30

SPACER, FRONT AXLE | K,A,B; 12x18x16.4

09180-12040

$8.35

30

SPACER, FRONT AXLE | L,M; 12x18x10.4

09180-12052

Unavailable

31

COVER, DUST SEAL | K; TO 54892-28001

54892-28000

Unavailable

31

COVER, DUST SEAL | L,M

54892-25500

Unavailable

32

COVER, DUST SEAL | A,B

54892-28400

Unavailable

33

SPACER, FRONT AXLE RH | A,B; 12x20x44

09180-12061

Unavailable

34

SPACER, FRONT AXLE | M,A,B; 12x20x41

09180-12062

Unavailable

35

NUT | K,M,A,B This part replaces 08314-31128.

08314-3112A

$2.41

36

NUT | L

54721-25500

Unavailable

37

WASHER | M,A,B This part replaces 08322-21128.

08322-01127

$1.84

38

PIN | K,M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

39

RIM, WHEEL | K,L,M; 1.40x19

55311-17021

Unavailable

39

RIM, WHEEL | A,B

55311-17022

Unavailable

40

PROTECTOR, WHEEL INNER TUBE FRONT | 18x19 This part replaces 55261-29010.

55261-15020

$3.15

41

TUBE, INNER | 2.75-19

55200-29010

Unavailable

42

TIRE, FRONT | L,M,A,B; 2.75-19, OPT

55100-25600

Unavailable

42

TIRE, FRONT | L; 2.75-19, OPT

55100-25410

Unavailable

43

NO DESCRIPTION AVAILABLE | K,L,M This part replaces 55300-28806.

55320-28020

Unavailable

43

SPOKE SET | A,BA,B

55300-28840

Unavailable
